5.4 Monitoring the Switch’s Performance
5.4.1 Monitoring the Total Packet Activity
Use the following procedure to view the total activity of the packets on all the ports:
1. Select Device Activity>Total Packets.

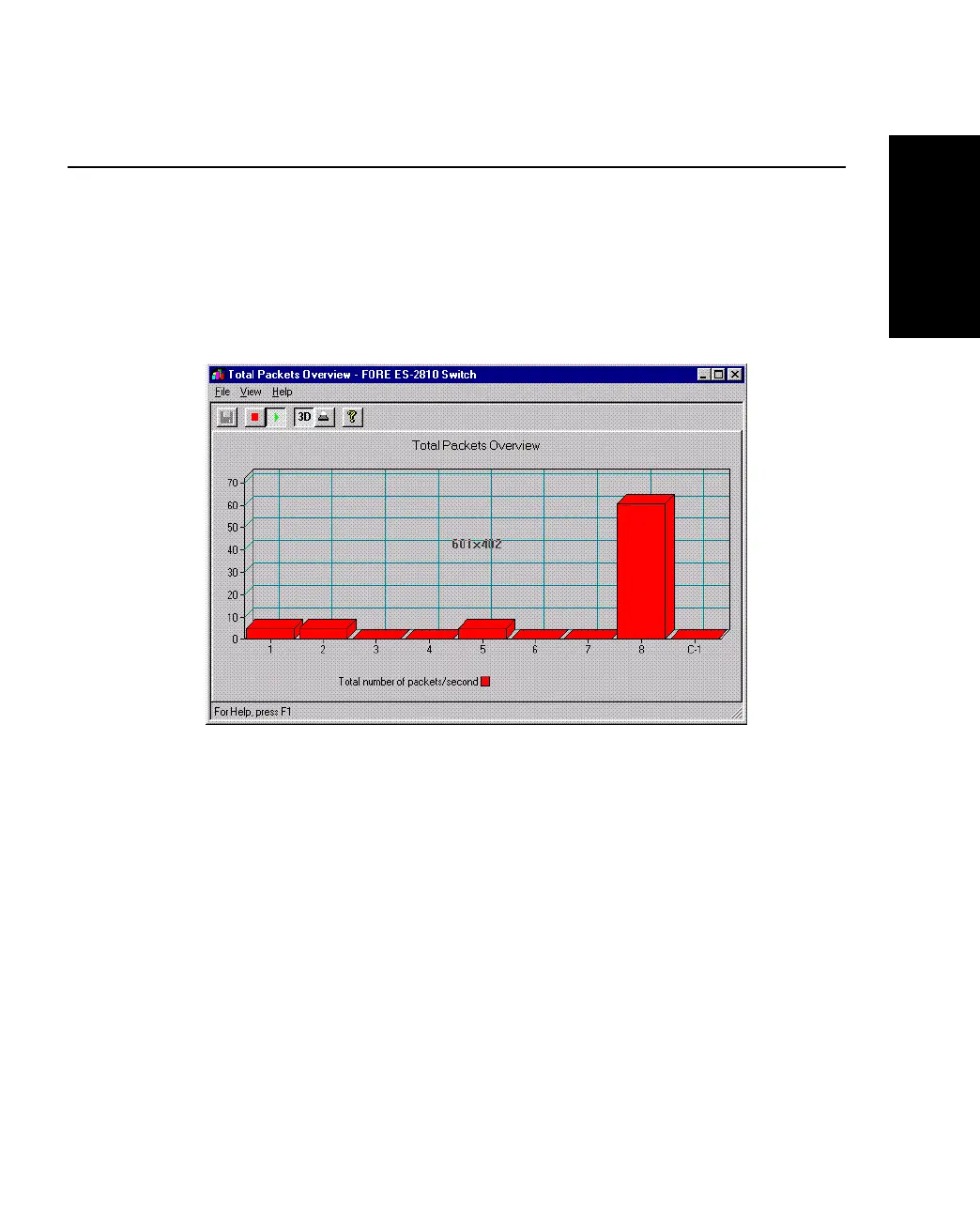

Figure 5.3 -
Total Packets View
Each column represents a port and its activity level.
2. To see the exact value, hold the mouse pointer over a port.
3. Click View and change the presentation style: 3D- to 2D-Graph, with or without a
peak value indicator and vertical to horizontal bars.
