5.6.2 Monitoring IntraStack Activity
Use the following procedure to view the total activity of the packets between the switches in
the stack, or across the Matrix Module:
1. Right-click the stack border and select IntraStack Traffic.

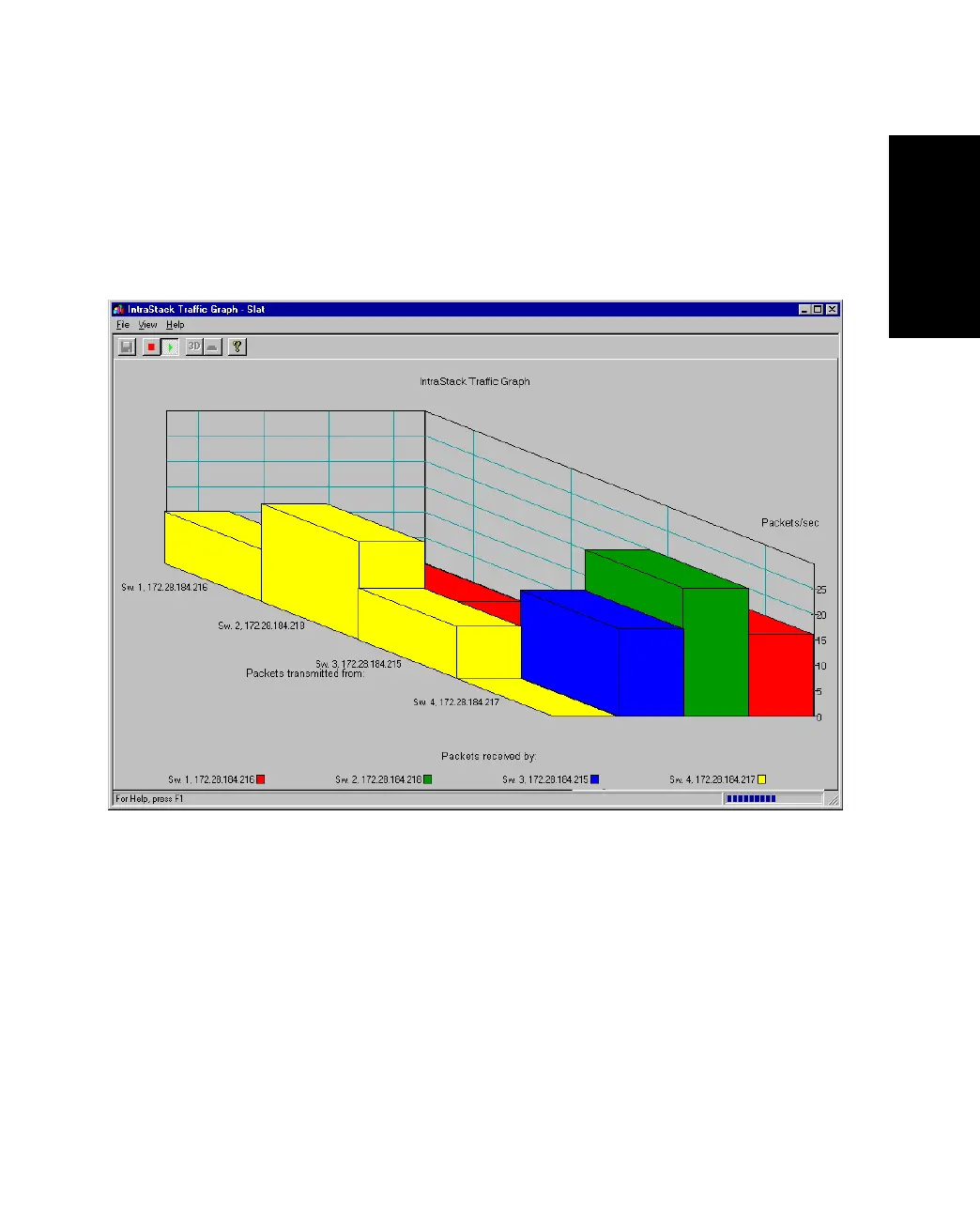

Figure 5.8 -
IntraStack Traffic Graph Dialog Box
Each column represents a Matrix Module port and its activity level.
2. To see the exact value, hold the mouse pointer over a port.
