94 Upgrade and Maintenance Manual
TX1310 M1
Hard disk drives

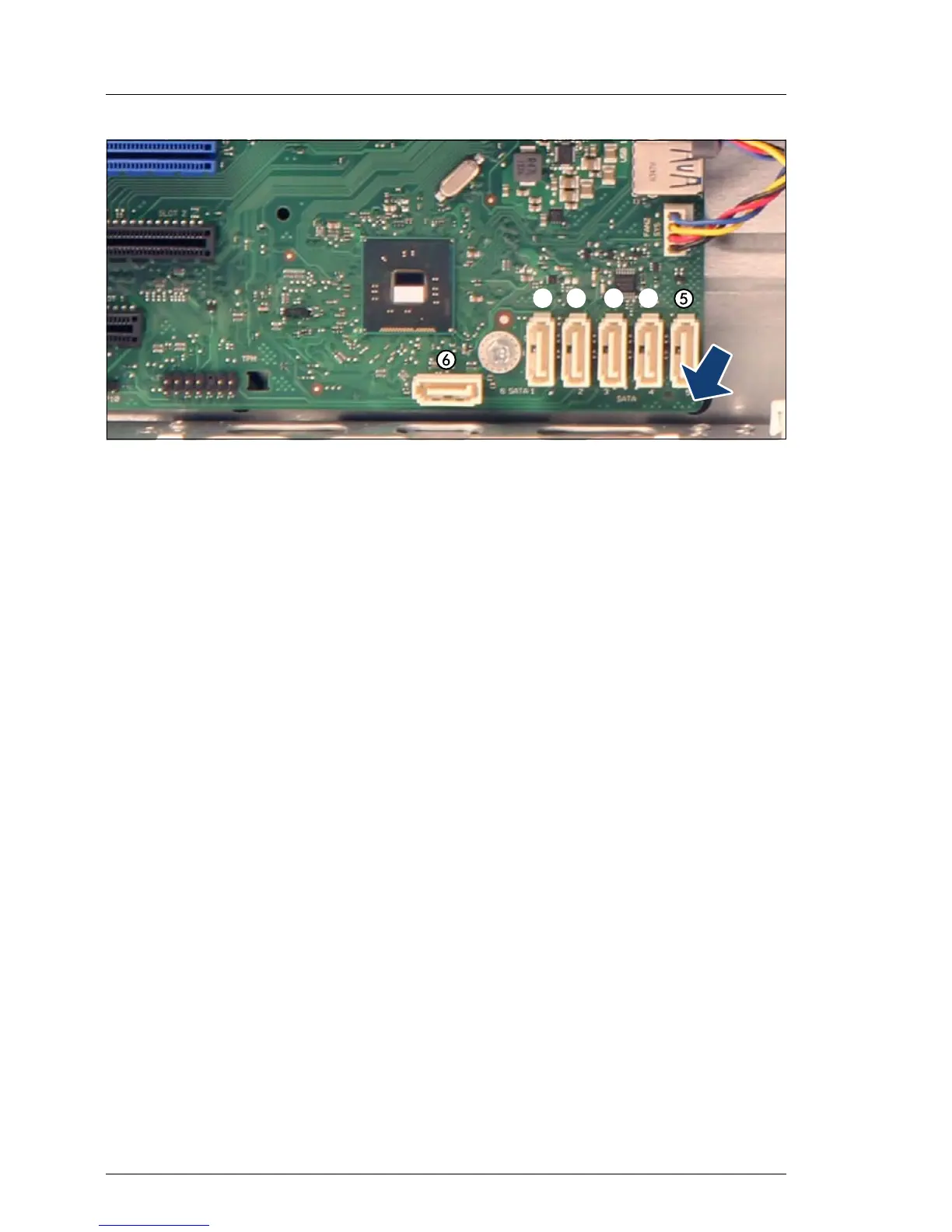

Figure 42: Disconnecting SATA cables from the system board
Ê Disconnect the corresponding SATA cable(s) from the system board.
I Push the edge (see arrow) of the system board with the finger to
avoid bending up the system board.
1 SATA cable to connector SATA1
2 SATA cable to connector SATA2
3 SATA cable to connector SATA3
4 SATA cable to connector SATA4
5 ODD cable to connector SATA5
6 free
For further cabling information, please refer to section "Cables" on
page 217.
