TX1310 M1
Upgrade and Maintenance Manual 95
Hard disk drives

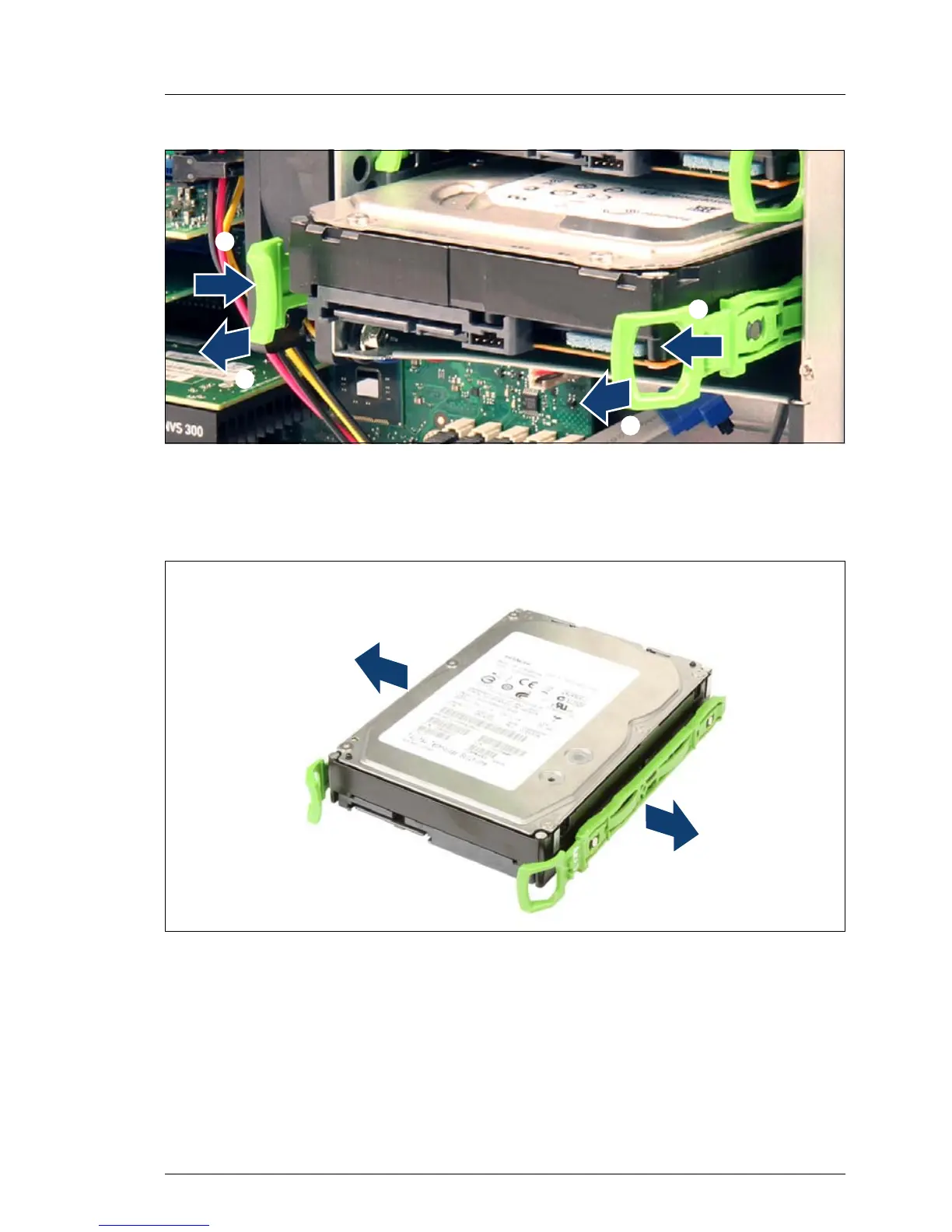

Figure 43: Removing a 3.5-inch HDD
Ê Press the green handles of the Easyclick rails inwards (1) to release the
locking mechanism and pull the hard disk drive completely out of its bay (2).
Figure 44: Detaching the Easyclick rails
Ê Detach the Easyclick rails from the hard disk drive.
햲
햲
햳
햳
