Chapter 11: Quality Assurance Process and Maintenance
Definium 5000 X-Ray System 5197809-1EN Rev. 4 (13 February 2008) 11-5
Operator Manual © 2008 General Electric Company. All rights reserved.
Failed Detector Check
If the system fails the Detector Check (Figure 11-7), call to schedule service. The system is operational,
although inspection and potential calibration are needed.
WARNING: Image quality may be degraded if you continue to use a detector that has failed the
Detector Check tests.

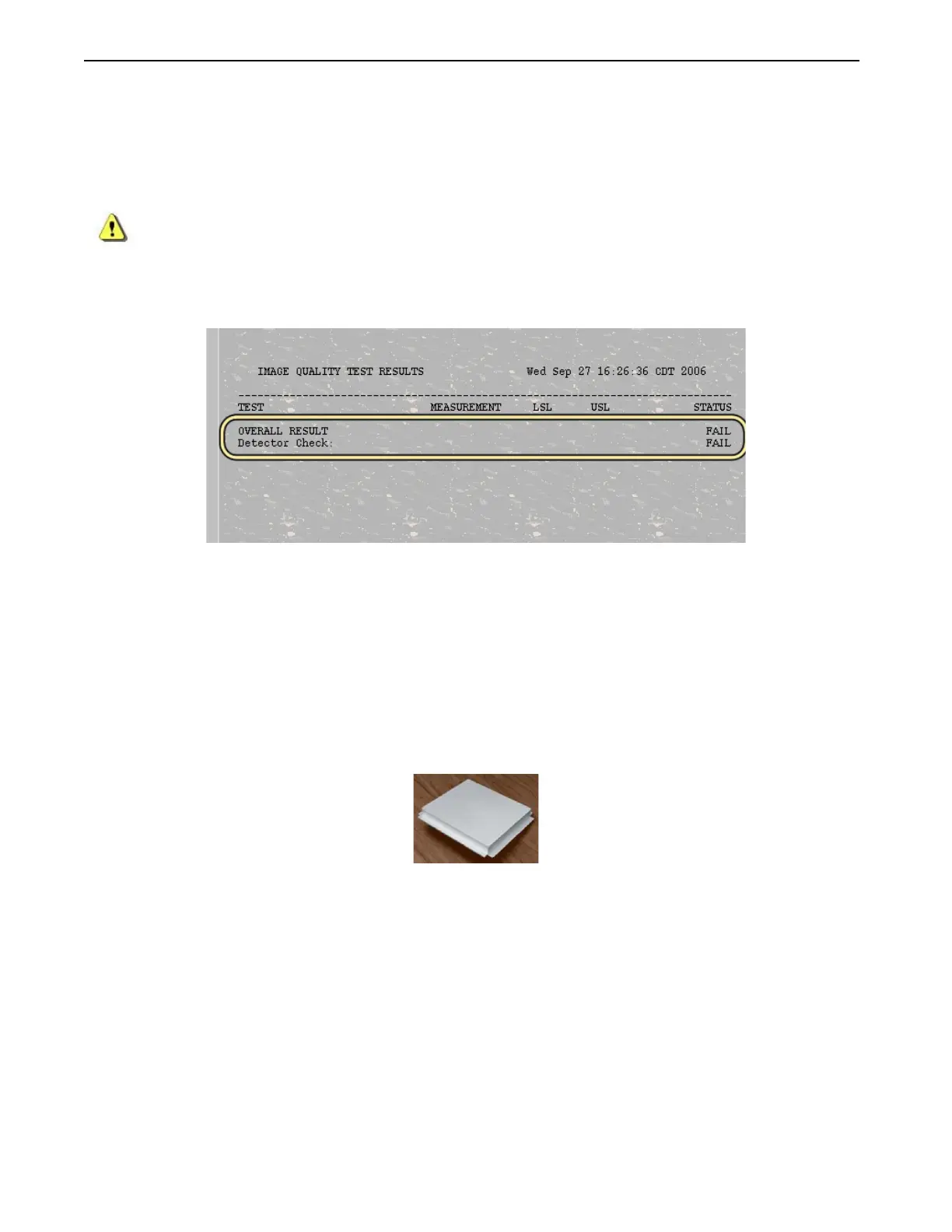

Figure 11-7 Failed Detector Check results
Perform QAP
QAP involves tests requiring exposures with the flat field phantom. The Definium 5000 QAP kit includes a
flat-field phantom (Figure 11-8) sized to fit the collimator.
QAP tests require that the system be on and idle for at least 10 minutes.
Figure 11-8 Flat-field phantom
Follow this process to perform a QAP test.
1. Press the [QAP] button at the bottom of the Worklist or Acquisition screen.
The Image Quality screen appears.
