8-28 Section 8-5 - BEP HDD (Hard Disk Drive) Replacement Procedures
8-5-4 BEP 1 HDD Replacement (2366650) (cont’d)
5.) Disconnect the Power and IDE Cables from the back of the HDD.
6.) Remove the four screws that attach the HDD to the tray.

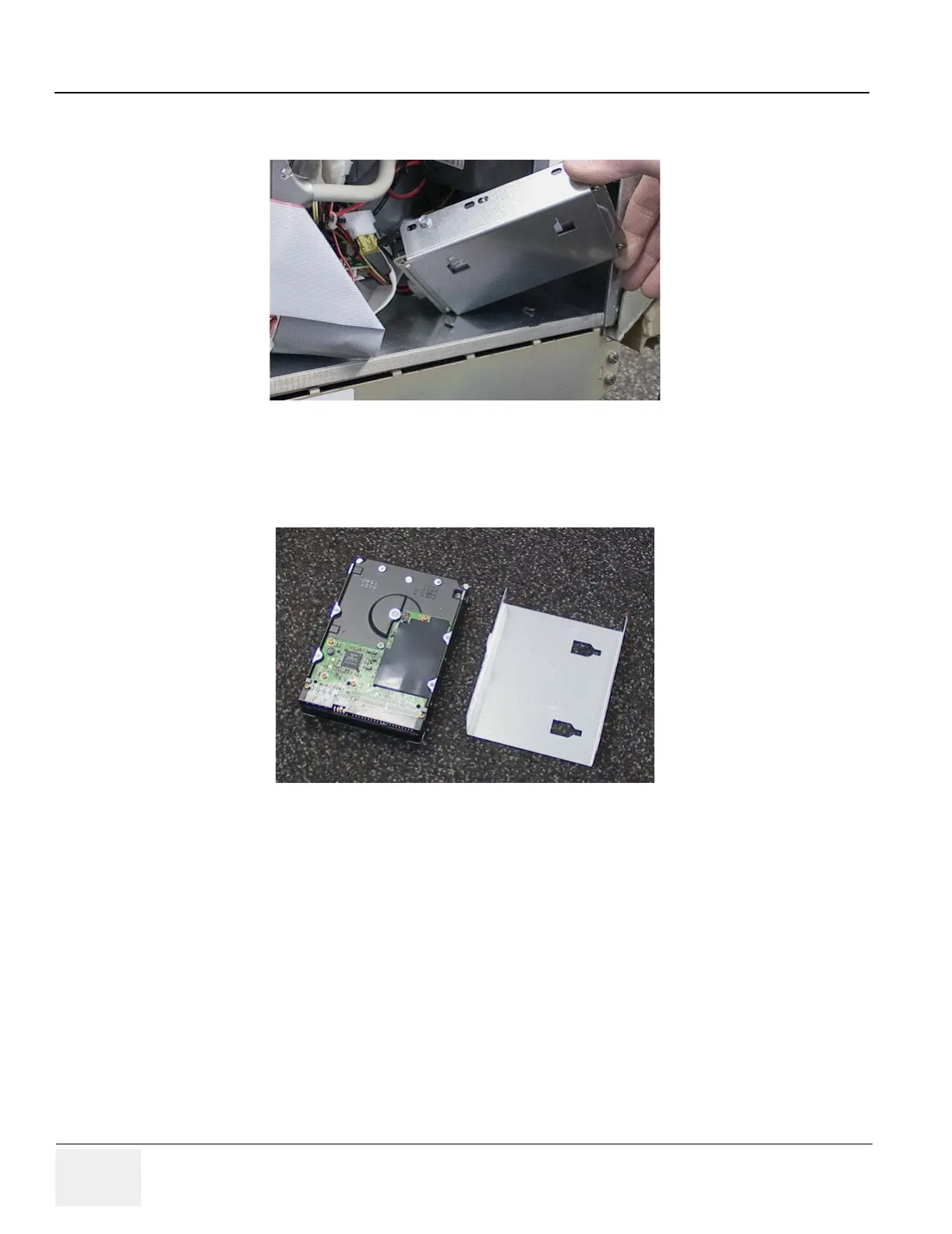

Figure 8-23 Lift Up HDD Assembly
Figure 8-24 HDD and Tray
