Chapter 8 Replacement Procedures 8-27
8-5-4 BEP 1 HDD Replacement (2366650) (cont’d)
NOTE: This is a little more difficult if the BEP has the 3D Option installed with the 3D card extending
over the HDD.
3.) Grab a hold of the HDD on each side and firmly pull towards you (Figure 8-22).
4.) The HDD tray will be released from the tabs holding it to the BEP chassis (Figure 8-23).

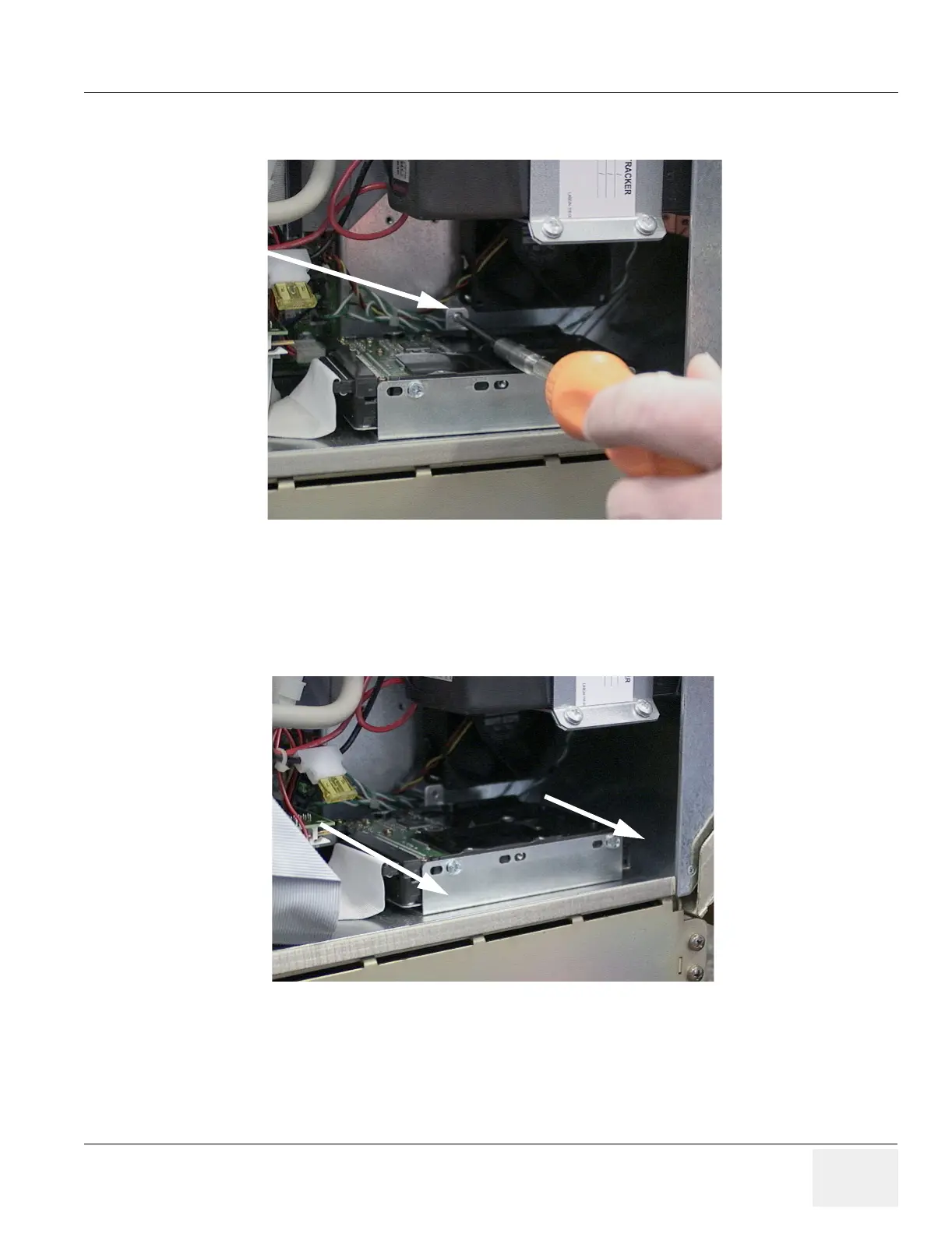

Figure 8-21 Loosen HDD Assembly
Figure 8-22 Pull HDD Assembly
