GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-32 Section 8-5 - BEP HDD (Hard Disk Drive) Replacement Procedures
8-5-5 BEP 2.X HDD Replacement (2348186-31) (cont’d)
9.) Secure the assembly with the 5.5 mm nuts removed in step 3.
10.)Attach the Power and IDE to the back of the HDD. Pay attention to the orientation of the guide pin
on the IDE Cable connector and the missing pin on the IDE connection of the HDD.

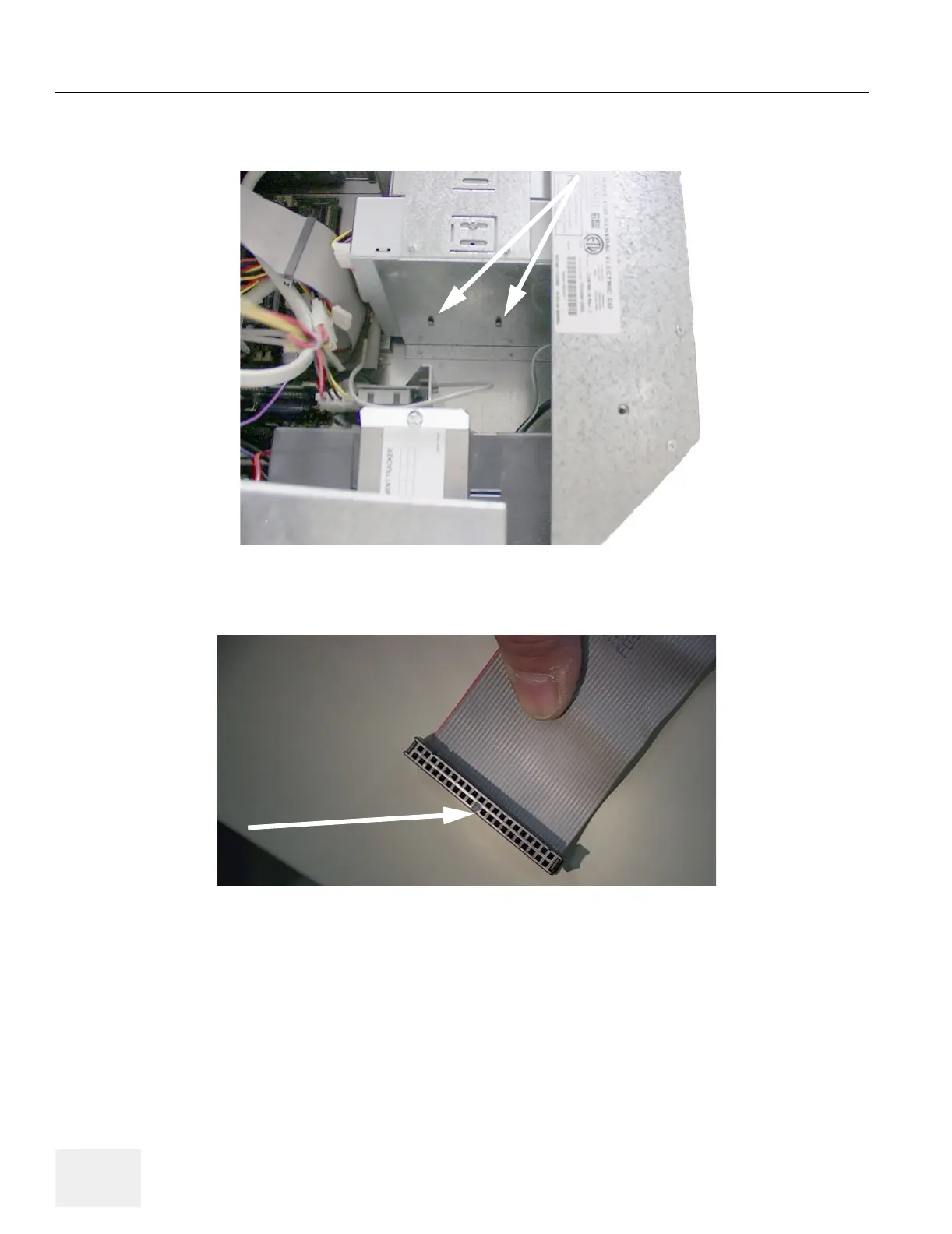

Figure 8-31 HDD Mounting Tabs
Figure 8-32 IDE Ribbon Connector
IDE Guide Pin
To Next Page
