GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-36 Section 8-6 - BEP CD-RW Drive Replacement Procedure (BEP 2.x and above only)
8-6-4 CD-RW Drive Removal Procedure (cont’d)
5.) Remove the two screws in the front of the CD-RW drive as shown in Figure 8-35 on page 8-35 .
6.) Slide the CD-RW drive out the front of the BEP as shown in Figure 8-36 on page 8-36 .

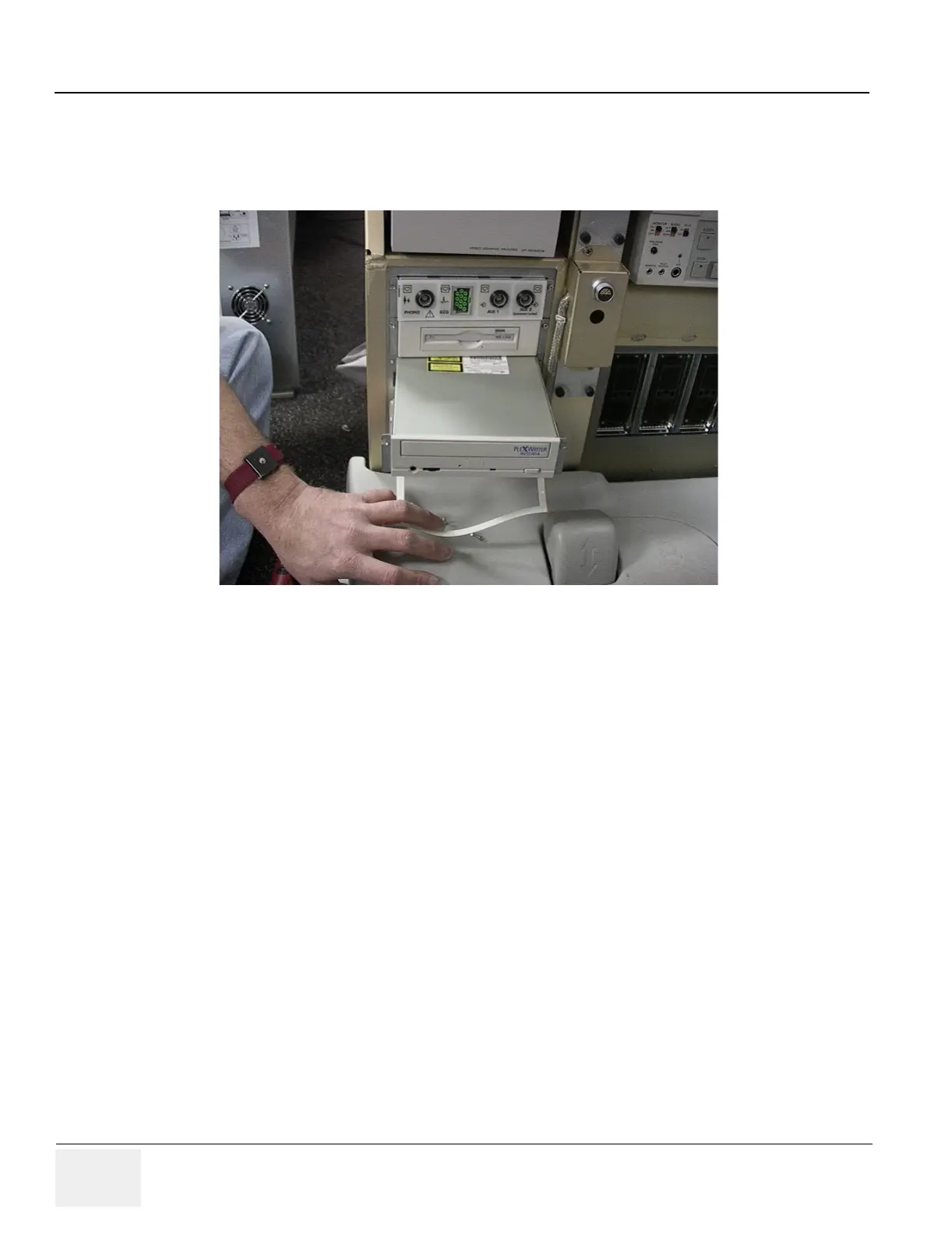

Figure 8-36 CD-RW Removal
