GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-47
8-8-4 Patient I/O Removal Procedure (cont’d)
4.) Peel back the adhesive trim as shown in Figure 8-51 on page 8-47 .

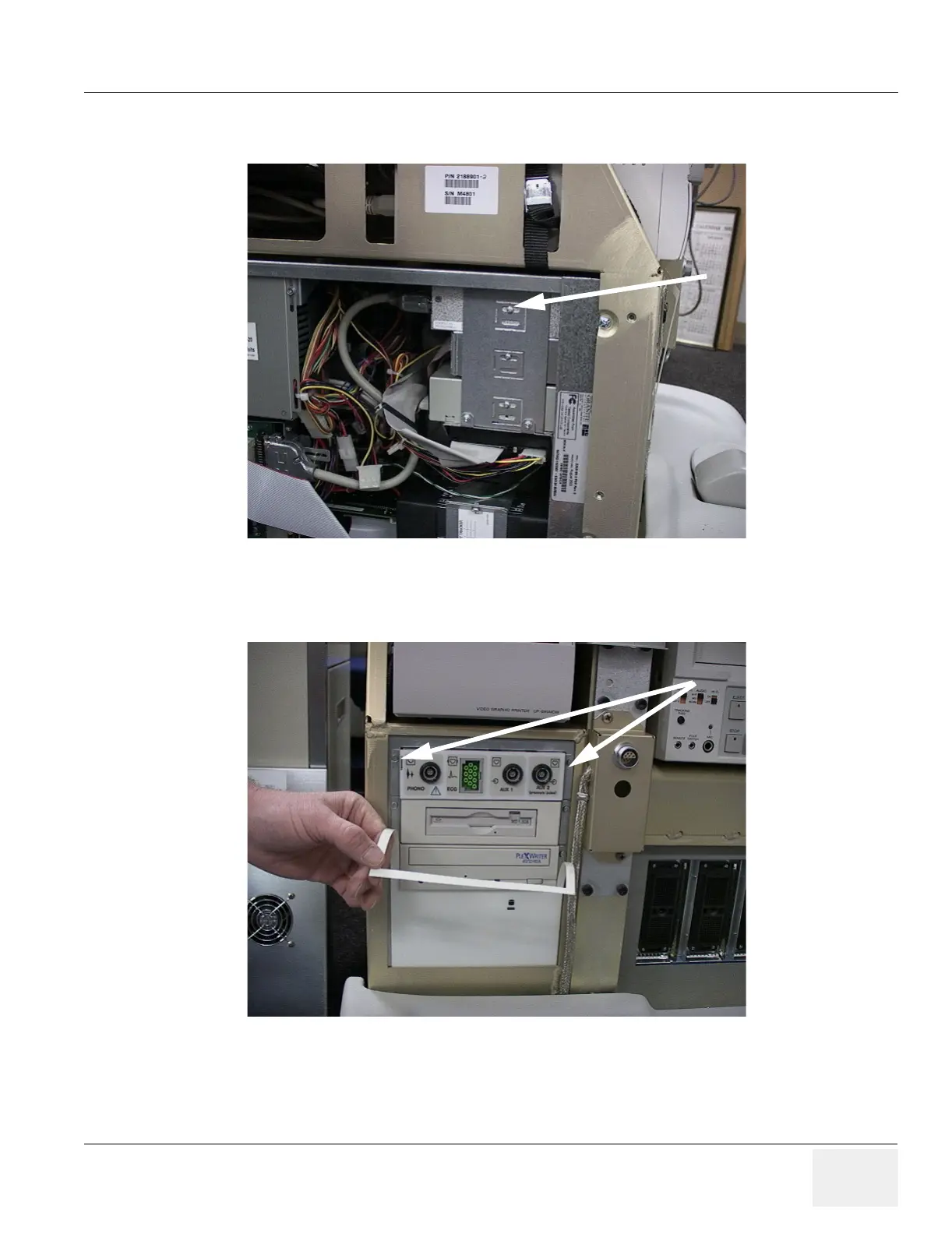

Figure 8-50 CD-RW Side Screw
Figure 8-51 BEP Front Adhesive Trim
