GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-117
8-29-4 A/N Keyboard Removal (cont’d)
8.) Install the removed keys back onto the removed keyboard. If a key does not seem to seat down
fully, it is probably because the plunger is not pressed onto the keytop all the way.

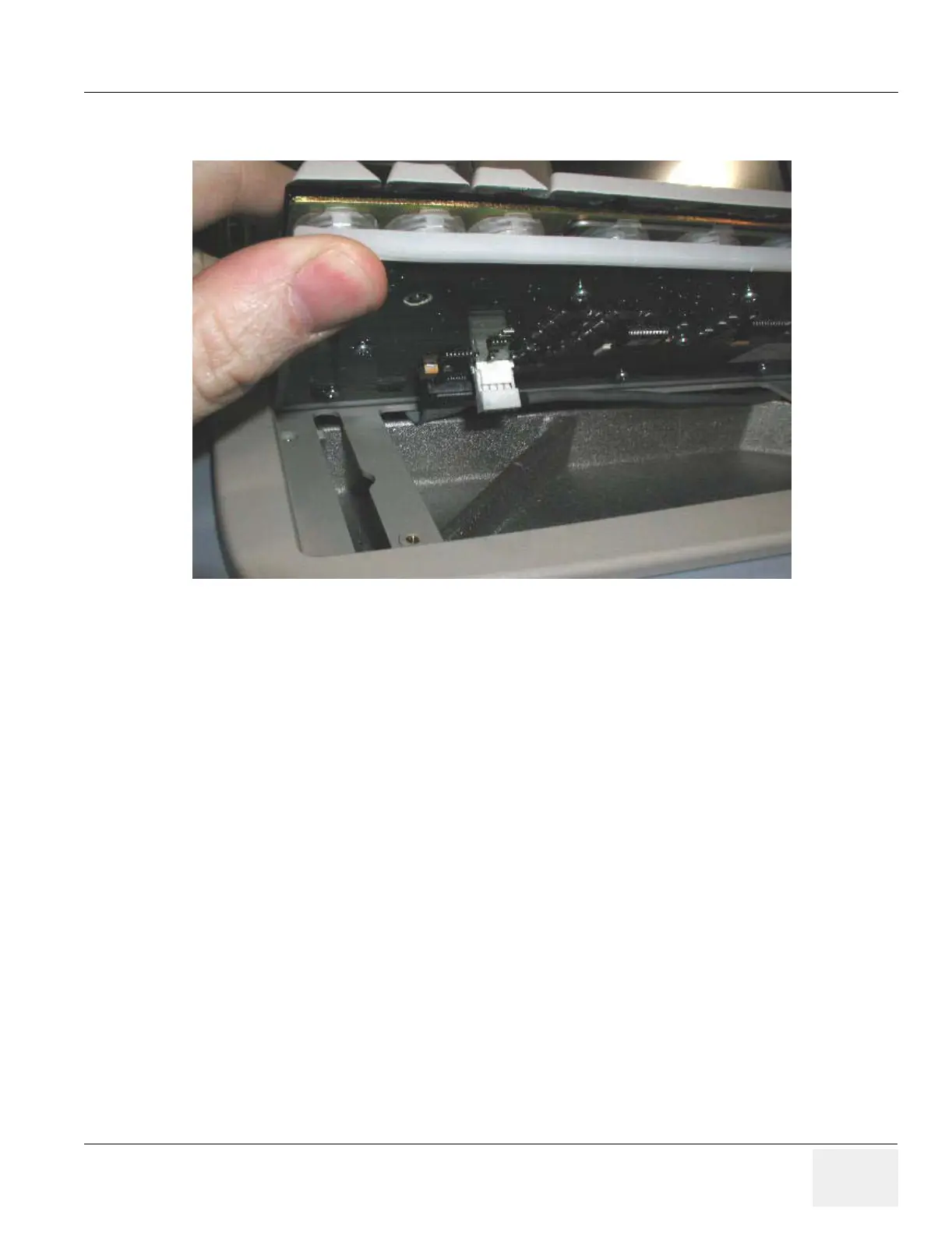

Figure 8-127 Interconnect Cable Locations
To Next Page
