A•26 Appendix
93 Chorus depth 93 Chorus depth (send)
98,99 NRPN 98,99 NRPN
100,101 RPN 100,101 RPN
Cntrl 80 (ONE SHOT):
0†Fill>< 0 = Fill>< Off, 64 = Fill>< On
1†Fill< 1 = Fill< Off, 65 = Fill< On
2†Fill> 2 = Fill> Off, 66 = Fill> On
8†Intro
16†End
24-27†Variations 0-1-2-3
40†Key start
61†Rotary 1 slow/fast [GrpA] 61 = Rotary 1 Slow, 125 = Rotary Fast
62†Rotary 2 slow/fast [GrpB] 62 = Rotary 2 Slow, 126 = Rotary 2 Fast
64 Start/Stop
66,67†Tempo inc. dec.
68,69†Perf inc. dec.
Cntrl 81
OFF [0,63] ON[64,127]
0,1,2†Fill><-Fill<-Fill>
61†Rotary 1 (Off=slow) [GrpA]
62†Rotary 2 (Off=slow) [GrpB]
Program 0-127 0-127 0-127
Change True number *****
System Exclusive oo
System Song Position o o
Song Select o o
Common Tune o o
System Clock o o Start, Stop
Real Time Commands o o Continue
Aux Active sensing o o
Messages All Sound Off o o
Reset All Contr. o o
Local ON OFF o o
All Note Off o o
Notes †These messages are available on the Common channel only o: YES x: NO
(1) Vocal Processor Controllers
Mode 1 OMNI ON - POLY Mode 2 OMNI ON - MONO
Mode 3 OMNI OFF - POLY Mode 4 OMNI OFF - MONO
93 Chorus depth 93 Chorus depth (send)
98,99 NRPN 98,99 NRPN
100,101 RPN 100,101 RPN
Cntrl 80 (ONE SHOT):
0†Fill>< 0 = Fill>< Off, 64 = Fill>< On
1†Fill< 1 = Fill< Off, 65 = Fill< On
2†Fill> 2 = Fill> Off, 66 = Fill> On
8†Intro
16†End
24-27†Variations 0-1-2-3
40†Key start
61†Rotary 1 slow/fast [GrpA] 61 = Rotary 1 Slow, 125 = Rotary Fast
62†Rotary 2 slow/fast [GrpB] 62 = Rotary 2 Slow, 126 = Rotary 2 Fast
64 Start/Stop
66,67†Tempo inc. dec.
68,69†Perf inc. dec.
Cntrl 81
OFF [0,63] ON[64,127]
0,1,2†Fill><-Fill<-Fill>
61†Rotary 1 (Off=slow) [GrpA]
62†Rotary 2 (Off=slow) [GrpB]
Program 0-127 0-127 0-127
Change True number *****
System Exclusive oo
System Song Position o o
Song Select o o
Common Tune o o
System Clock o o Start, Stop
Real Time Commands o o Continue
Aux Active sensing o o
Messages All Sound Off o o
Reset All Contr. o o
Local ON OFF o o
All Note Off o o
Notes †These messages are available on the Common channel only o: YES x: NO
(1) Vocal Processor Controllers
Mode 1 OMNI ON - POLY Mode 2 OMNI ON - MONO
Mode 3 OMNI OFF - POLY Mode 4 OMNI OFF - MONO
â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹
Display 1•3
â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹
Display 1•3

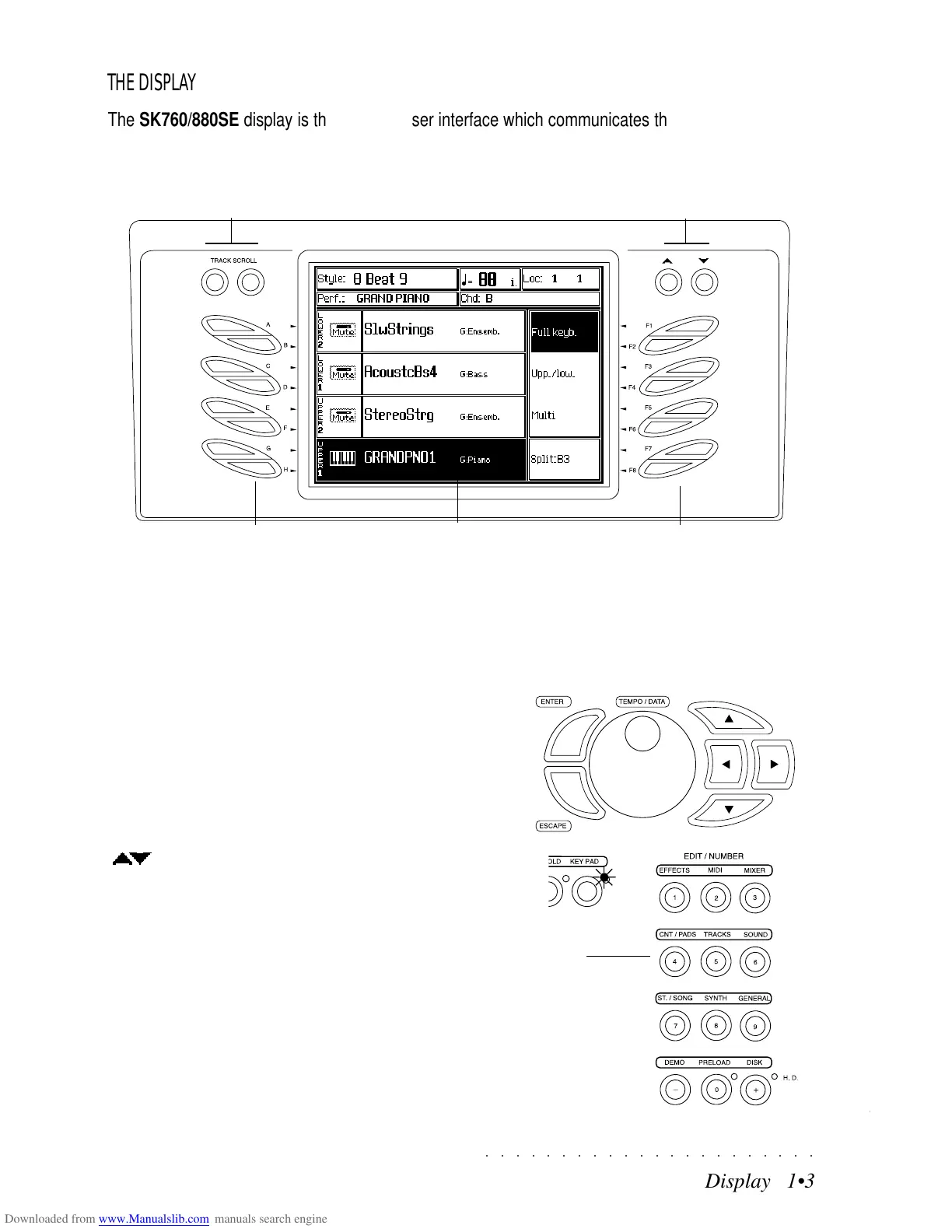

THE DISPLAY
The SK760/880SE display is the principal user interface which communicates the status of the instru-
ment at all times.
SOFT BUTTONS A … H SOFT BUTTONS F1 … F8
TRACK SCROLL BUTTONS PAGE (MENU) SCROLL BUTTONS
NEGATIVE HIGHLIGHT
CURSOR
EDIT/NUMBER
SECTION
ENABLED FOR
NUMERIC ENTRY
WHEN THE
KEYPAD LED
IS ON
ENTER/ESCAPE
AND DIAL
CURSOR
ARROWS
NAVIGATION, DATA ENTRY, CONFIRMATION/CAN-
CELLATION
The principal navigating controls are the CUR-
SOR ARROWS (directional arrows) and the prin-
cipal Data entry device is the DIAL. Secondary
navigating devices are the SOFT BUTTONS on
the left and right of the display, and the TRACK
SCROLL and PAGE (MENU) SCROLL buttons
( ) above the Soft buttons. A secondary data
entry device is the numeric keypad (the EDIT/
NUMBER section), which enters absolute num-
bers when the KEYPAD LED is on.
The display’s cursor is a negative highlight zone
which can be moved by means of the cursor but-
tons. The selected parameter can be modified
with the DIAL or NUMERIC KEYPAD. Confirma-
tion or cancellation of an operation within the dis-
play is with the ENTER or ESCAPE buttons.
THE DISPLAY
The SK760/880SE display is the principal user interface which communicates the status of the instru-
ment at all times.
SOFT BUTTONS A … H SOFT BUTTONS F1 … F8
TRACK SCROLL BUTTONS PAGE (MENU) SCROLL BUTTONS
NEGATIVE HIGHLIGHT
CURSOR
EDIT/NUMBER
SECTION
ENABLED FOR
NUMERIC ENTRY
WHEN THE
KEYPAD LED
IS ON
ENTER/ESCAPE
AND DIAL
CURSOR
ARROWS
NAVIGATION, DATA ENTRY, CONFIRMATION/CAN-
CELLATION
The principal navigating controls are the CUR-
SOR ARROWS (directional arrows) and the prin-
cipal Data entry device is the DIAL. Secondary
navigating devices are the SOFT BUTTONS on
the left and right of the display, and the TRACK
SCROLL and PAGE (MENU) SCROLL buttons
( ) above the Soft buttons. A secondary data
entry device is the numeric keypad (the EDIT/
NUMBER section), which enters absolute num-
bers when the KEYPAD LED is on.
The display’s cursor is a negative highlight zone
which can be moved by means of the cursor but-
tons. The selected parameter can be modified
with the DIAL or NUMERIC KEYPAD. Confirma-
tion or cancellation of an operation within the dis-
play is with the ENTER or ESCAPE buttons.
