1•10 Quick Guide
â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹
1•10 Quick Guide
PLAY WITH HEADPHONES

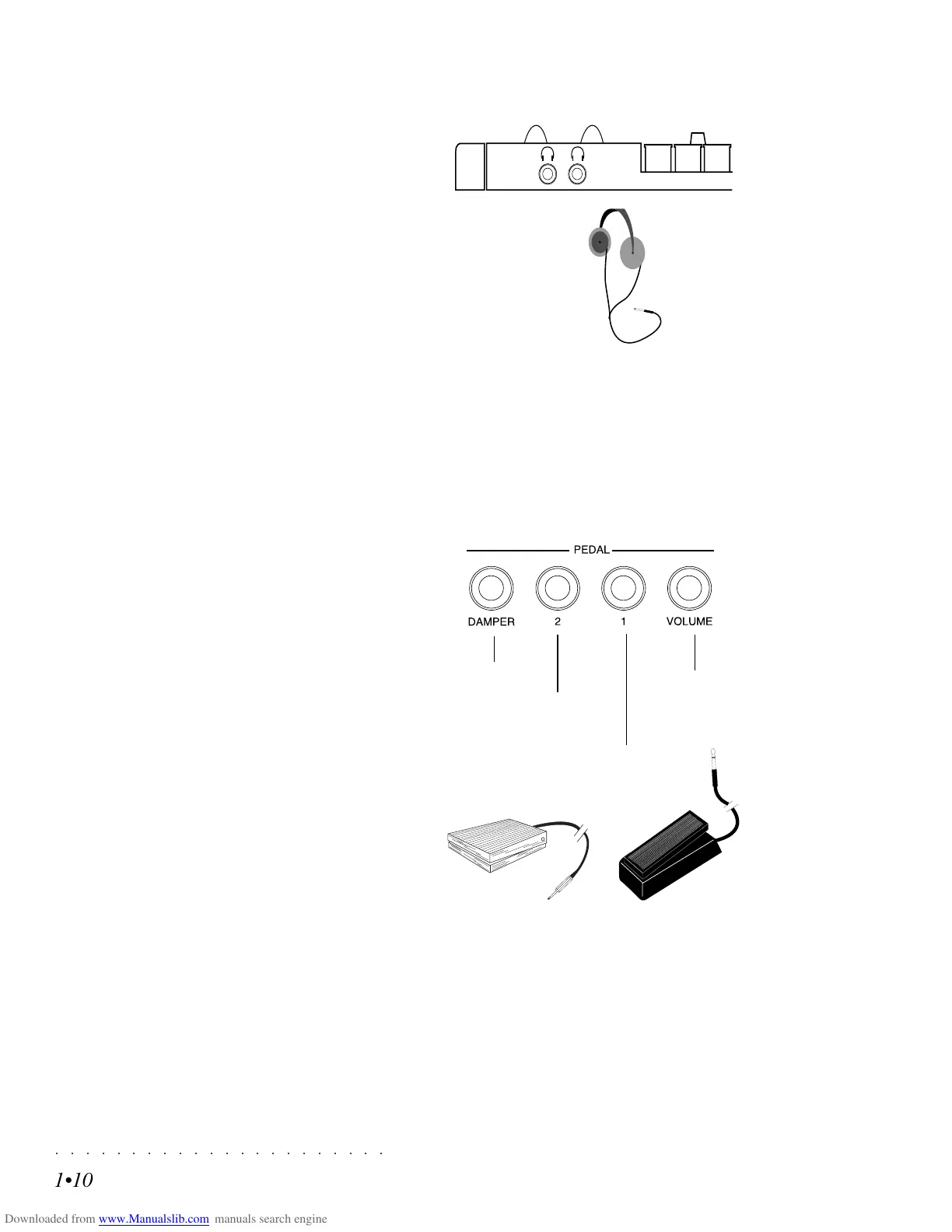

6. Plug a set of headphones into the PHONES
1 jack.
The headphones jack panel is located on the
left side of the instrument, under the key-
board. Inserting the headphones plug into
the PHONES 1 jack excludes the internal
speakers to allow you to play in total silence
without disturbing others in the same room.
Plugging into the PHONES 2 jack does not
exclude the internal speakers.
Use the Master Volume slider to adjust the
headphones volume.
6
DAMPER
SOSTENUTO
VOCAL ON/OFF
Footswitch
(on/off)
Volume Pedal
(continuous)
VOLUME
PLAY WITH THE PEDALS
The rear connections panel includes four jacks
for control pedals, denoted Volume, 1, 2, Damper.
The Volume jack is a non-programmable port for
a standard Volume Pedal (optional). The remain-
ing three pedal jacks are programmable and pre-
set to provide Performance functions.
The default configuration of the pedals is as fol-
lows:
• Ped1 = Vocal On/Off
• Ped2 = Sostenuto
• Damper = Damper (sustain)
• Volume = Volume
The pedal jacks 1, 2 and Damper are function
assignable and can be independently enabled or
disabled to react with the keyboard tracks of a
Performance.
All three pedals (1, 2, Damper) can be pro-
grammed to accept Switch action (on/off) or Con-
tinuous (graduated levels) control pedals (Volume
type).
PLAY WITH HEADPHONES
6. Plug a set of headphones into the PHONES
1 jack.
The headphones jack panel is located on the
left side of the instrument, under the key-
board. Inserting the headphones plug into
the PHONES 1 jack excludes the internal
speakers to allow you to play in total silence
without disturbing others in the same room.
Plugging into the PHONES 2 jack does not
exclude the internal speakers.
Use the Master Volume slider to adjust the
headphones volume.
6
DAMPER
SOSTENUTO
VOCAL ON/OFF
Footswitch
(on/off)
Volume Pedal
(continuous)
VOLUME
PLAY WITH THE PEDALS
The rear connections panel includes four jacks
for control pedals, denoted Volume, 1, 2, Damper.
The Volume jack is a non-programmable port for
a standard Volume Pedal (optional). The remain-
ing three pedal jacks are programmable and pre-
set to provide Performance functions.
The default configuration of the pedals is as fol-
lows:
• Ped1 = Vocal On/Off
• Ped2 = Sostenuto
• Damper = Damper (sustain)
• Volume = Volume
The pedal jacks 1, 2 and Damper are function
assignable and can be independently enabled or
disabled to react with the keyboard tracks of a
Performance.
All three pedals (1, 2, Damper) can be pro-
grammed to accept Switch action (on/off) or Con-
tinuous (graduated levels) control pedals (Volume
type).
â—‹â—‹ â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹
Tables A•19
â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹â—‹
Tables A•19
Drumkits
25
27
26
30
29
28
32
31
34
33
35
36
37
38
39
42
41
40
44
43
46
45
47
48
49
50
51
54
53
56
55
58
57
59
60
61
62
63
52
64
66
65
68
67
70
69
71
C2
C3
C4
DK_STAND2WX 113-5-1 DK_ROOM2WX 114-5-1 DK_POWER2WX 115-5-1 DK_ELECT2WX 116-5-1 DK_HOUSE2WX 117-5-1 DK_RIDE IT 118-5-1
ZAPP 115-10 ZAPP 115-10 ZAPP 115-10 ZAPP 115-10 ZAPP 115-10
ZAPP 115-10 ZAPP 115-10 ZAPP 115-10 ZAPP 115-10 ZAPP 115-10
<<<<<
KITCHEN 113-14 KITCHEN 113-14 KITCHEN 113-14 KITCHEN 113-14 KITCHEN 113-14
SCRATCH1 115-12 SCRATCH1 115-12 SCRATCH1 115-12 SCRATCH1 115-12 SCRATCH1 115-12
<<<<<
<<<<<
<<<<<
RIMSHOT1 99-9 RIMSHOT1 99-9 RIMSHOT1 99-9 RIMSHOT1 99-9 RIMSHOT1 99-9
BABYVOX 114-16 BABYVOX 114-16 BABYVOX 114-16 BABYVOX 114-16 BABYVOX 114-16
<<<<<
< BDROOM1 97-13 BDROOM1 97-13 BDELECT1 97-11 BDHOUSE2 97-10
<<<<<
SDSTD2 101-9 SDSTD3 101-10 SDROOM1 100-14 < SDSTD2 101-9
<<<<<
SDSTD3 101-10 SDROOM2 110-15 SDELECT 100-9 SDSTD3 101-10 SDJAZZ3 100-12
TOMROOM 104-12 < TOMROOM 104-12 TOMHIGH 104-10 TOMHIGH 104-10
< < < HOUSEHH 105-15 <
TOMROOM 104-12 < TOMROOM 104-12 TOMHIGH 104-10 TOMHIGH 104-10
< < < HOUSEHH 105-15 <
TOMROOM 104-12 TOMROOM 104-12 TOMROOM 104-12 TOMHIGH 104-10 TOMHIGH 104-10
<<<<<
TOMROOM 104-12 TOMROOM 104-12 TOMROOM 104-12 TOMHIGH 104-10 TOMHIGH 104-10
TOMROOM 104-12 < TOMROOM 104-12 < <
<<<<<
TOMROOM 104-12 TOMROOM 104-12 TOMROOM 104-12 < <
<<<<<
<<<<<
<<<<<
<<<<<
<<<<<
<<<<<
<<<<<
<<<<<
<<<<<
< < < < HOUSETCON 109-16
< < < < HOUSETCON 109-16
< < < < HOUSETCON 109-16
< < < < HOUSETCON 109-16
< < < < HOUSETCON 109-16
<<<<<
TIMBALES 110-9 TIMBALES 110-9 TIMBALES 110-9 TIMBALES 110-9 TIMBALES 110-9
<<<<<
<<<<<
<<<<<
VOXHHCL 114-12 VOXHHCL 114-12 VOXHHCL 114-12 VOXHHCL 114-12 VOXHHCL 114-12
<<<<<
