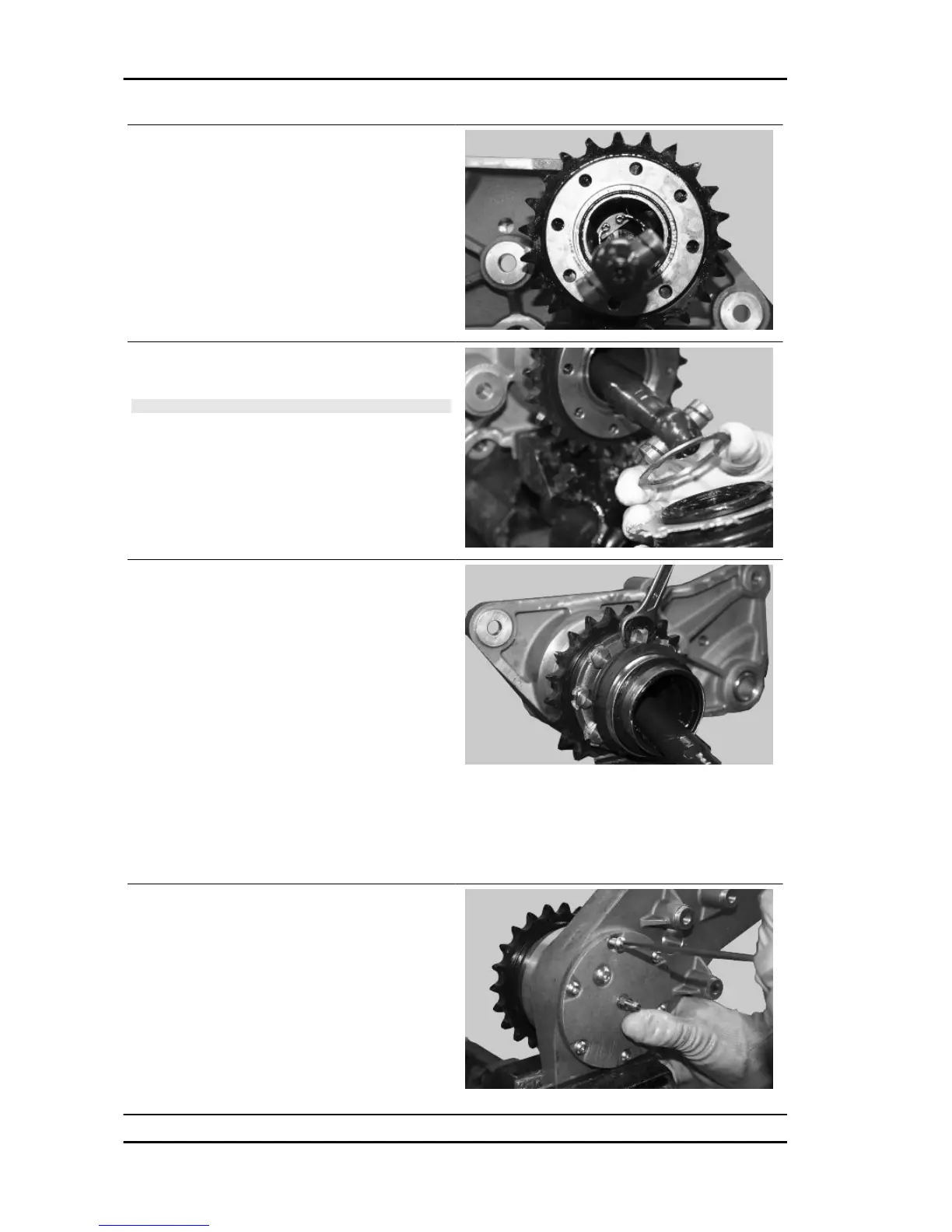

- Fit the seeger ring in the seat.
- Fit the oil sealing cap with the fixing ring, com-
plying with the position indicated during removal.
N.B.
FIT THE OIL SEALING CAP EDGES UNDER
THE SAFETY PLATE.
- Tighten the eight screws fixing the pinion to the
driving bushing and with a punch fold the tongues
of the safety plate.
- Grease the driving sliders with the recommended
product.
- Fit both engine side driving sliders.
Recommended products
AGIP GREASE PV2 Grease for steering bear-
ings, bolt seatings for swinging arms and fay-
ing surface of driven pulley spring (only pulley
side)
Soap-based lithium and zinc oxide grease con-
taining NLGI 2; ISO-L-XBCIB2
- Fit the cover and tighten the six fixing screws to
the prescribed torque using the recommended
product from the opposite side.
(*) Apply Loctite 243 medium-strength
Locking torques (N*m)
Screws fixing pinion unit cover 4 ÷ 5*
Engine GP 800 i.e.
ENG - 26
