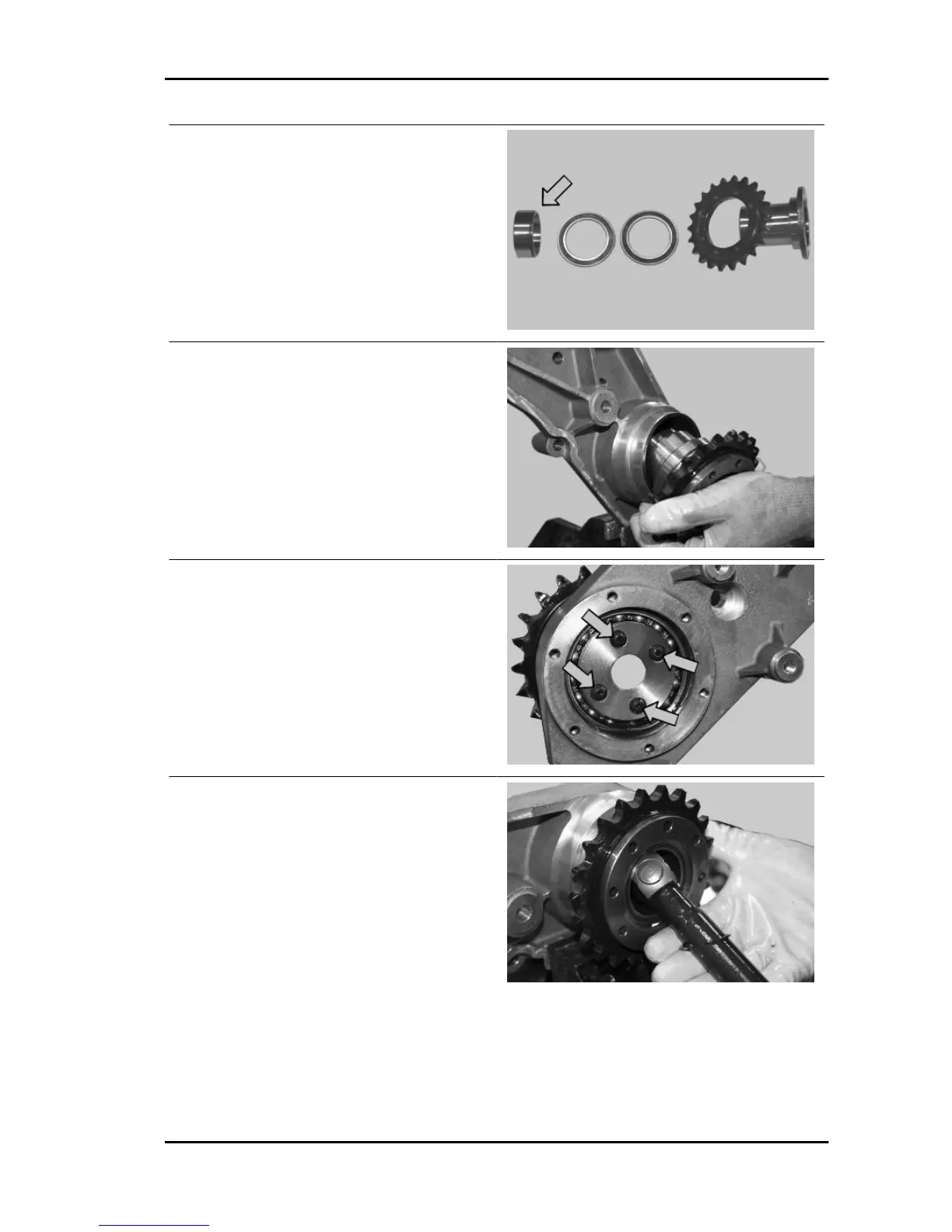

- Fit the new components on the driving bushing,
pinion, bearings and bushing, following the se-
quence indicated in the photograph, being careful
to place the bushing properly.
- In the support, fit the pinion driving bushing plus
with the pinion, bearings and spacer previously
assembled.
- Fit the plate and tighten the four fixing screws
using the recommended product from the opposite
side.
* Loctite 243 medium-strength
Locking torques (N*m)
Screw for plate locking pinion driving bush-
ing 4 ÷ 6*
- Grease the driving sliders with the recommended
product.
- Fit the shaft together with the seeger ring and the
support side driving sliders.
Recommended products
AGIP GREASE PV2 Grease for steering bear-
ings, bolt seatings for swinging arms and fay-
ing surface of driven pulley spring (only pulley
side)
Soap-based lithium and zinc oxide grease con-
taining NLGI 2; ISO-L-XBCIB2
GP 800 i.e. Engine
ENG - 25
