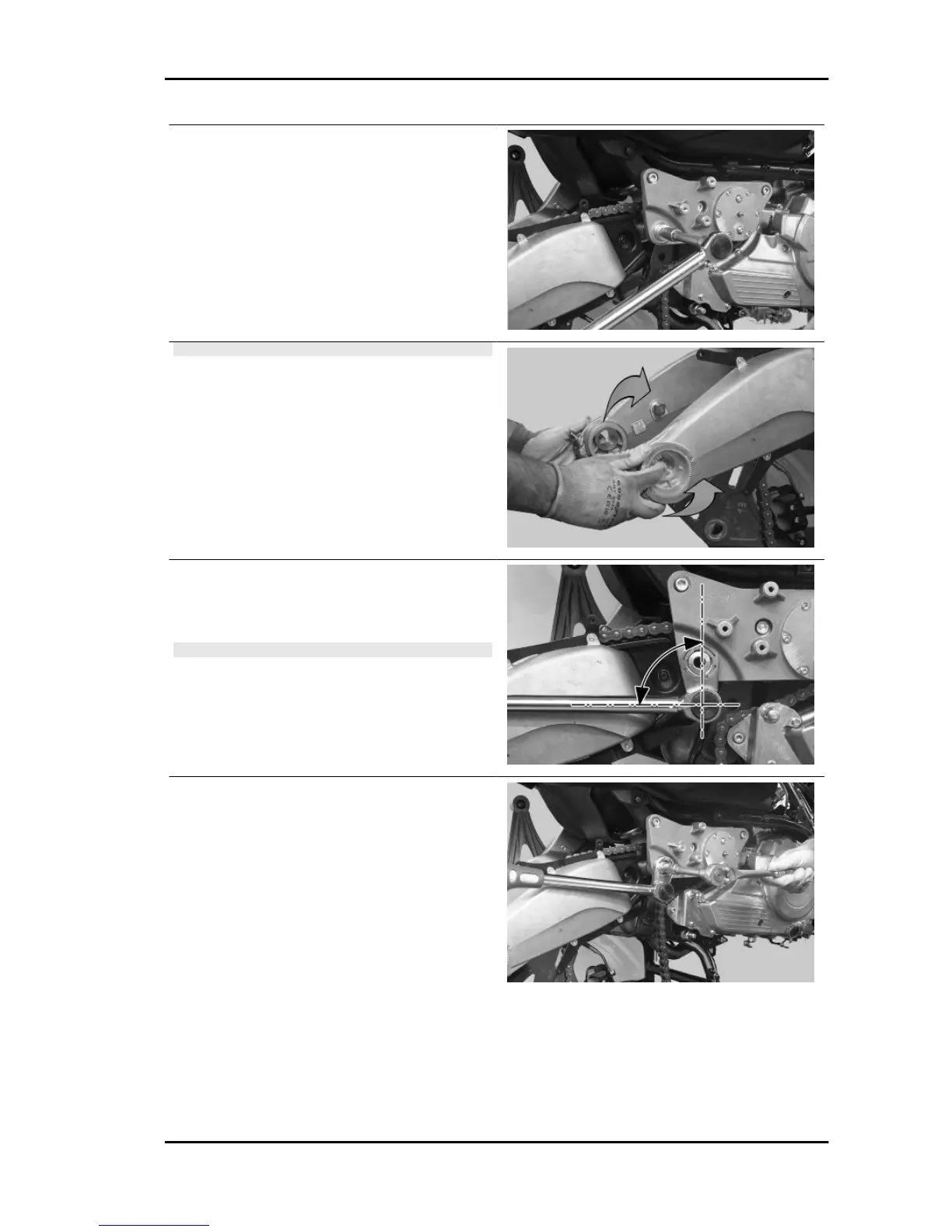

- Fit the fork pin.
- Tighten the set screw to the prescribed torque.
Locking torques (N*m)
Fork pin set screw 0.5
CAUTION
MAKE THE FORK SWING SLIGHTLY UPON
TIGHTENING SO AS TO OBTAIN THE PROPER
COUPLING ON THE FORK SHAFT.
- Screw the set screw locking ring nut.
- Prepare the specific tool and the torque wrench
for tightening.
N.B.
PLACE THE WRENCH AT 90° REGARDING
THE SPECIFIC TOOL. FAILURE TO OBSERVE
THIS POSITIONING MAY ALTER THE PROPER
LOCKING TORQUE.
- Using the specific tool tighten the set screw lock-
ing ring nut to the prescribed torque while keeping
the set screw locked.
Specific tooling
020667Y Wrench for fork pin adjustment ring
nut
Locking torques (N*m)
Fork locking ring nut 60 ± 3 Nm
