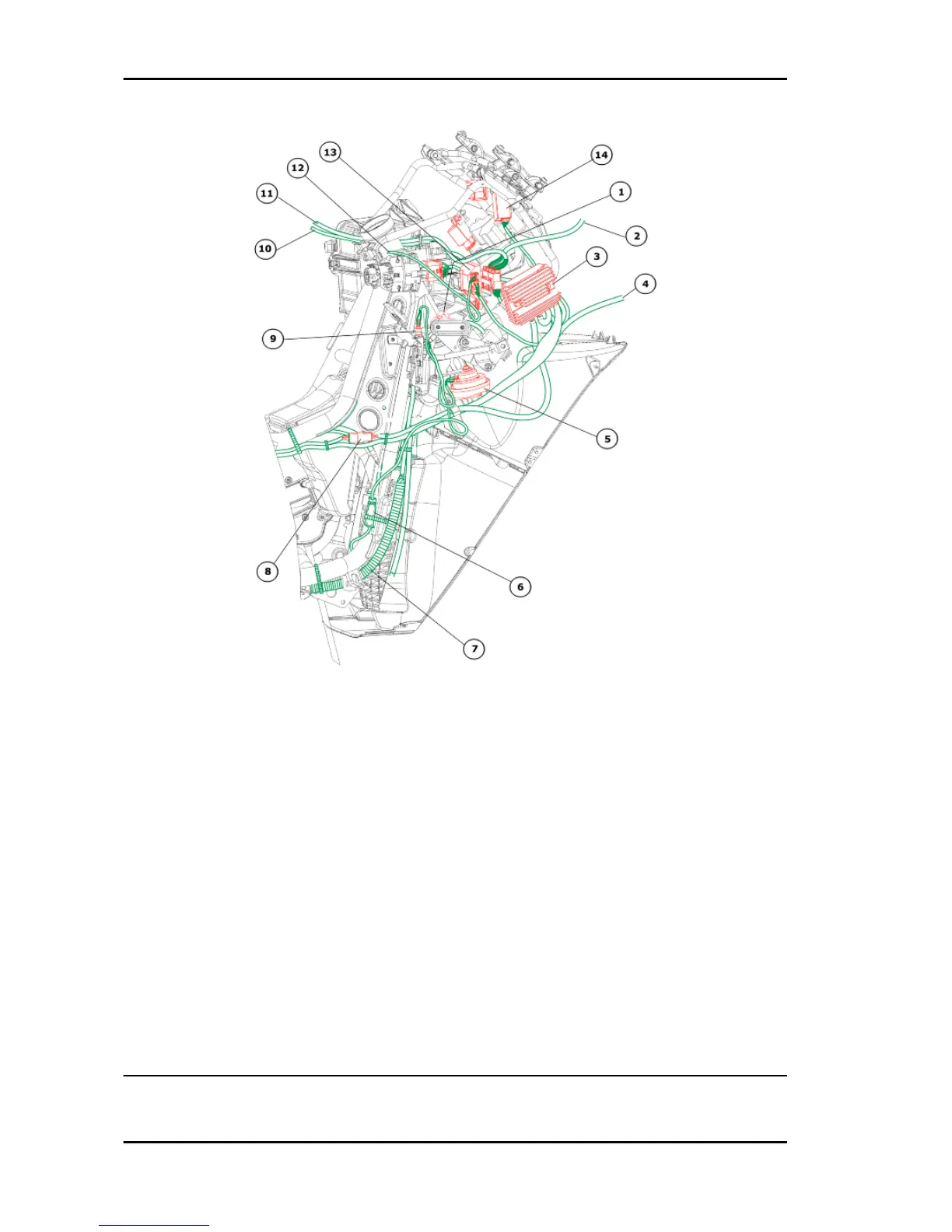

1. Saddle opening actuator
2. To the right control unit on the handlebar
3. Voltage regulator
4. To the right turn indicator
5. Snail horn
6. Electric fan connection
7. Starter motor cable
8. Regulator - flywheel connector
9. Parking brake switch
10.To the left control unit on the handlebar
11.GPS wiring
12.To the immobilizer aerial
13.Immobilizer ECU
14.Saddle opening receiver
Electrical system GP 800 i.e.
ELE SYS - 14
