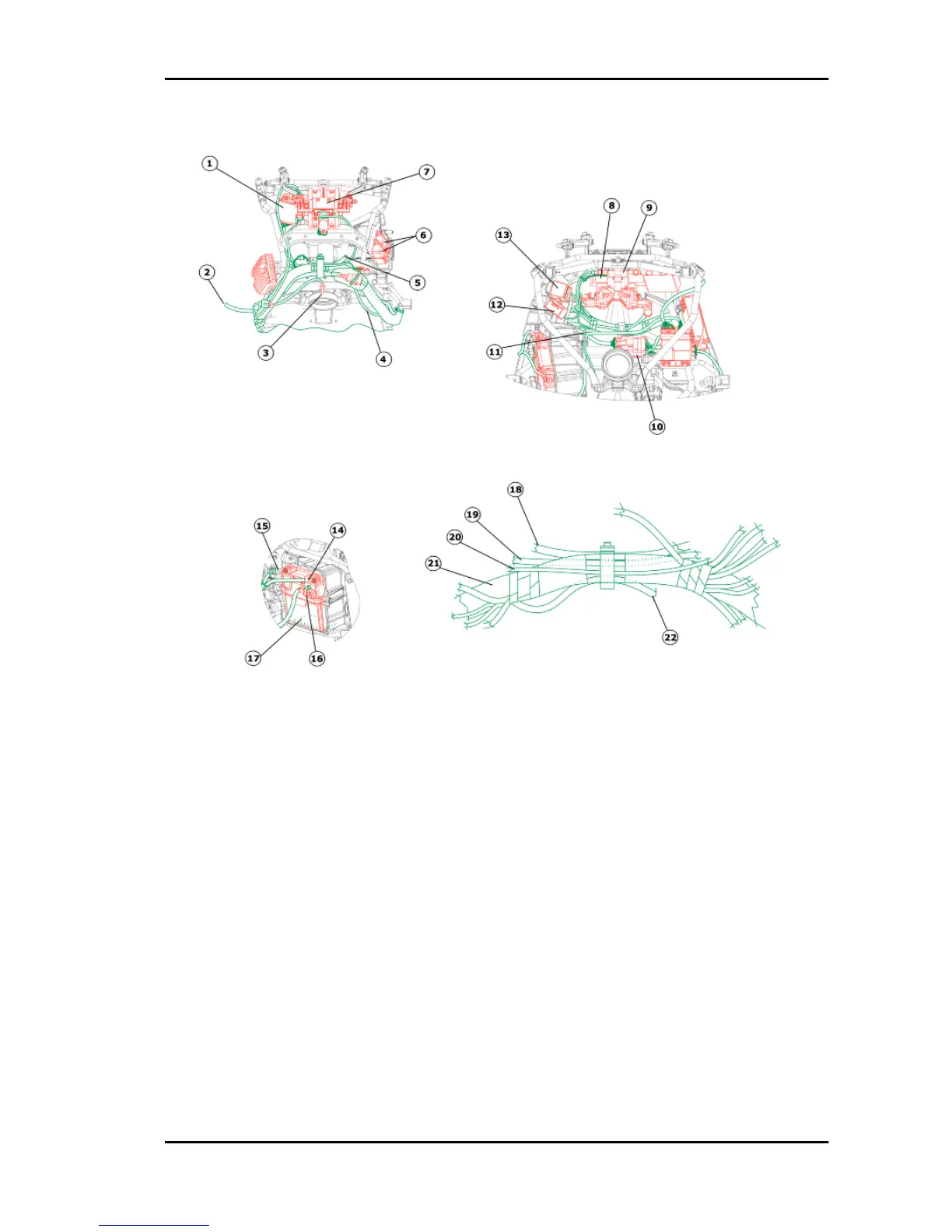

1. Saddle opening receiver
2. To the right turn indicator
3. External temperature sensor
4. To the side stand switch
5. To the instrument panel
6. Remote control switches - electric windshield switches
7. Electric windshield motor
8. Injection electronic control unit
9. Overturn sensor
10.Connection between main system and the system on the engine
11.GPS wiring
12.Buttons control device on the handlebar
13.Turn indicator control device
14.To the battery negative
15.To the battery positive
16.Diagnostic socket for hand-held computer
GP 800 i.e. Electrical system
ELE SYS - 15
