GDM-906X Series User Manual
196
F3 (Bins) key
to define bin
numbers
Backgro
und
Press the F3 (Bins) key to enter the Bins Setup
menu where user can customize the maximum
numbers of stripe-like bins for display.
Note: The available options for bin numbers will
vary in accordance with the defined refresh rate.
Faster the refresh rate, smaller the numbers of
bins available.

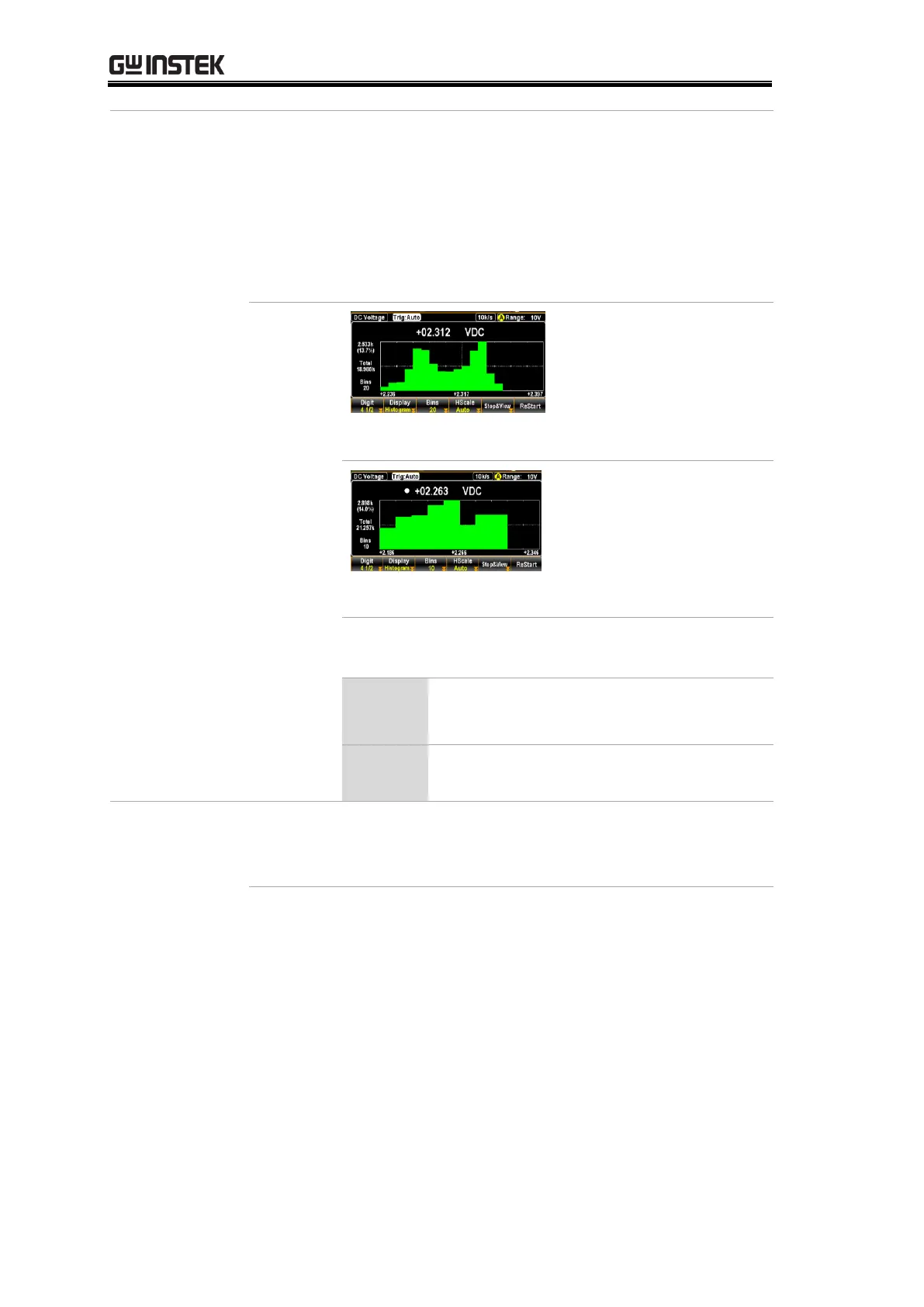

Display
The histogram is defined
with 20 bins display. The
central line divides the
left and right parts, each
of which contains 10
bins respectively.
The 10 bins setting
make the histogram
display much thicker in
its each bin compared to
the previous 20 bins
setting.
The max bin number varies by the refresh rate.
Check the table below for correlative parameters.
Refresh
Rate
5/s ~
2.4k/s
4.8k/s
7.2k/s
10k/s
Max. Bin
Number
400
200
100
20
F4 (HScale)
key to define
horizontal
scale
Backgro
und
Press the F4 (HScale) key to enter the HScale
Setup menu where Auto and Manual options are
available for selection.
Auto
Selecting “Auto” allows the frequency of the
measuring counts to be symmetric with the
defined refresh rate. For example, setting 10k/s
results in the fastest frequency, while 1s leading
to the slowest frequency.
