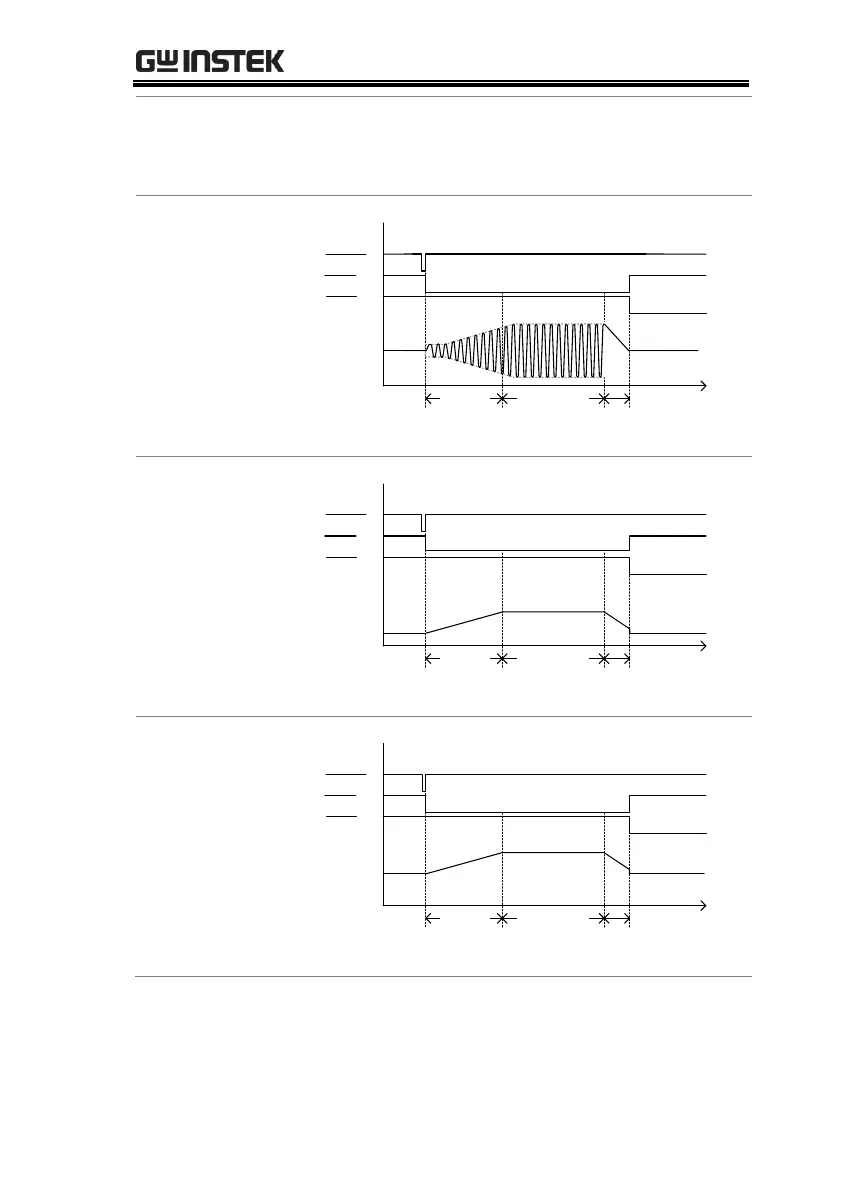

FAIL Timing
Diagrams
The timing diagrams below show the ACW, DCW
and IR timing for the START status, TEST status
and FAIL judgment.
ACW FAIL Timing
DISCHARGE
Output V
time
START
TEST
FAIL
RAMP
UP
TEST TIME
DCW FAIL Timing
DISCHARGE
Output V
time
START
TEST
FAIL
RAMP
UP
TEST TIME
IR FAIL Timing
DISCHARGE
Output V
time
START
TEST
FAIL
RAMP
UP
TEST TIME
