IR PASS Timing
Output V
time
START
TEST
PASS
RAMP
UP
TEST TIME
FALL TIME
& DISCHARGE

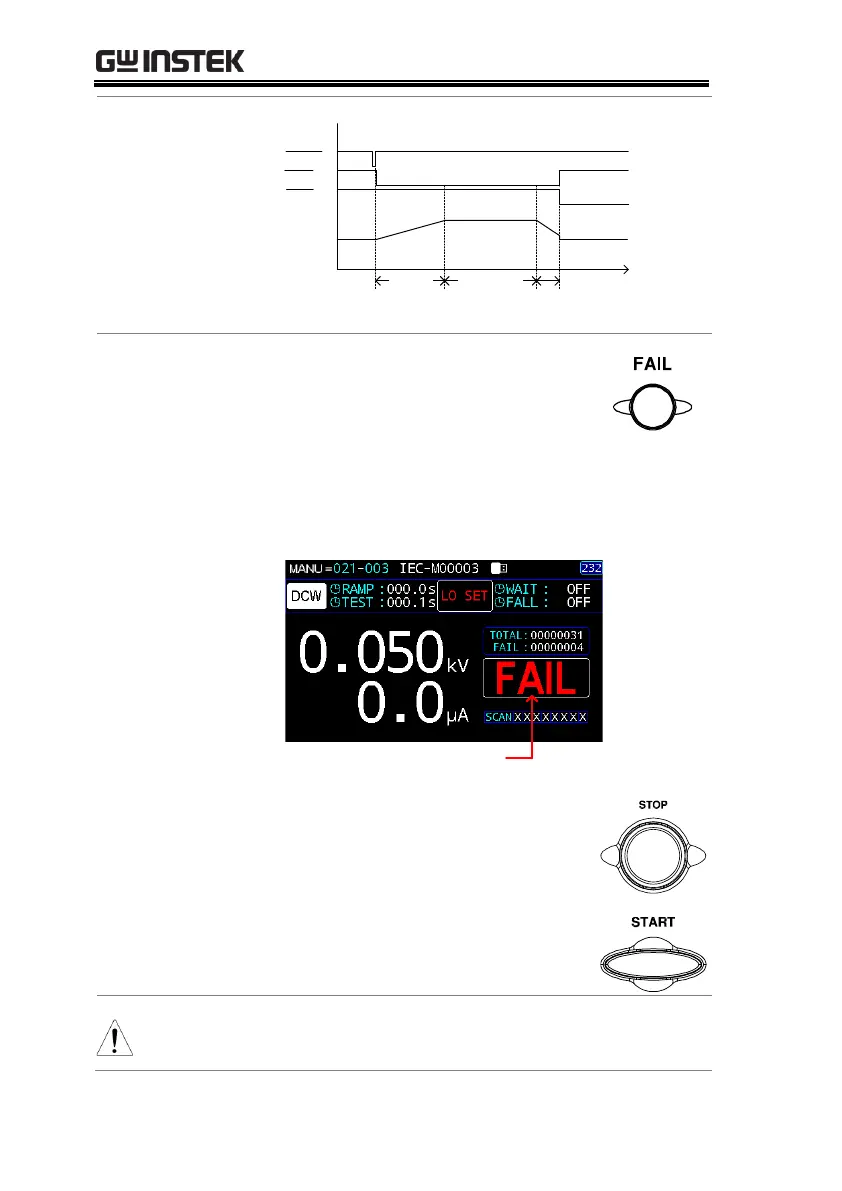

FAIL Judgment
1. When the test is judged as FAIL,
FAIL will be displayed on screen,
the buzzer will sound and the
FAIL indicator will be lit red.
As soon as a test is judged FAIL,
power is cut from the terminals.
FAIL judgment
2. The FAIL judgment will be held on
the display until the STOP button
is pressed. Pressing the STOP
button will return the tester back to
the READY status.
Or press the START button to
resume the test.
Note
The buzzer will only sound if Fail Sound is set to
ON. See page 142 for details.
