Constellation™ November 2003
7-6 SNMP-Based Network Management
Standard Configuration
A standard configuration refers to a network where the only radio with the
Ethernet port enabled is the radio connected to StarView. Figure 7-2 shows an
example of a small network consisting of three sites: terminal, repeater and
dual terminal.

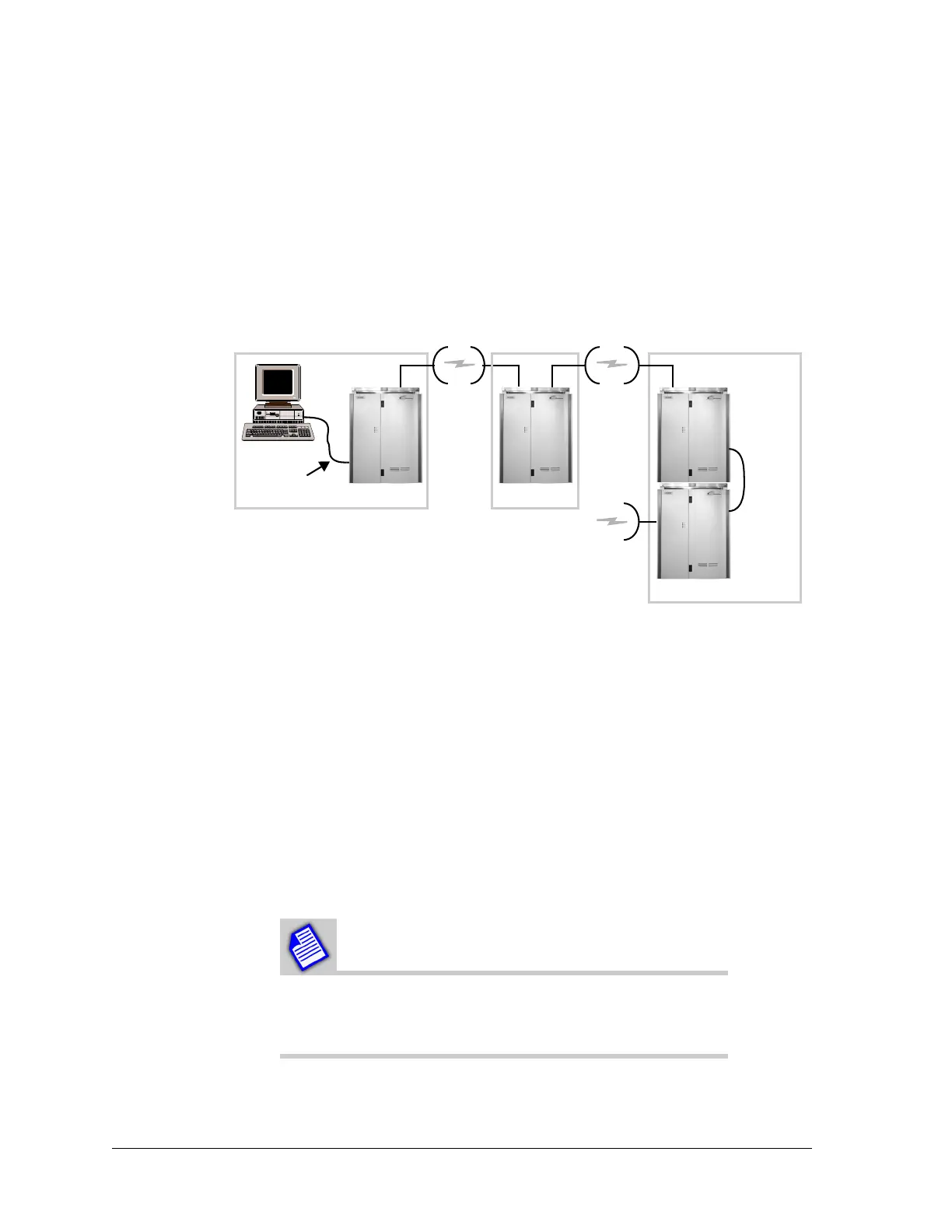

Figure 7-2: Standard Configuration Example
This example is a very basic LAN setup, where no IP connections are dropped
at the remote sites. StarView has a straight Ethernet connection into the radio.
Based on Figure 7-2, the following assumptions are made:
• Only two subnets are needed because no IP segments will be dropped at
remote sites.
• Private class C IP (192.168.1.0 and 192.168.2.0) is used.
• StarView PC: 192.168.1.1
• Constellation #1 Ethernet IP: 192.168.1.2
• Constellation #1 Netcom IP: 192.168.2.1
• Constellation #2 Netcom IP: 192.168.2.2
• Constellation #3 (top terminal) Netcom IP: 192.168.2.3
• Constellation #4 (bottom terminal) Netcom IP: 192.168.2.4
All IP configurations are found in the following keypad
menu:
Configuration > Network Management
Repeater
Constellation #1
Terminal
StarView
10BASE-T
Connection
Dual Terminal
Aux-Spur
Inter-
connect
Constellation #2 Constellation #3
