Harris Constellation - Figure 3-2: Door Latch; Figure 3-3: Door Straps

Constellation™ November 2003
3-12 Installation and Commissioning

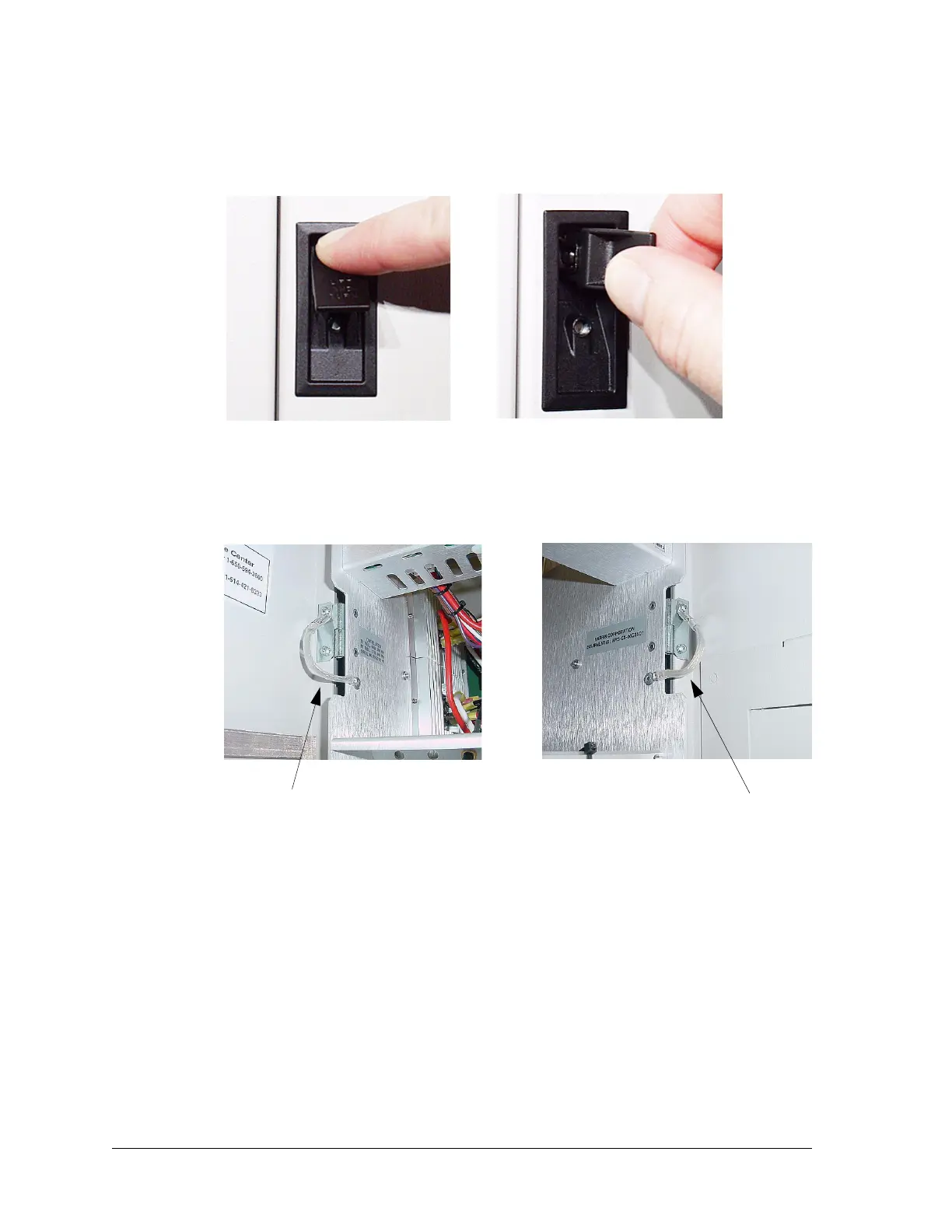

Figure 3-2: Door latch
b. The doors swing open 90 degrees.
c. For radios with straps (Figure 3-3) installed inside the door: Pull the
straps (on the left and right sides) to unfasten them.
Figure 3-3: Door straps
d. Lift up the doors to remove them from the card cage.
Left strap
Right strap
