Harris Corporation Constellation™
Fan Assembly 11-7
FIELD-
REPLACEABLE
UNITS
Installing the Fan Assembly
1. Rotate the spring-loaded pin a quarter of a turn to unlock it.
2. Place the receiver IF cable(s) behind the fan faceplate and out the notched
edge(s) as shown in Figure 11-7.

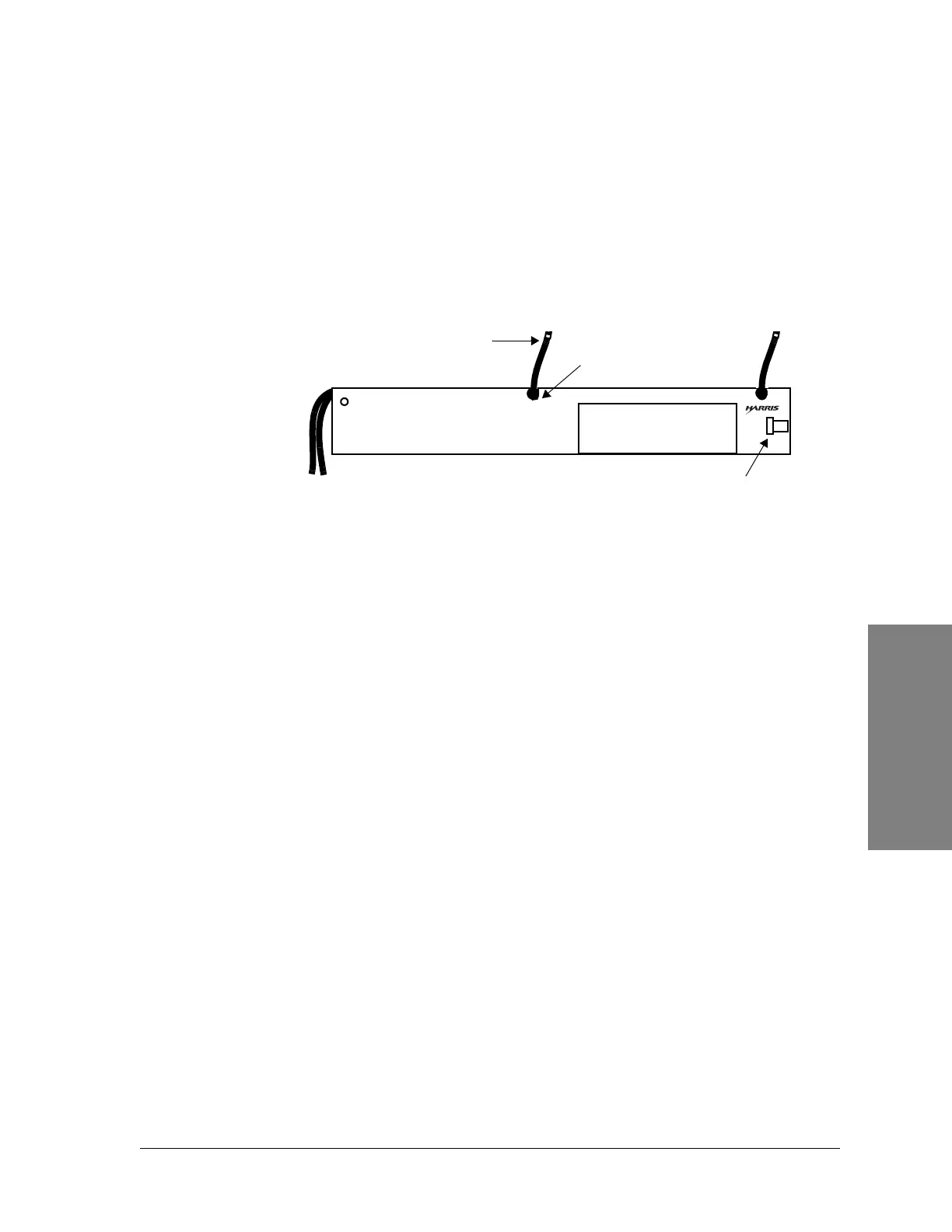

Figure 11-7: Fan Assembly
3. Carefully slide the Fan Assembly in without pinching the IF cables.
4. The Fan Assembly is properly installed when the release pin pops in.
5. Place the grommets against the Fan Assembly.
6. For a terminal, return the Keypad to its former place.
FAULT
Receiver IF cable (2)
Spring-loaded release pin
Grommet (2)
To Next Page
