Harris Corporation Constellation™
Radio Frequency Section 11-9
FIELD-
REPLACEABLE
UNITS
Transmitter Assembly

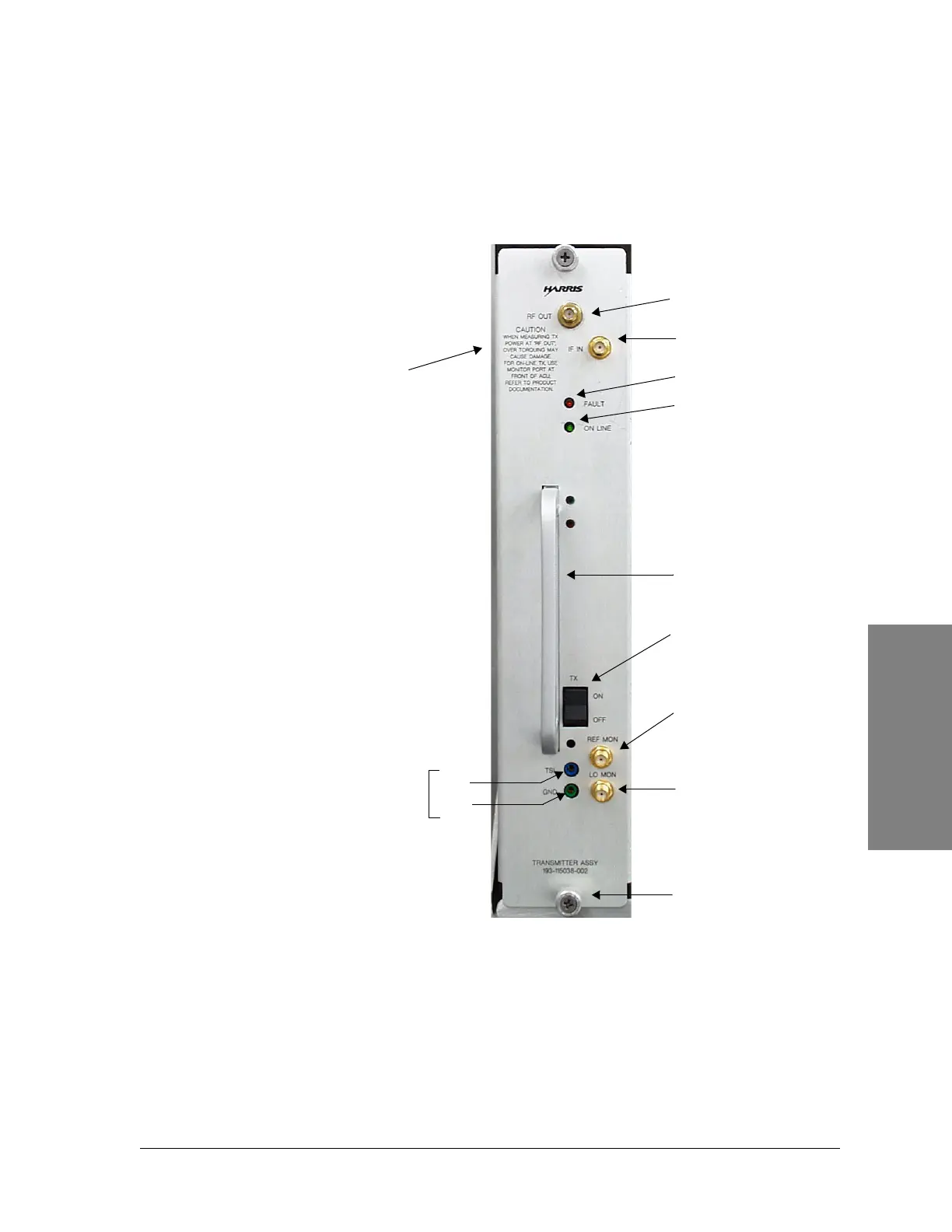

Figure 11-9: Transmitter Assembly, front view
Note: To prevent damage to
the connectors, do not exceed 8
to 9 in-pounds of torque.
IF IN (from Modem)
RF OUT (to ACU)
Thumb screw (2)
Transmitter
output level
LO MON
LO synthesizer test point
(2.060 to 2.160 GHz)
(For factory use only)
REF MON
Reference frequency
test point
(100 MHz)
ON/OFF switch, turns the
power amplifier on or off
FAULT (red LED)
ON LINE (green LED)
TSL
GND
Handle
Caution: When measuring Tx
power at RF OUT, over torquing
may cause damage.
For on-line Tx, use monitor port
at front of ACU.
Refer to product documentation.
To Next Page
