Harris Corporation Constellation™
Radio Frequency Section 11-15
FIELD-
REPLACEABLE
UNITS
Receiver Assembly

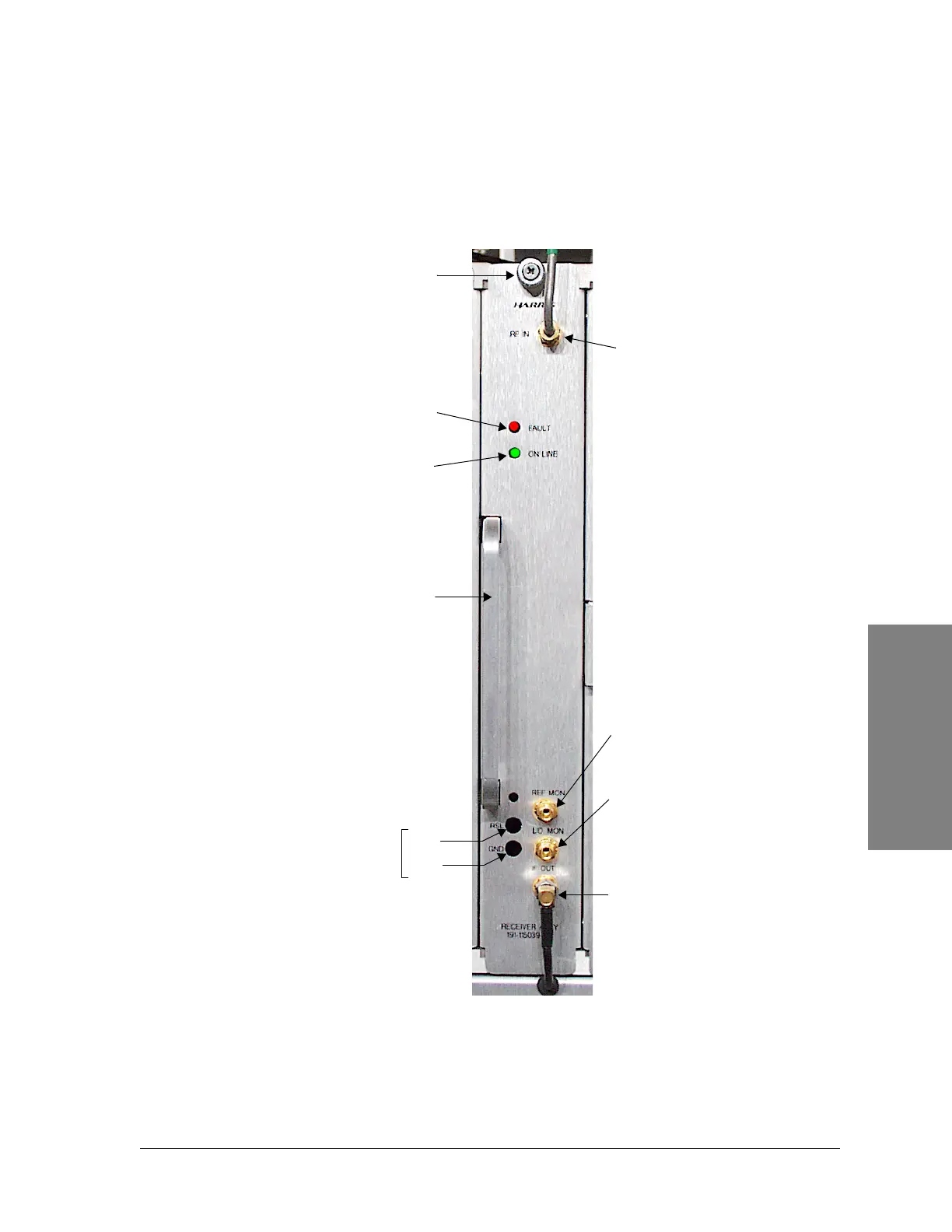

Figure 11-12:Receiver Assembly, front view
Note: To prevent damage to the
connectors, do not exceed 8 to 9
in-pounds of torque.
RF IN (from ACU)
IF OUT (to Modem)
Thumb screw
REF MON
Reference frequency test point
(100 MHz)
Test points for aligning
the antenna
FAULT (red LED)
ON LINE
(green LED)
RSL
GND
Handle
LO MON
LO synthesizer test point
(2.060 to 2.160 GHz)
(For factory use only)
