Constellation™ November 2003
4-10 Loopback Testing
Wayside Remote Loopback
Customer test equipment is required for this test. This test loops back the signal
from the far end to the near end. See
Figure 4-9 .
From the Keypad, select
CONTROL > WAYSIDE LPBK > WAYSIDE RMT LPBK

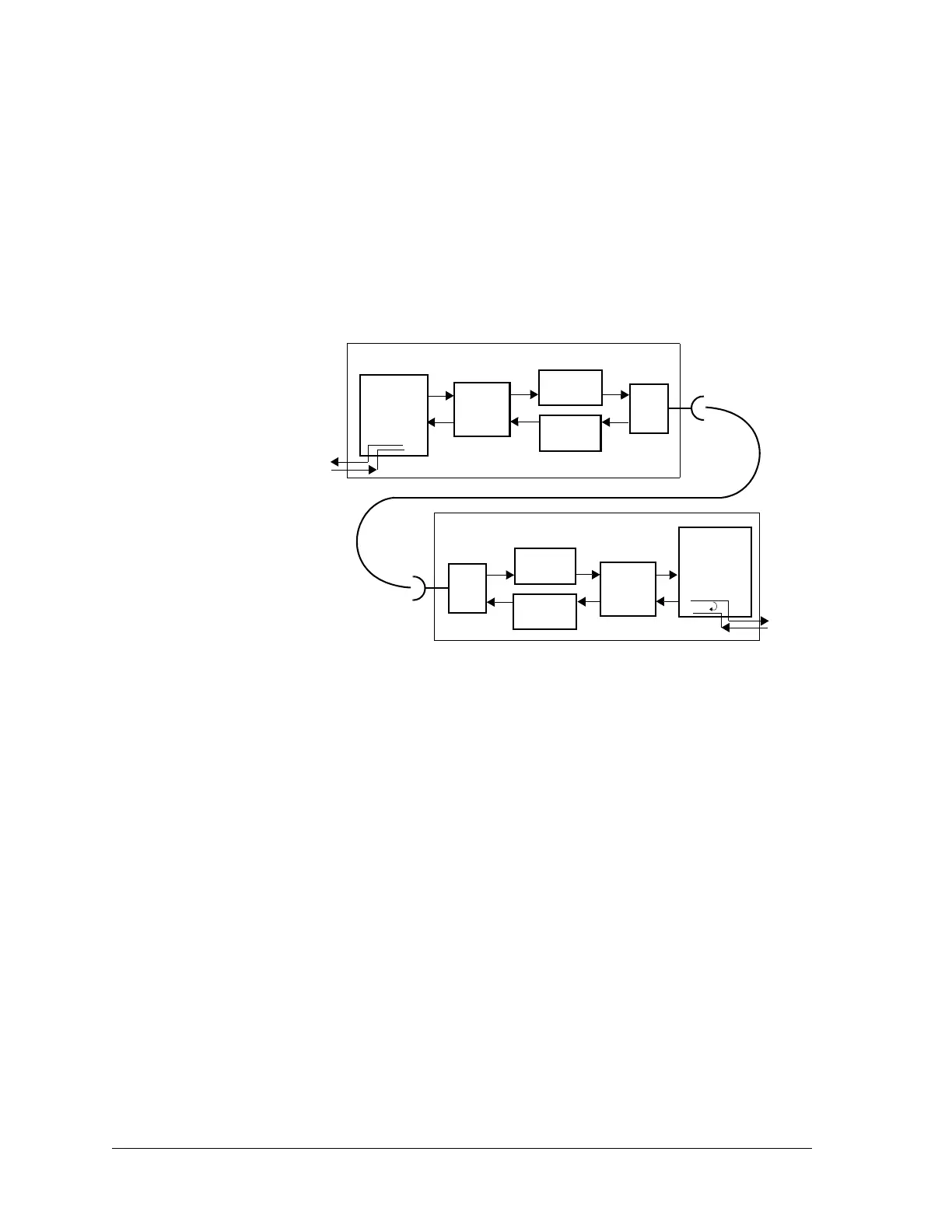

Figure 4-9: Wayside remote loopback test
Hi Cap
Modem
ACU
Transmitter
Assembly
ACU
Receiver
Assembly
Local Terminal
Remote Terminal
Hi Cap
Modem
Transmitter
Assembly
Receiver
Assembly
HLM-155
Wayside
Customer
test set
Wayside
HLM-155
