Harris Corporation Constellation™
Detailed Installation Procedures 3-11
INSTALLATION
AND
COMMISSIONING
Detailed Installation Procedures
Ensure that the power breakers are off or that the
fuses are removed.
1. Install the Constellation Radio rack
Install the Constellation radio rack as specified in the Sales Order Specific
Information (Engineering Work Order).
2. Ground the radio rack
Install one end of the grounding cable to the Constellation Radio rack.
Install the other end of the cable to the premises ground system in
accordance with local procedures.
3. Open and remove the Constellation doors
a. To open the Constellation doors, lift up the two door latches and turn
them clockwise. See Figure 3-1 and Figure 3-2.

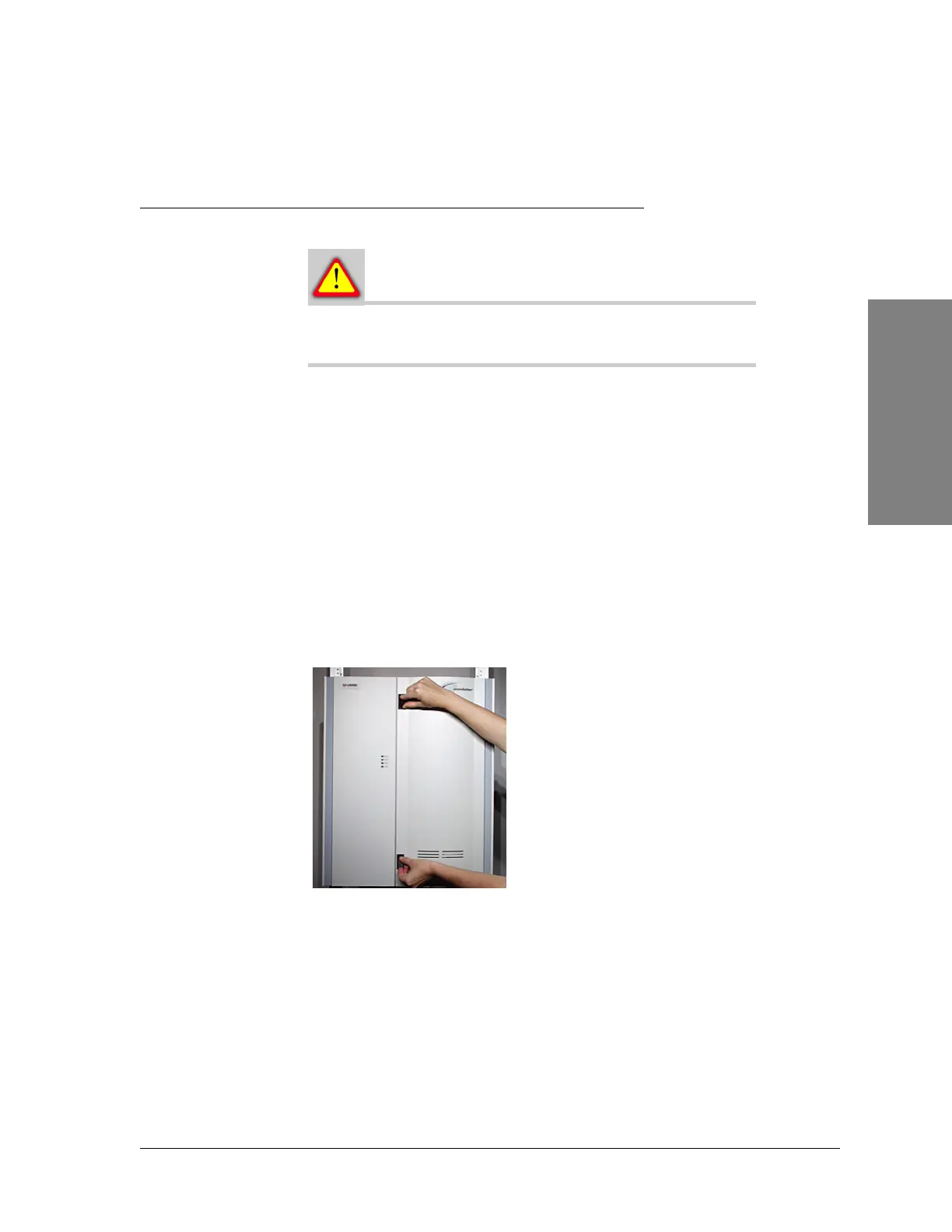

Figure 3-1: Constellation Radio, front view
