Constellation™ November 2003
3-18 Installation and Commissioning
2xDS3 + 28 DS1

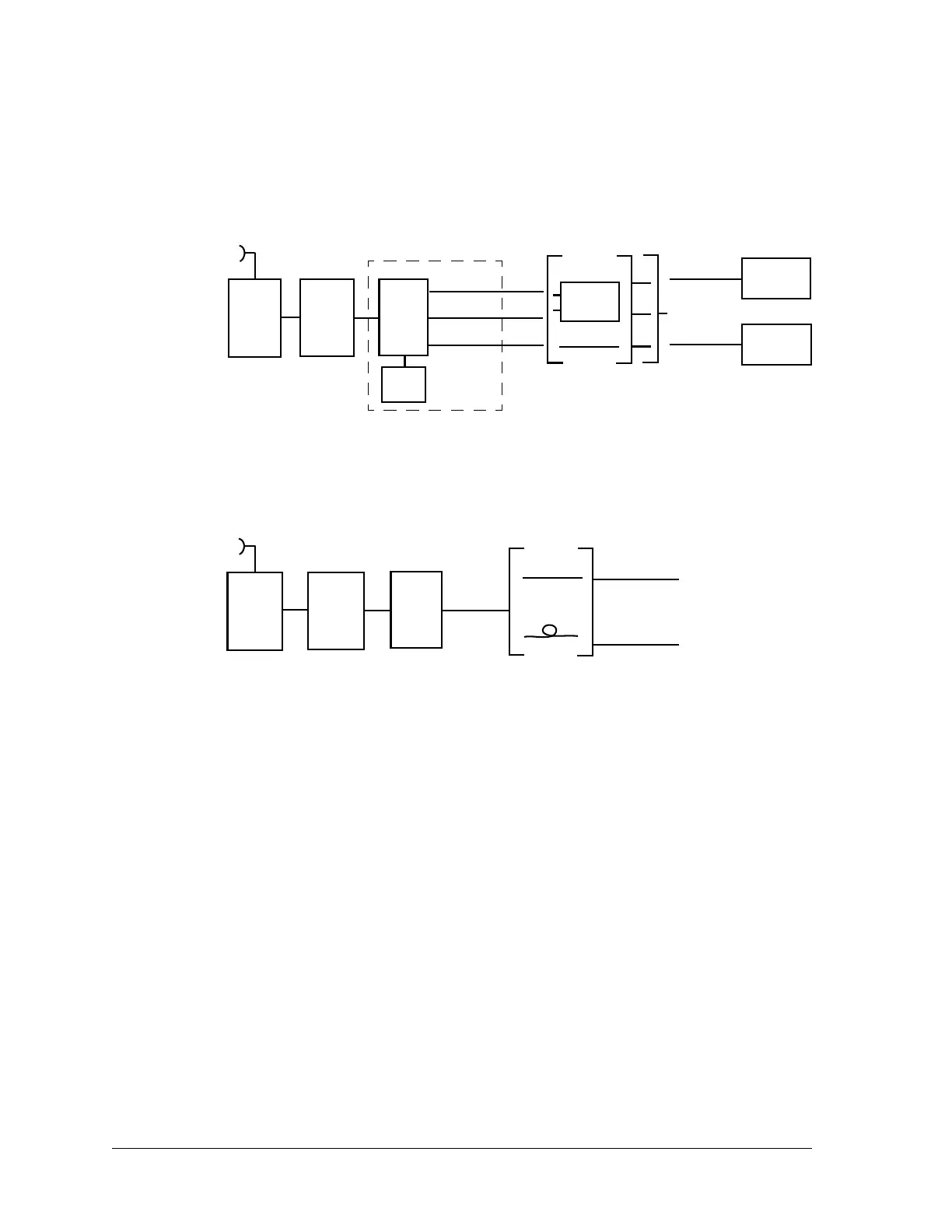

Figure 3-11: Interconnection cabling, 2xDS3 + 28 DS1
configuration
155 Electrical or Optical Configuration
Figure 3-12: Interconnection cabling, 155 Electrical or Optical
configuration
1. Connect the Constellation radio to other equipment.
For connector pinout information, refer to Appendix A.
2. Connect the customer-configured alarm wires.
3. Connect the Constellation Radio to the antenna or to a dummy load.
All Constellation radios, in terminal or repeater (when applicable)
configuration, provide 8 alarm inputs and 8 relay outputs. These 8 relays can
either provide information about the radio to a non-FarScan NMS, or be used
to activate (from FarScan) external devices such as a generator, air
conditioning, and so forth (housekeeping). These 8 relays are programmable;
the first two relays are predefined at the factory as LOCAL MAJOR and LOCAL
MINOR but can be programmed for customer use.
Located at the top left side of the radio (Figure 3-13), this 50-pin D connector
(Figure 3-14) is available for customer-configured alarms. The SPU Controller
provides 8 opto-isolated alarm inputs. The system provides 8 dry-contact,
relay outputs as defined in Table 3-10. Input level of alarm input shall be open
or ground. The Service Channel provides the Callout outputs. Table 3-9 lists the
relay specifications.
Radio
Modem
HLM
DS3-2
or
DS3
Jackfield
DS1 Radio
Repeater
DS3
Multiplexer
Application 1
Application 2
or
or
DS3-1
M12
Units
28 DS1
For DS3: Avaya 734 cables, or equivalent.
For DS1: See
Tab le 3 -8
.
Radio
Modem
HLM
or
Application 1
Application 2
or
For STM1/STS3: Avaya 734 cables, or equivalent.
For OC3: Single-mode or multimode with SC connectors.
