Harris Constellation - 3 DS3;4 DS3 Remote Loopback; Figure 4-7: 3 DS3;4 DS3 Remote Loopback Test

Constellation™ November 2003
4-8 Loopback Testing
3DS3/4DS3 Remote Loopback
Customer test equipment is required for this test. This test loops back the signal
from the far end to the near end. See
Figure 4-5 .
You need to access the hidden Control submenu to conduct the DS3 loopback
test for each channel.
From the Keypad, select
CONTROL > hidden menu (F1 + F3 or Ctrl B) > DS3-x REM LPBK

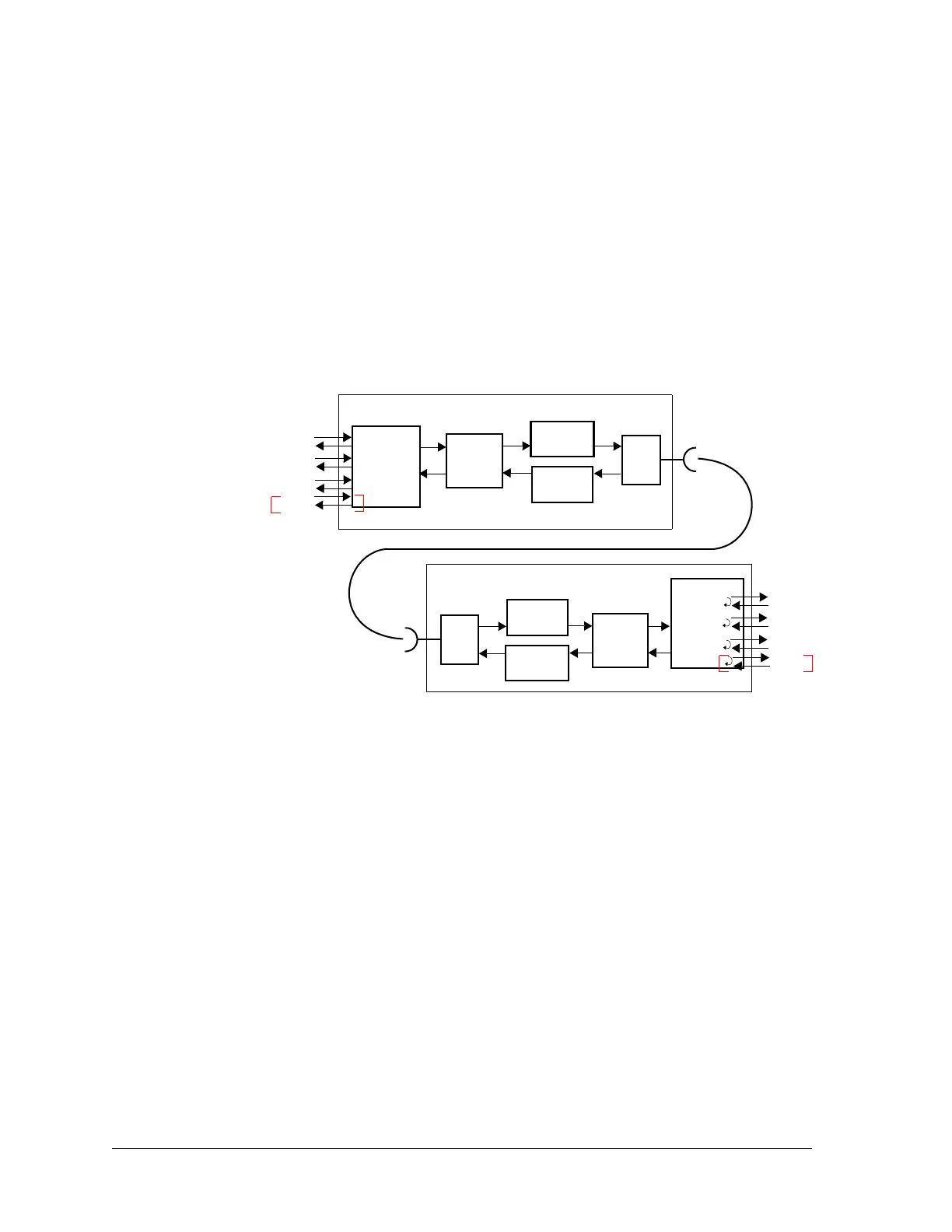

Figure 4-7: 3DS3/4DS3 remote loopback test
Hi Cap
Modem
ACU
Transmitter
Assembly
ACU
Receiver
Assembly
Local Terminal
Remote Terminal
Hi Cap
Modem
Transmitter
Assembly
Receiver
Assembly
HLM-3xDS3
or 4xDS3
DS3-1
DS3-2
DS3-3
Test set
HLM-3xDS3
or 4xDS3
DS3-1
DS3-2
DS3-3
DS3-4
DS3-4
