Constellation™ November 2003
11-6 Field-Replaceable Units

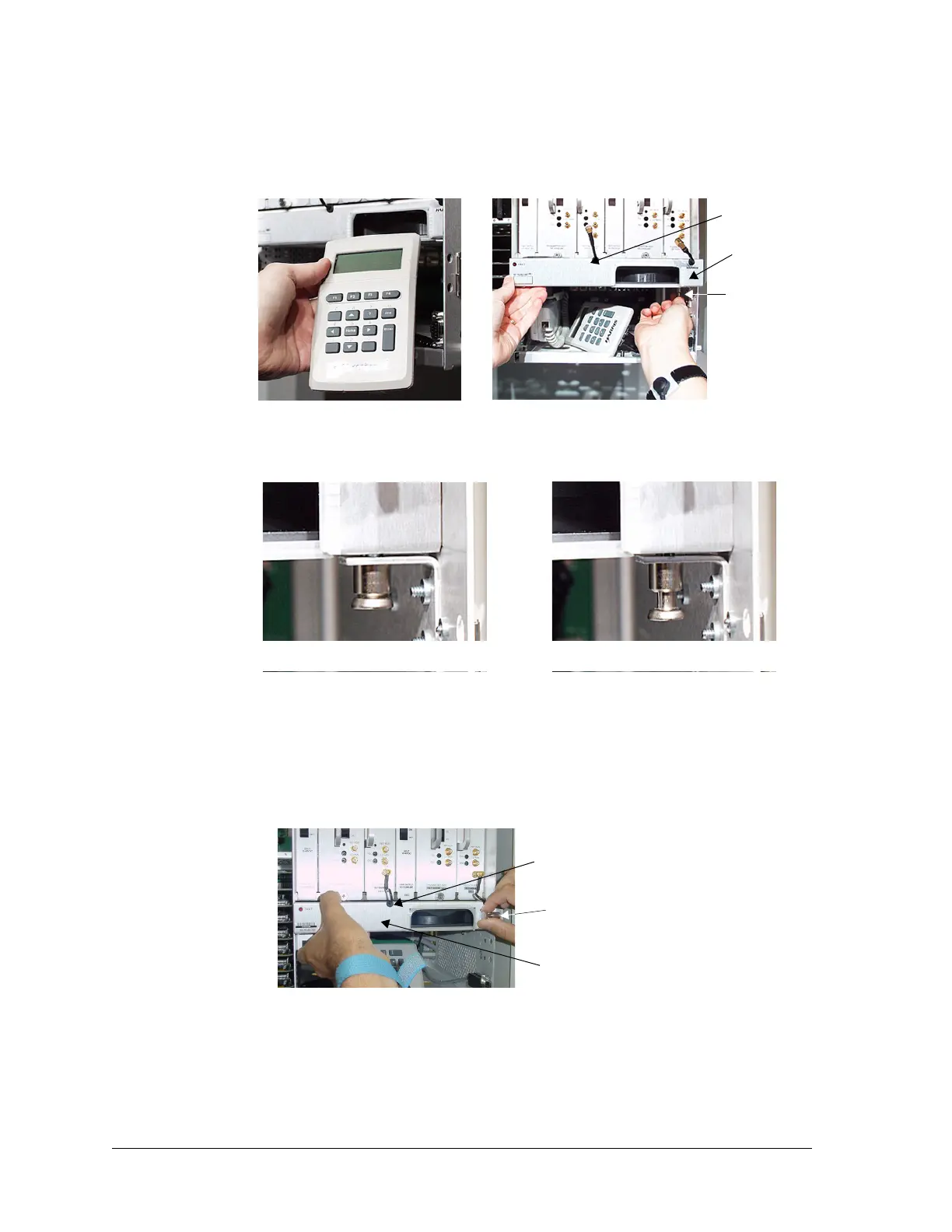

Figure 11-4: Removing the Keypad
Figure 11-5: Spring-loaded pin
2. The spring-loaded release pin is located on the right-hand side either
below the Fan assembly or in front of the front panel. See Figure 11-4 (b)
or Figure 11-6.
With your right hand, pull out the spring-loaded release pin, and rotate it
a quarter-turn to lock the pin. See Figure 11-5.
Figure 11-6: Fan Assembly with pin on right-hand side
3. Pull the grommets away from the Fan Assembly.
4. Press the IF cables up and away from the Fan Assembly, and carefully pull
out the Fan Assembly.
Spring-loaded
release pin
Fan
Assembly
(a) (b)
Grommet (2)
Locked position
Unlocked position
Spring-loaded
release pin
Fan Assembly
Grommet (2)
