Harris Constellation - Figure 11-1: Constellation Radio, Front View; Figure 11-2: Door Straps

Constellation™ November 2003
11-4 Field-Replaceable Units

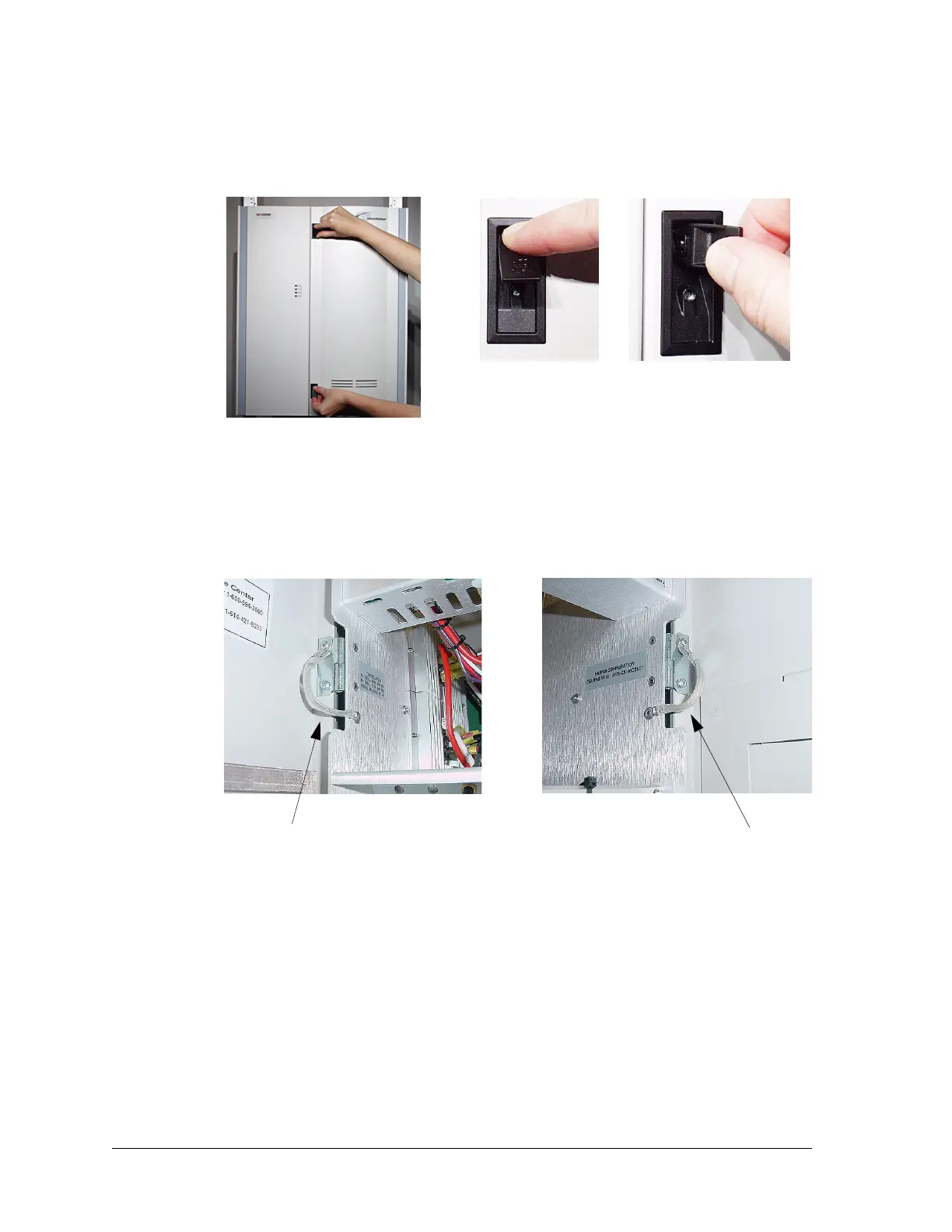

Figure 11-1: Constellation Radio, front view
2. The doors swing open 90 degrees.
3. For radios with straps (Figure 11-2) installed inside the door:
Pull the straps (on the left and right sides) to unfasten them.
Figure 11-2: Door straps
4. Lift up the doors to remove them from the card cage.
Left strap
Right strap
