2 Equipment Description
2.23 I/O Link Interface Cabling
132 HPM High-Performance Process Manager Service R688
Honeywell December 2020

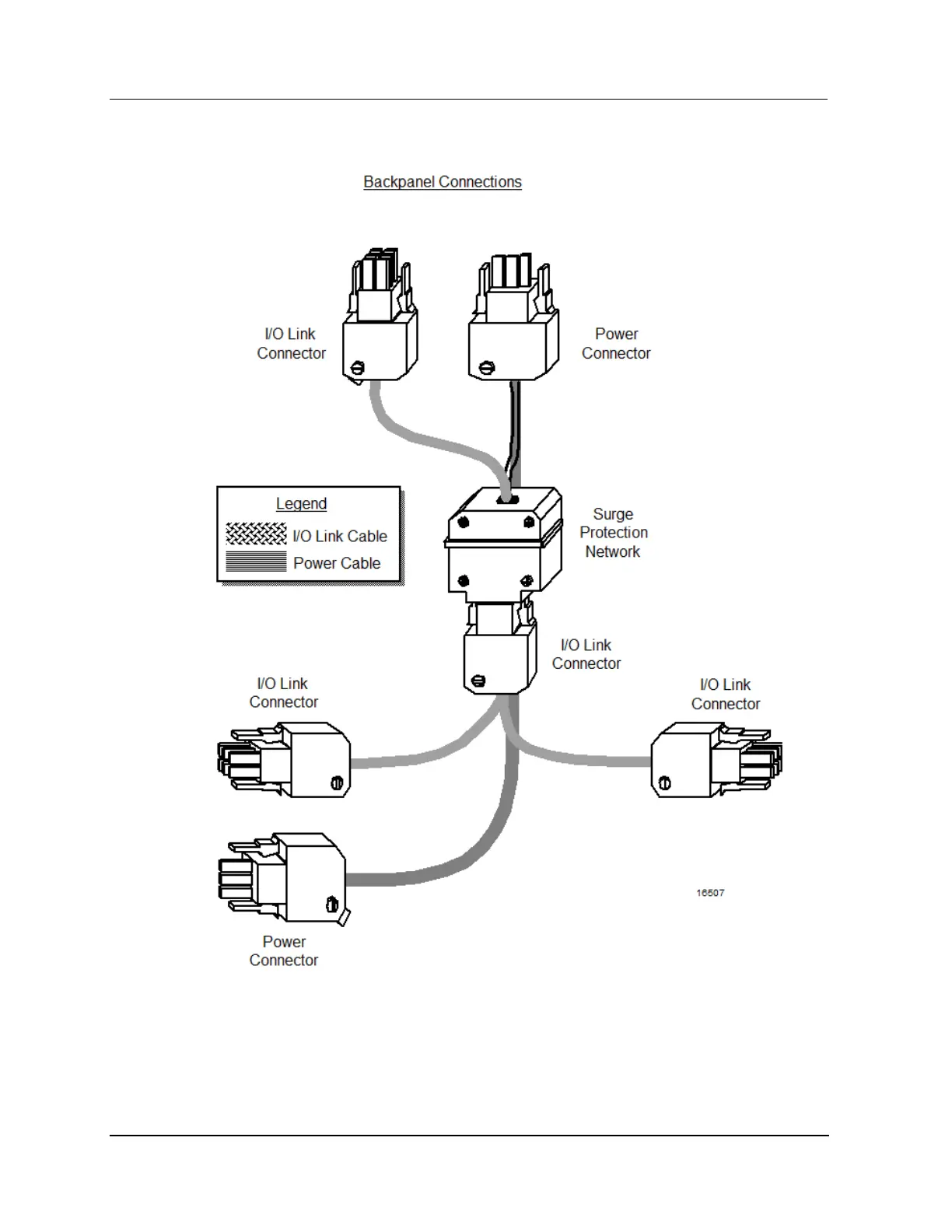

Figure 59 I/O Link Interface Cable Connection to Power Cable
Typical I/O Link and power cable connection
The following figure illustrates typical surge protection network power cable and I/O Link Interface
cable connections to the Power System and card files in a cabinet.
Figure 60 Typical Cabinet Surge Protection Network Cable Connections
