2 Equipment Description
2.13 Field Termination Assembly
R688 HPM High-Performance Process Manager Service 83
December 2020 Honeywell
Galvanic Isolation Module connectors
Figure 22 and Figure 23 illustrate the crimp pin-type and compression-type terminal connectors for the
Galvanically Isolated FTAs, respectively. Galvanically isolated FTA terminal connectors on the Galvanic
Isolation Modules have six terminals. Depending on the type of terminal connector, the terminals accept
size 0.3 to 3.5 mm
2
(12 to 22 AWG) wiring.
Crimp pin-type terminal connector
The following figure illustrates the crimp pin-type Galvanic Isolation Module terminal connector.

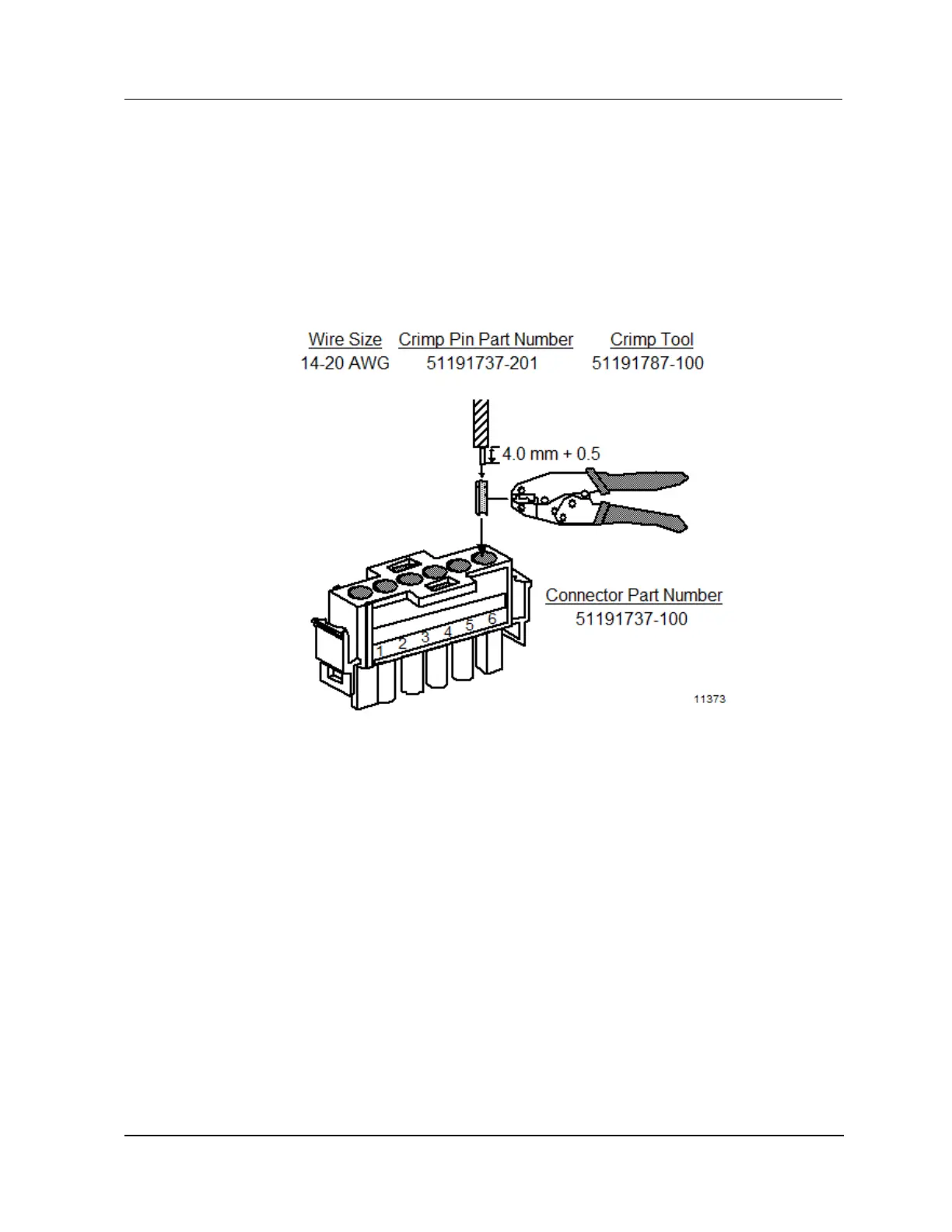

Figure 22 Crimp-Type Galvanic Isolation Module Terminal Connector
