2 Equipment Description
2.6 EHPM Card Files
R688 HPM High-Performance Process Manager Service 51
December 2020 Honeywell
Experion network, the firmware can be upgraded from a standalone PC loaded with EUCN Tools.
Firmware and instructions to update the firmware are provided with the Utilities & Load Modules media.

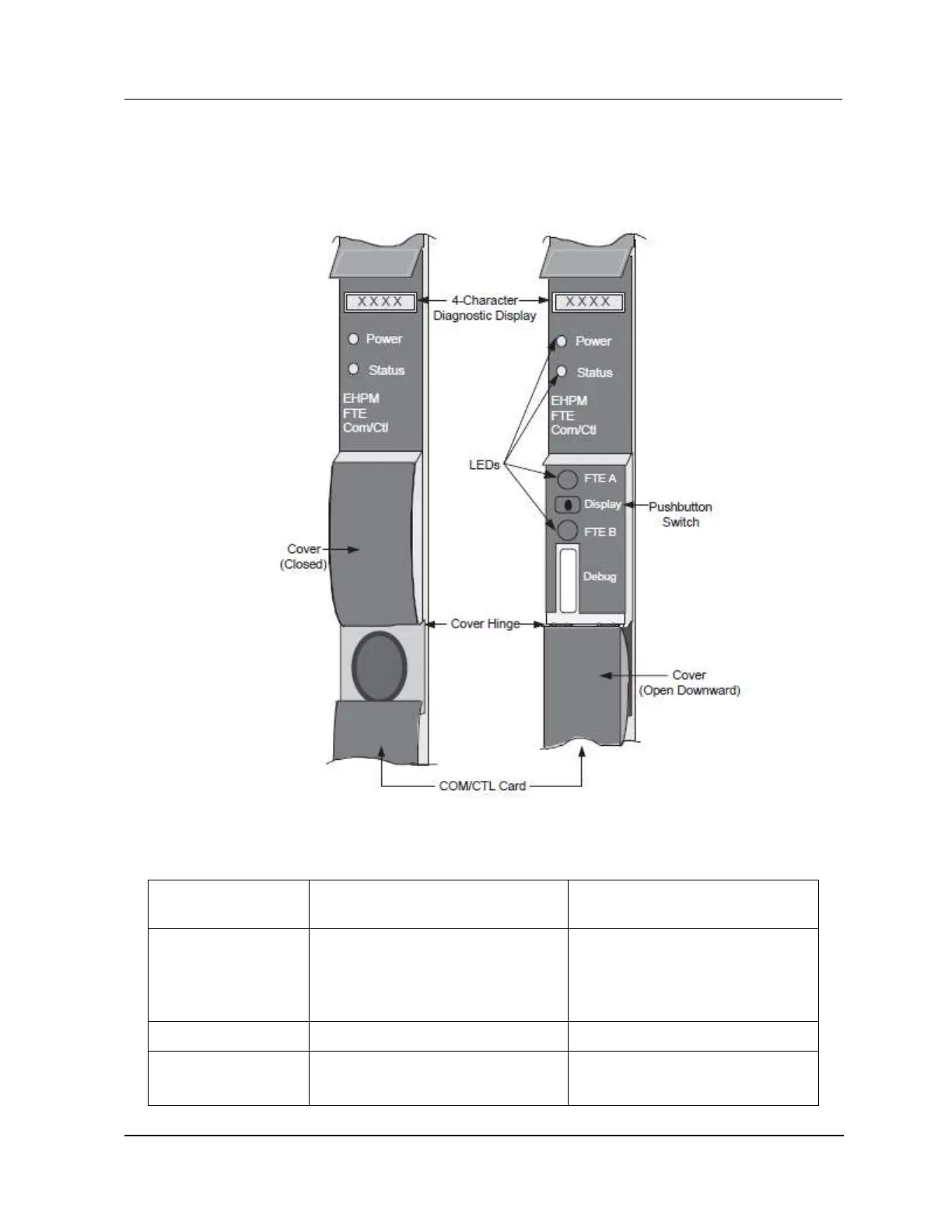

Figure 5.4 Enhanced High-Performance Comm/Control Card (Front Panel)
EHPM Front Panel LED display information
Table 2.2 EHPM Front Panel display indications
EHPM Front Panel
LED display
ENIM failed to authenticate EHPM.
Check $FTESTS2 schematic details
for the AUTH GROUP. There might
be a duplicate BOOTP server on the
network. Manual failover to backup
ENIM may be necessary.
Firmware load in progress.
Wait for firmware load to complete.
EHPM either has a duplicate FTE
Device Index, or duplicate PdTag, or
both duplicate FTE Device Index and
Identify the duplicate problem in the
FTE Community (using $FTESTS2
schematic or PC’s FTE Status
