2 Equipment Description
2.3 HPM Subsystem Overview
34 HPM High-Performance Process Manager Service R688
Honeywell December 2020
Nonredundant HPMM cabinet layout
The following figure is an illustration of an HPM cabinet that contains a nonredundant HPMM that is
installed in left most card slots of the lower 15-Slot card file. IOPs are installed in the remaining slots of
the lower card file and the 15-Slot card files above.

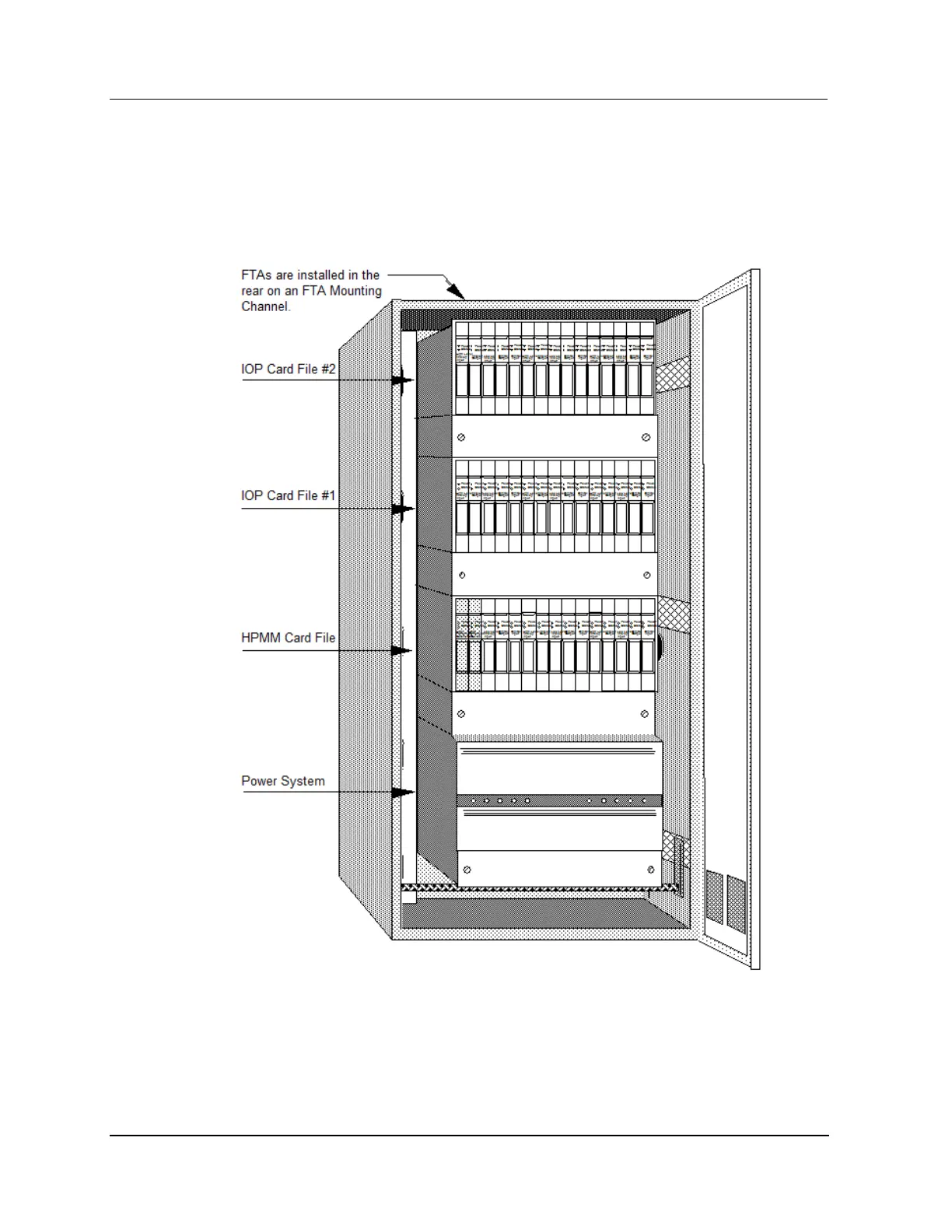

Figure 1 Cabinet Layout – HPM with Nonredundant HPMM
