Standard I/O Link Extender connections redundant HPMMs
The following figure illustrates the interconnections for a Standard I/O Link Extender in an
High-Performance Process Manager that contains redundant HPMMs.

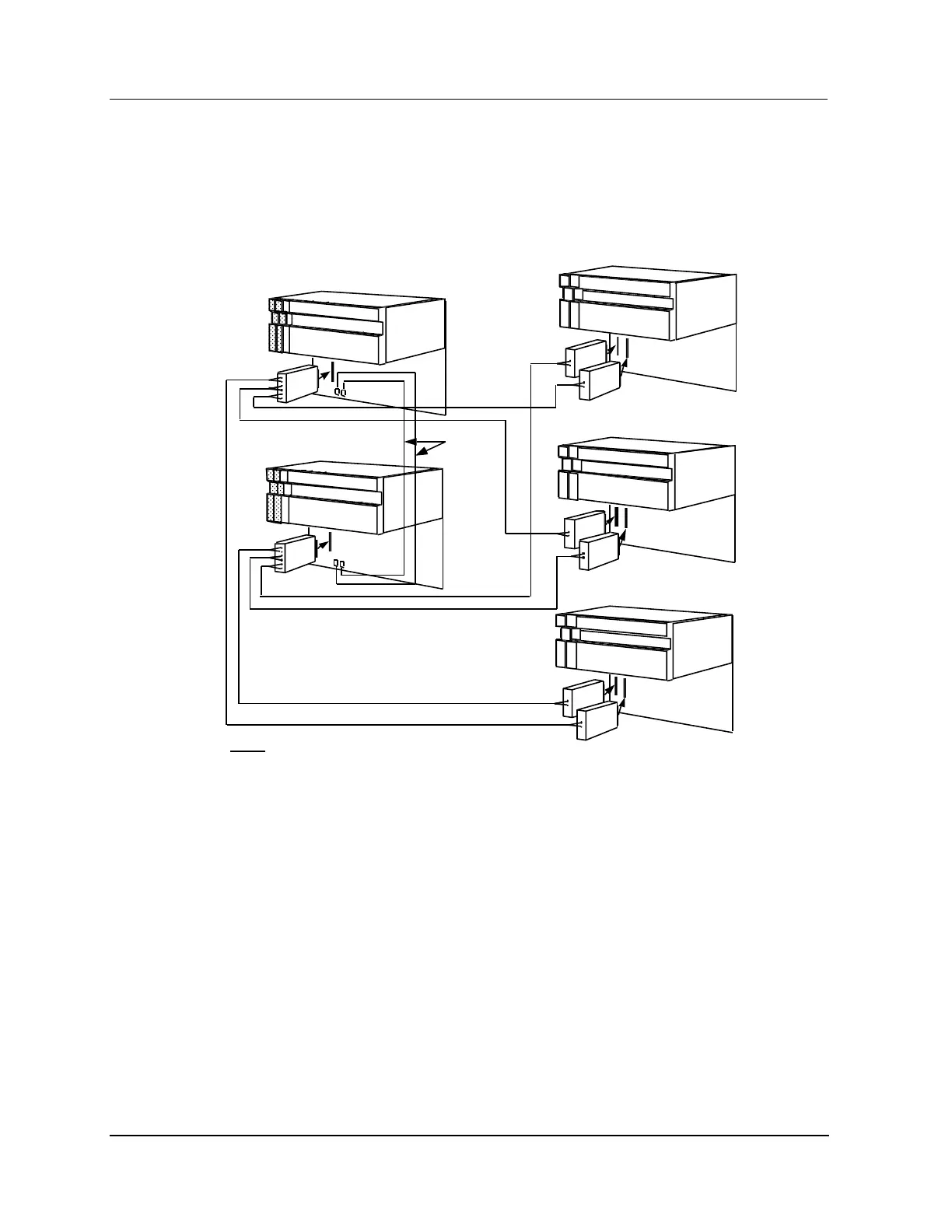

Figure 14 Standard I/O Link Extender Interconnections with Redundant HPMMs
32778
Remote Site 1
Redundant HPMM Card File
IOP Card FilesCentral Site
Primary HPMM Card File
Remote Site 2
Remote Site 3
B
A
A
B
B
A
NOTE
The following High-Performance Process Manager subsystem configuration is assumed.
1. The lower HPMM card file is configured as card file #1 (I/O Link Address of 0).
2. The upper HPMM card file is configured as card file #2 (I/O Link Address of 1).
3. Remote Site #1's IOP card file is configured as card file #3 (I/O Link Address of 2).
4. Remote Site #2's IOP card file is configured as card file #4 (I/O Link Address of 3).
5. Remote Site #3's IOP card file is configured as card file #5 (I/O Link Address of 4).
B
A
J42
J43
I/O Link
Cables
J42
J43
