Honeywell HPM User Manual

3 UCN Status Displays
3.4 Display Operation
R688 HPM High-Performance Process Manager Service 209
December 2020 Honeywell
SLOT SUMMARY Target
Selection of the SLOT SUMMARY command target on the UCN Status display as shown in Figure 107
invokes the Slot Summary Menu display. The point type of interest is selected on the display. The
selection provides a Slot Summary display for the point type that displays the contents (point ID,
descriptor, and active/inactive state) in the chosen HPM.
Choose the HPM of interest on the UCN Status display selection grid and then select the SLOT
SUMMARY target.

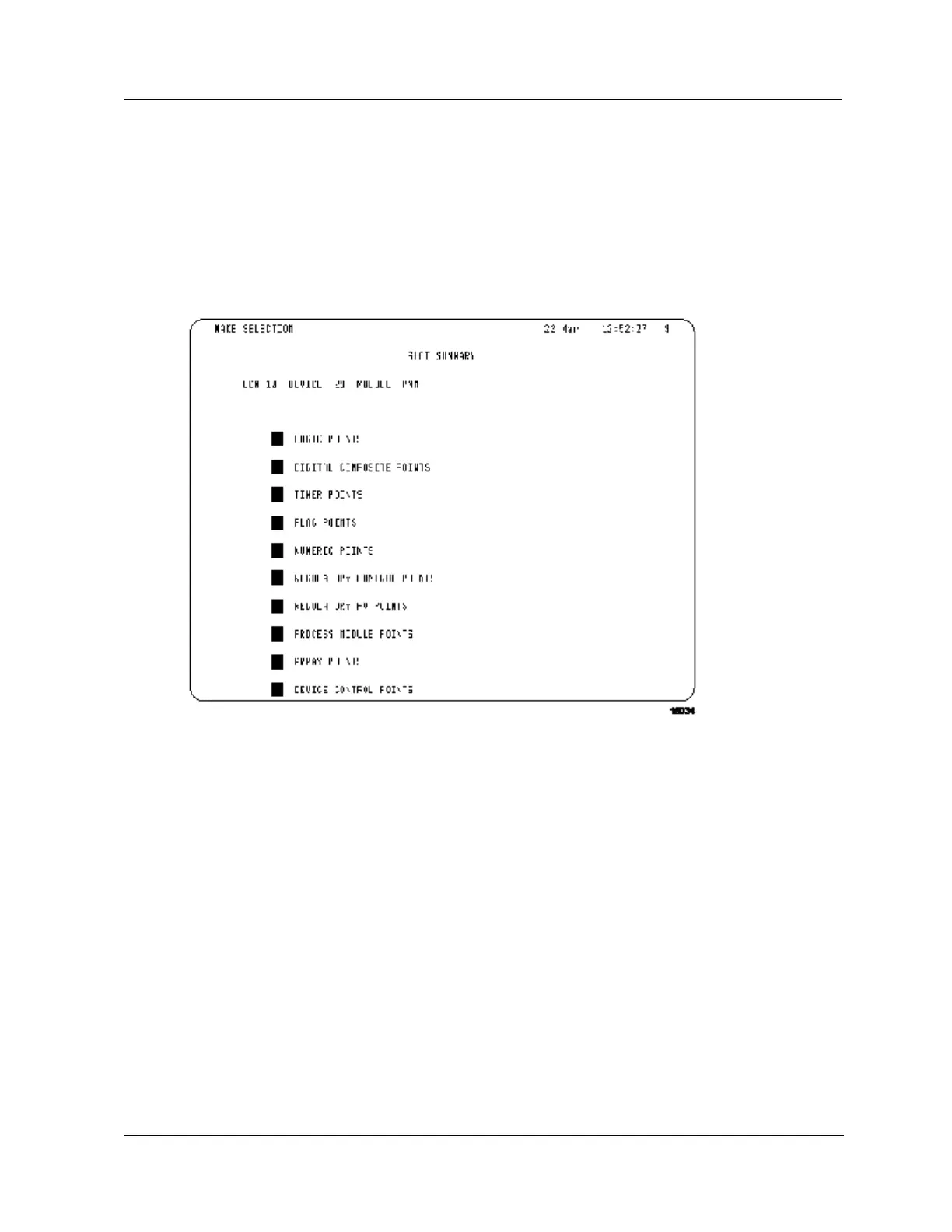

Figure 107 UCN Status Display – SLOT SUMMARY Target Selected
Not applicable for NIM
The SLOT SUMMARY target functions are not applicable when a NIM is chosen on the UCN Status
display.
