2 Equipment Description
2.6 EHPM Card Files
R688
HPM High-Performance Process Manager Service
45
December 2020
Honeywell
15
-Slot EHPM
card file
The following figure is an il
lustration of a 15
-Slot EHPM ca
rd
file.

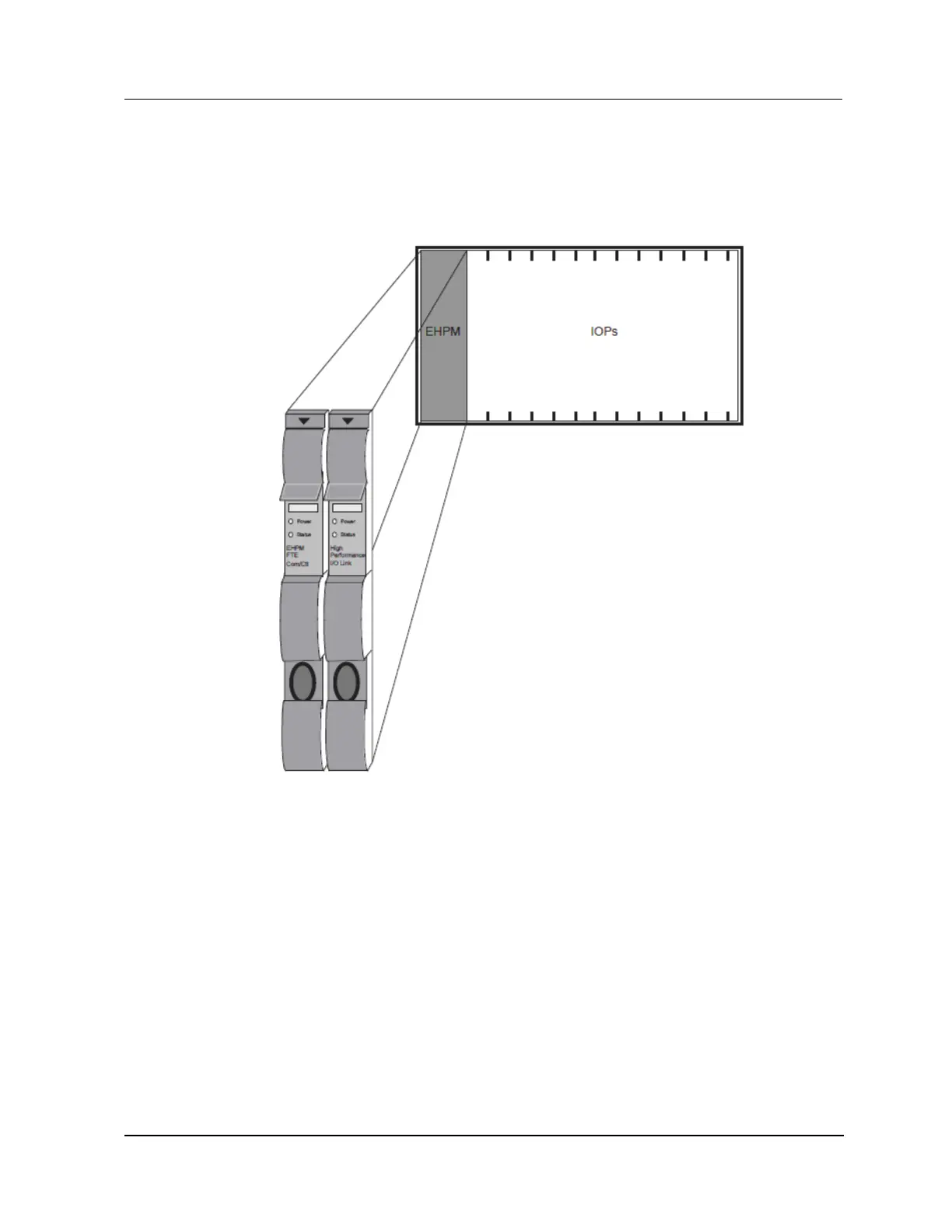

Figure 5.1 15-Slot E
HPM Card File
