3 UCN Status Displays
3.8 IOP Detail Status Displays
288 HPM High-Performance Process Manager Service R688
Honeywell December 2020
DISABLE CALIBRATN target

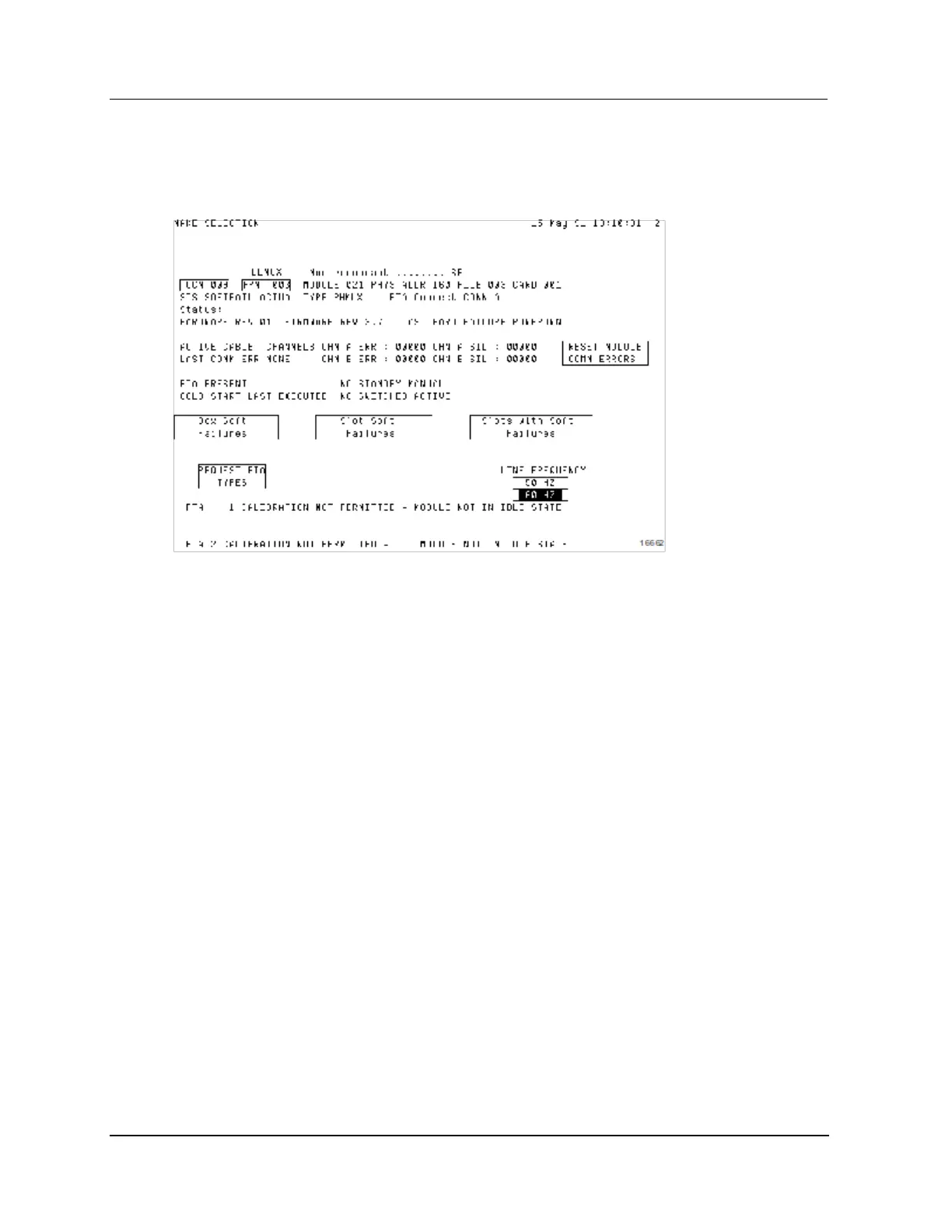

Figure 169 Remote Hardened Multiplexer IOP Detail Status Display – DISABLE
CALIBRATN Target Selected
Unique display information
Some of the information provided by an IOP Detail Status display is unique for the type of IOP. The
definitions that follow provide information that is unique to the RHMUX IOP Detail Status display.
Unique RHMUX IOP Detail Status targets
The RHMUX IOP Detail Status display has unique data and targets as shown in the following figure.
The REQUEST FTA TYPE target provides a means of identifying the type of FTA, presently a
thermocouple (TC) FTA, that is connected to each Power Adapter channel. Selecting the target produces
status displayed as FTA 1 TYPE and FTA 2 TYPE with the type of FTA attached to each channel.
