2 Equipment Description
2.9 Field Termination Assemblies for IOP
62 HPM High-Performance Process Manager Service R688
Honeywell December 2020

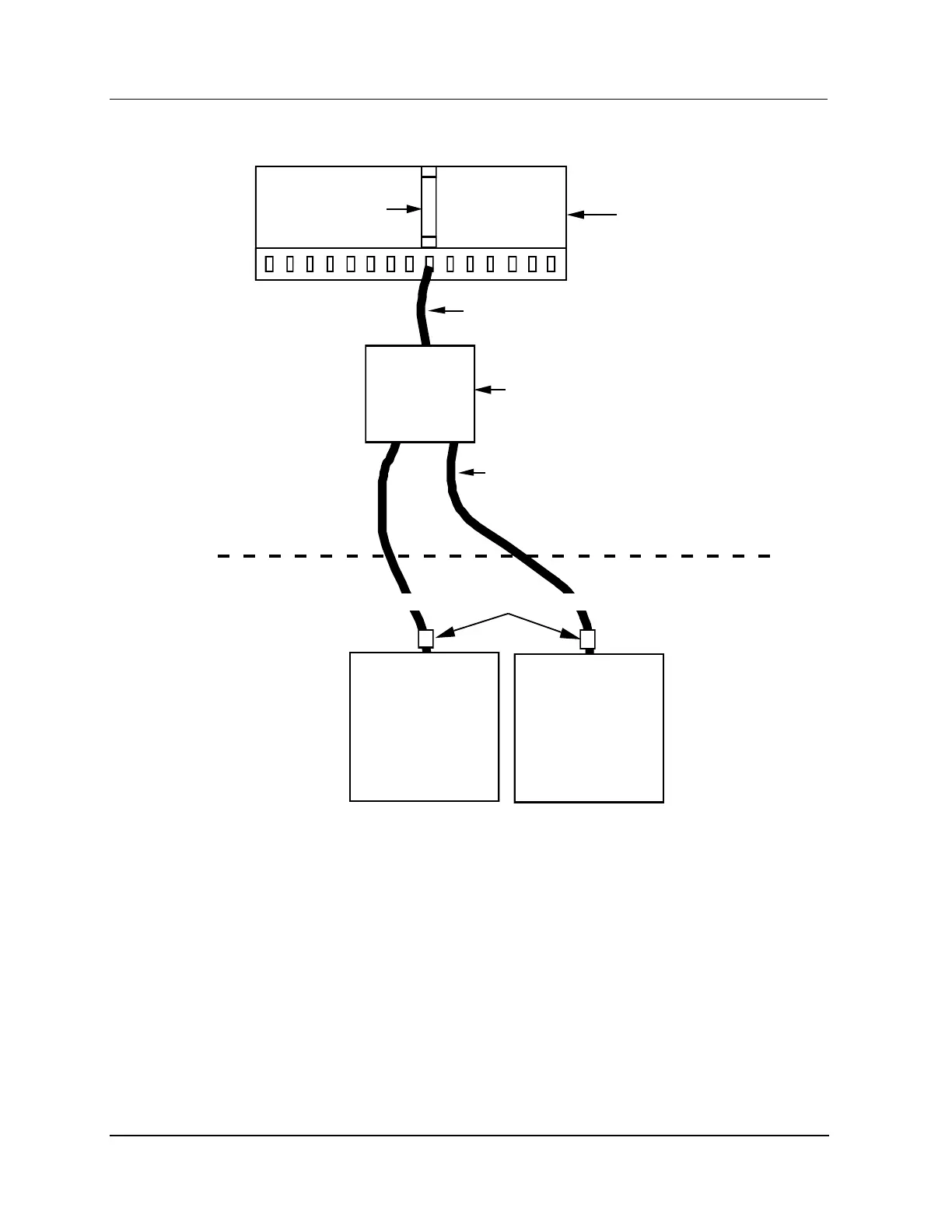

Figure 10 Remote Hardened Low Level Multiplexer Interconnections
16666
A-Size
Card File
Model
MC-GRPA01
RHMUX GI/IS
Power Adapter
J2
J3
Model MC-PRHM01
RHMUX IOP
Model MC-GRPA01
RHMUX TC FTA
Model MC-GRPA01
RHMUX TC FTA
J1
Safe Area
Hazardous Area
TB 2 TB 2
Model MU-KLXxxx Indoor Cable
[500 meters (1640 feet) Maximum Length]
or
Model MU-KLOxxx Outdoor Cable
[2000 meters (6560 feet) Maximum Length]
Ferrite bead(s) for CE Compliance applications
Model MU-KFTAxx or MU-KFTSxx
IOP to FTA Cable
[50 meters (164 feet) Maximum Length]
RHMUX Thermocouple FTA
One or two Thermocouple (TC) type RHMUX FTAs can be connected to a RHMUX IOP through either
an Intrinsically Safe (IS) or Non-Incendive (NI) Power Adapter assembly.
FTA and Power Adapter installation
The Power Adapter provides power to the FTA(s) from the IOP. Both types of Power Adapters can be
installed on an FTA Mounting Channel. The FTA’s dimensions (size) are non-standard and prevent
installing the FTA on a standard FTA Mounting Channel.
