3 UCN Status Displays
3.7 HPMM Detail Status Displays
254 HPM High-Performance Process Manager Service R688
Honeywell December 2020
Control Patches display
The HPMM Control processor maintains a 256-word patch area. This area can be displayed by selection
of the CONTROL PATCHES target. The Control Patches display is composed of four pages showing
64 words per page. Page 1 is shown in the following figure. To page forward in the display, the user
selects the NEXT PAGE target. Paging backwards is not permitted. The page forward function has a
wraparound feature.

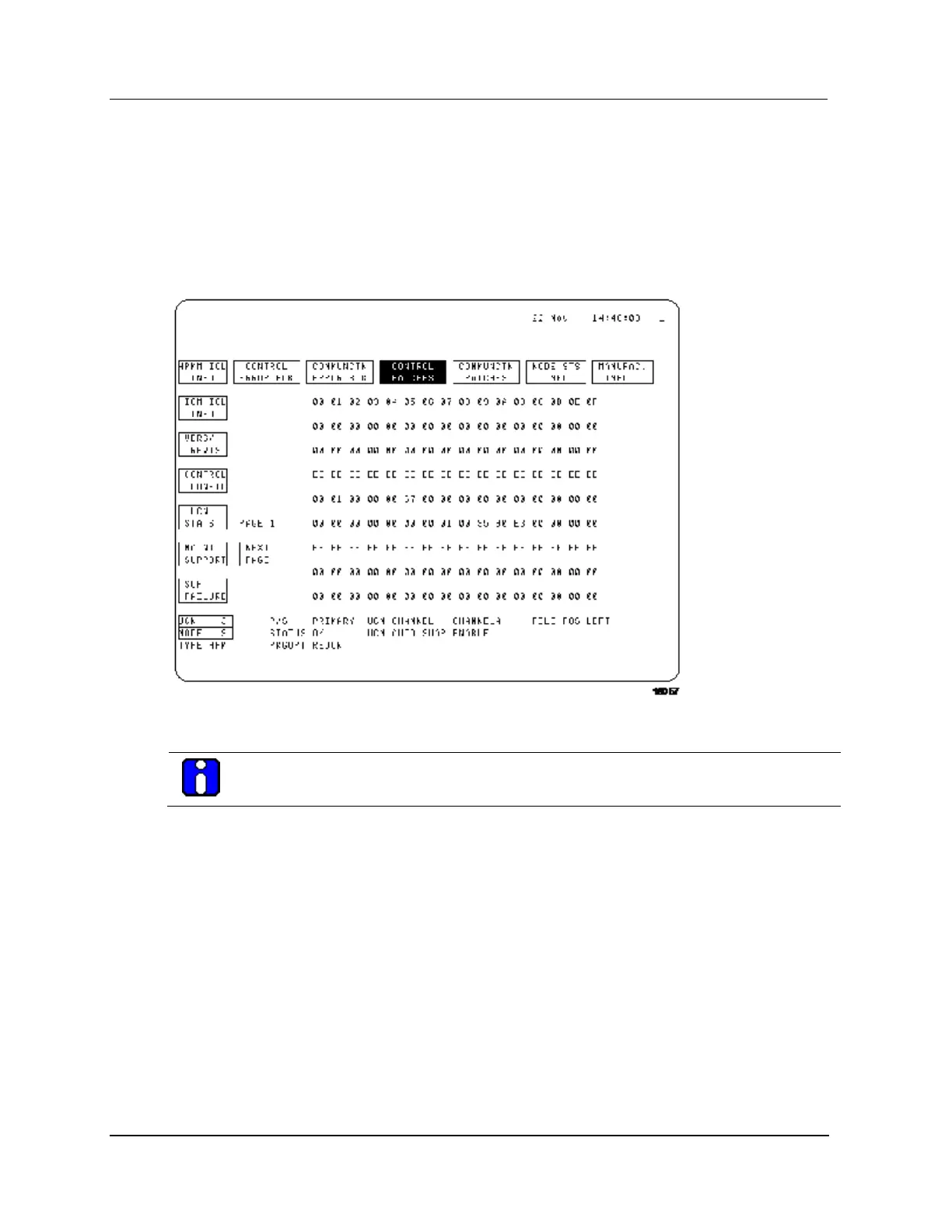

Figure 135 HPMM Control Patches Display
ATTENTION
The Control Patches are used are used for Honeywell maintenance purposes only.
