3 UCN Status Displays
3.3 Detail Status Display Selection Procedures
R688 HPM High-Performance Process Manager Service 185
December 2020 Honeywell
HPMM Detail Status Display procedure
Use the following procedure to select an HPMM Detail Status display.
Step
Action
1
Depress the <SYST STAT> (System Status) key on the console to invoke the System
Status display. The System Status display is shown in Figure 88.
2
Choose the NIM node on the display grid and then select the NTWK/HWY target on the
System Status display for the network you wish to examine to invoke the UCN Status
display. The UCN Status display is shown in Figure 89.
3
Choose the HPM of interest on the display grid and then select the DETAIL STATUS
target on the UCN Status display to invoke the HPM Status display. The HPM Status
display is shown in Figure 92.
4
Choose the HPMM (primary or secondary) of interest on the display grid and then
select the DETAIL STATUS target on the HPM Status display to invoke the primary or
secondary HPMM Detail Status display. The primary and secondary HPMM Status
displays are shown in Figure 94 and Figure 95, respectively.

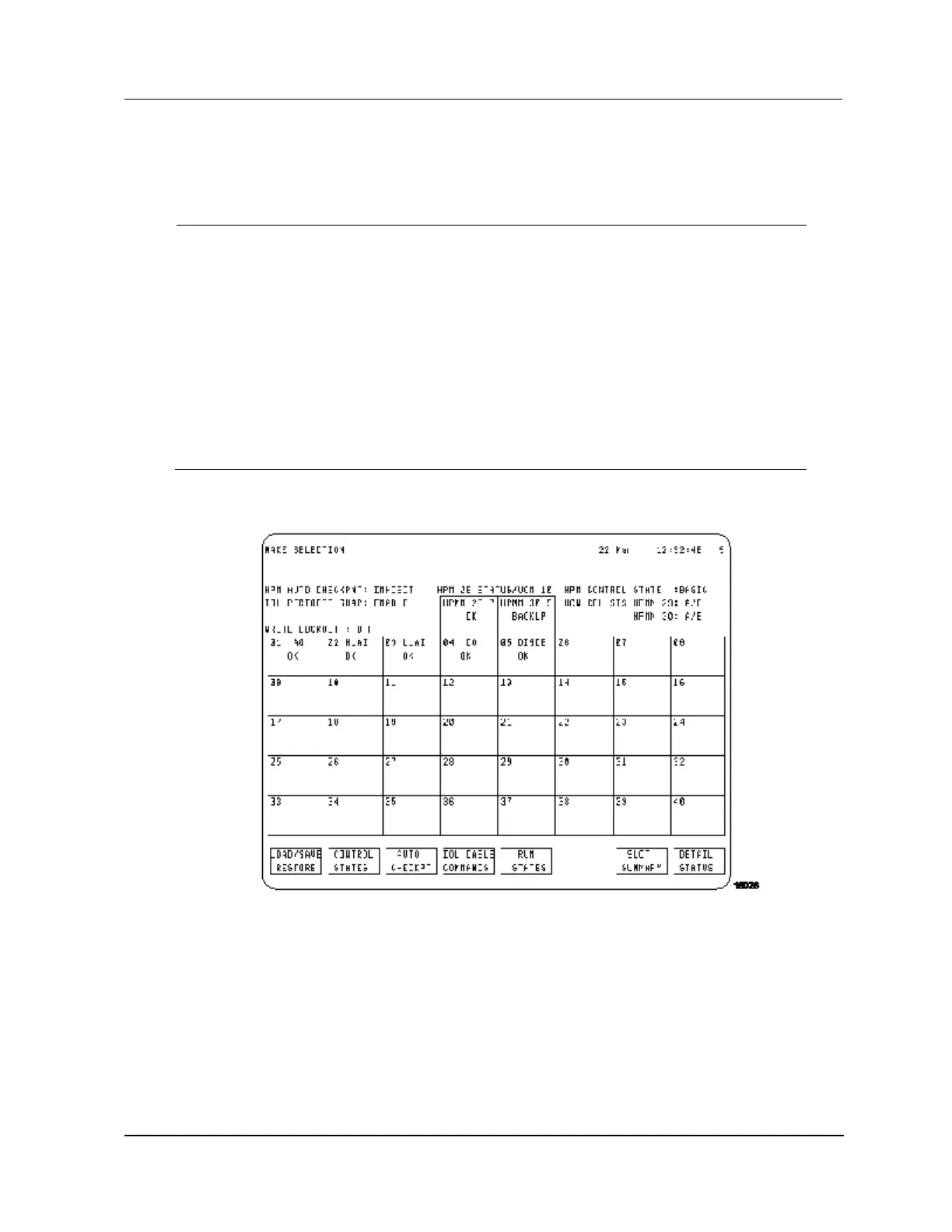

HPM Status display
Figure 92 HPM Status Display
