Chapter 6, Call Processing Subsystem
The CALL CONTROL Screen

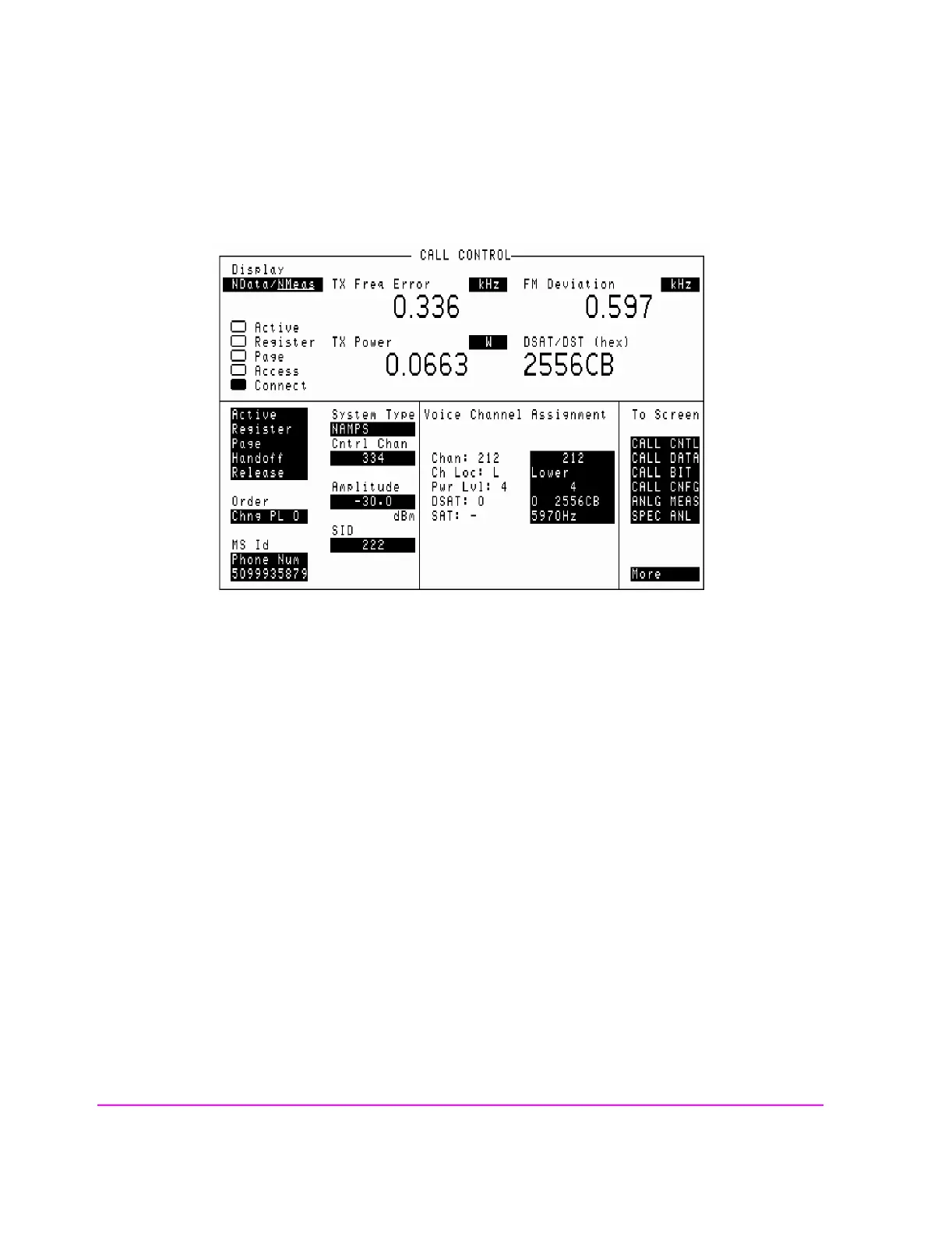

Figure 21 NAMPS CALL CONTROL Screen with Meas Selected
DSAT:
This field is displayed only when the system type is set to NAMPS.
DSAT: is divided into two field:
• The left-hand field displays the DSAT control message identifier being broadcast by
the Test Set. The DSAT channel number identifier is displayed only when the Test Set’s
Connected annunciator is lit (connected state). A “-” is displayed if a mobile station
is not actively connected on a voice channel.
• The right-hand field (highlighted field) is used to select one of the seven valid DSAT
sequences to be used on the voice channel (See Chan: field description, on page 125
for more information about the voice channel.) The DSAT channel number is followed
by the corresponding DSAT sequence as defined in IS-88.
