HP 8920A - TESTS (Test Parameters); The TESTS (Test Parameters) Screen

527
Chapter 22, Tests Screen
TESTS (Test Parameters)
TESTS (Test Parameters)

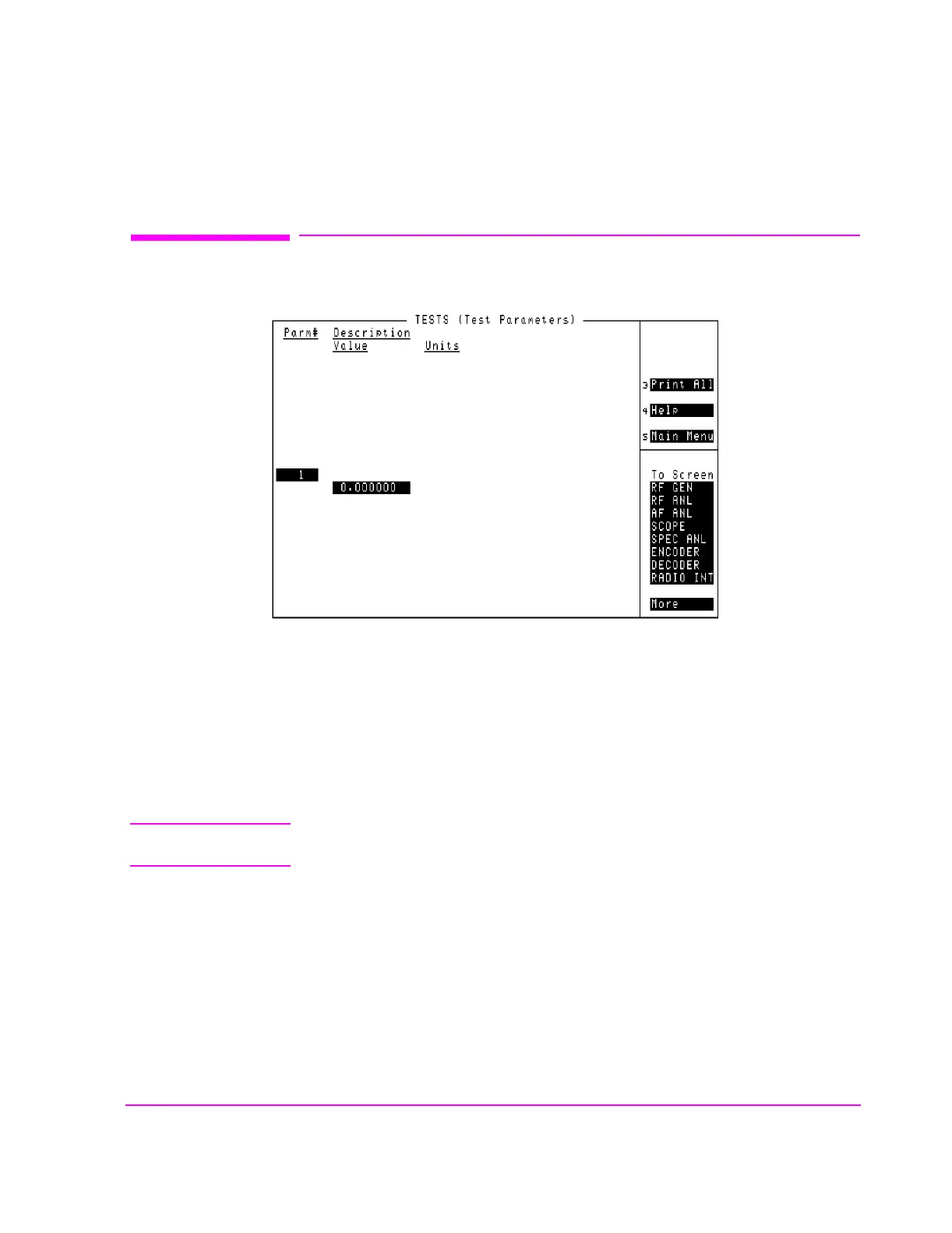

Figure 135 The TESTS (Test Parameters) Screen
Test Parameters are used to define operating and testing characteristics to match
those of the radio being tested (audio-load impedance, audio power, power-supply
voltage, and so forth).
By selecting the
Parm#, Value, or Units fields and using the data and units
keys, you can modify or enter parameters.
NOTE: The tests you select determine the parameters that are required. Your radio test documentation
provides details if you are using HP 11807 software.
Print All
This field allows you to print the Test Set’s screen image.
Main Menu
Selecting this field returns you to the TESTS (Main Menu) screen.
tstparam.wmf
