Chapter 6, Call Processing Subsystem
CALL BIT Screen Message Field Descriptions
NAWC
This field displays the number of additional words coming.
OHD
This field displays the overhead message type.
• A ‘100’ indicates a global action message.
• A ‘110’ indicates that this is the first word of the system overhead parameter message.
• A ‘111’ indicates this is the second word of the system parameter overhead message.
Parity
Parity field. The contents of the Parity field cannot be set by the user. The Test Set
calculates the parity bits.
SPC WORD2 Message Fields

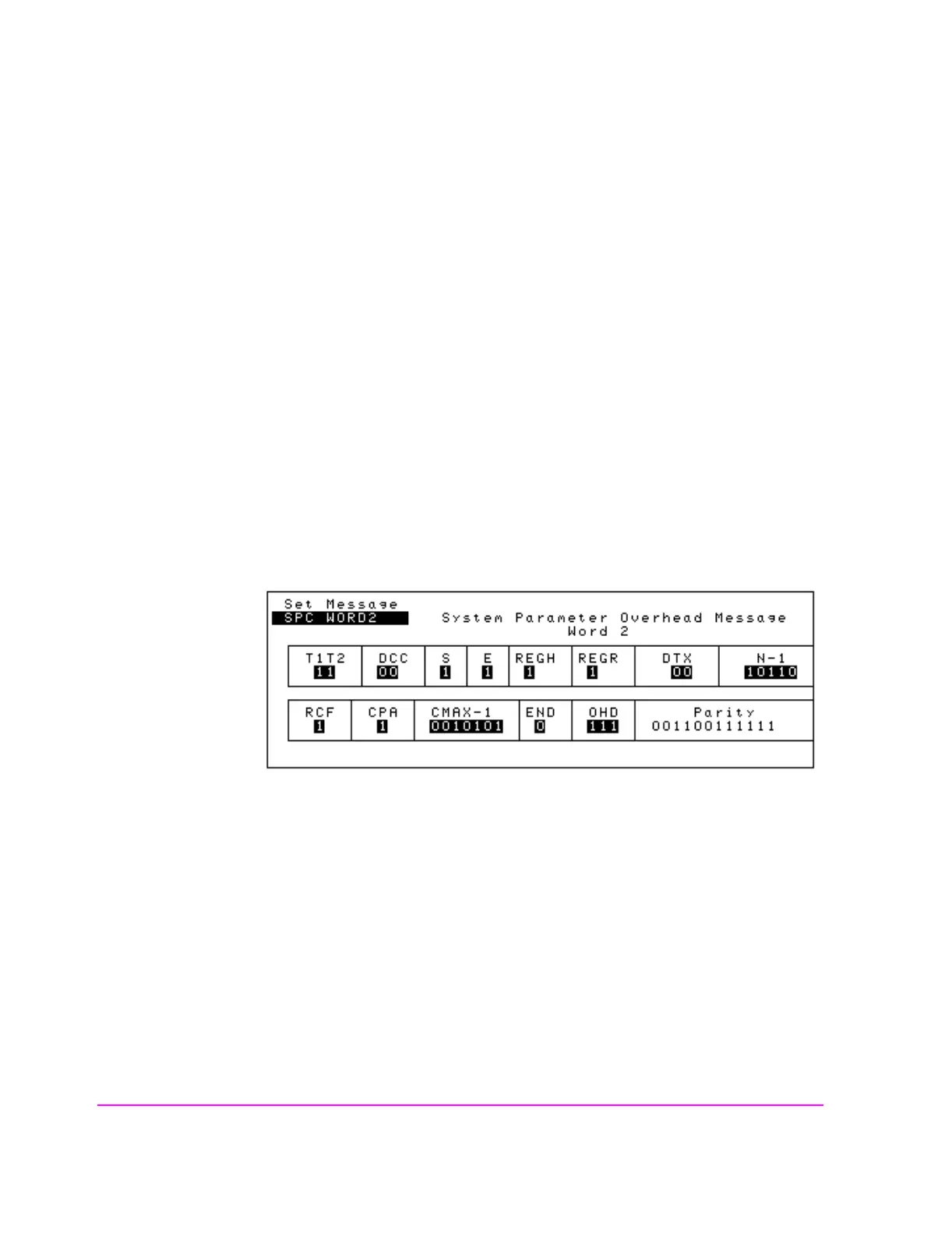

Figure 38 SPC WORD2 Message Fields
T1T2
This field identifies the received message as an order confirmation, an order, or a
called address message.
DCC
Digital color code field.
