HP 8920A - Fvcuniqch Message Fields

To Next Page

To Previous Page

230

S:\HP892XX\USRGUIDE\manual\callscrn.fb

Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

FVCUniqCh Message Fields

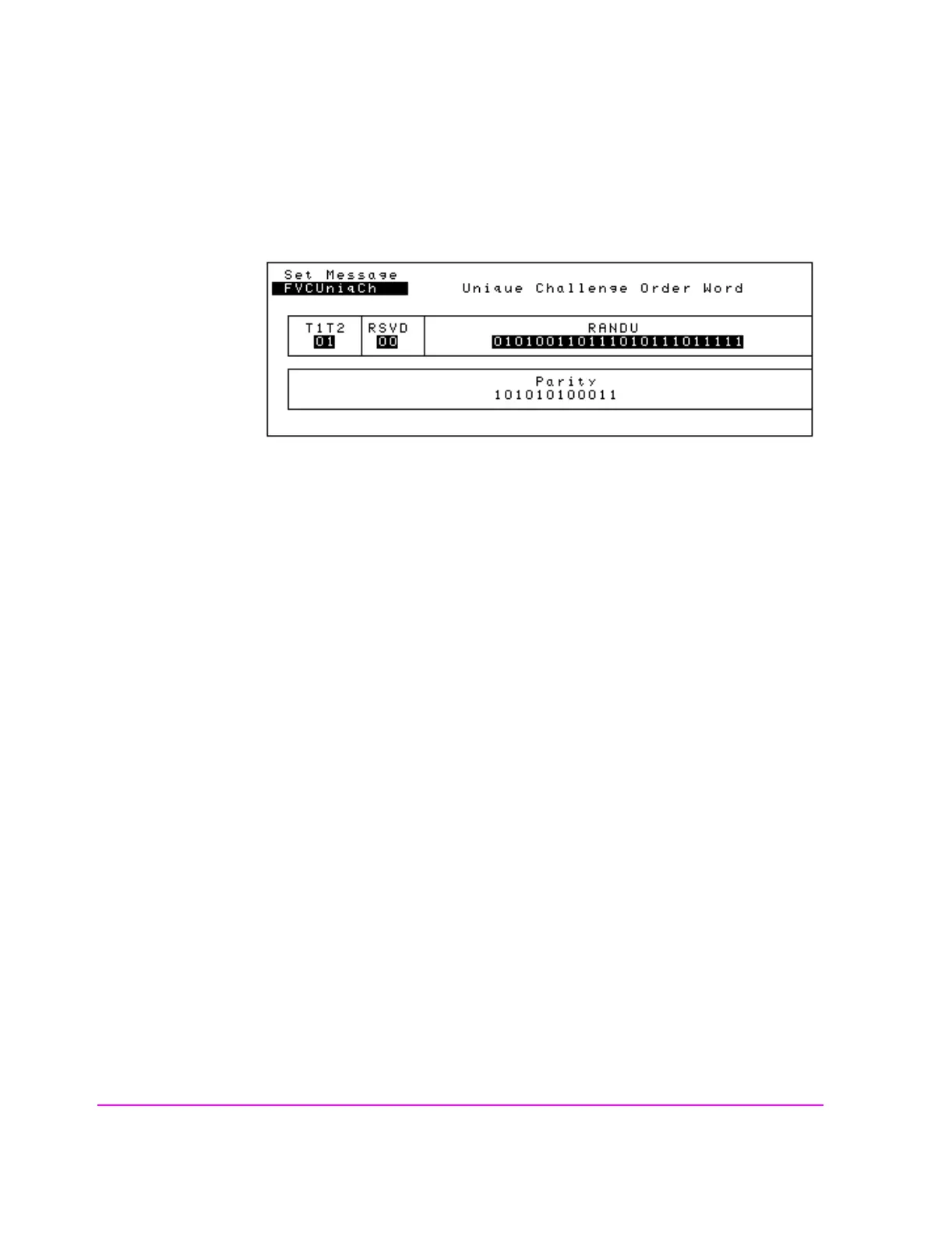

Figure 59 FVCUniqCh Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

RSVD

Reserved for future use.

RANDU

The 24 bit random number issued by the base station in the Unique Challenge

Order.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.
