229

Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

FVCBSCon Message Fields

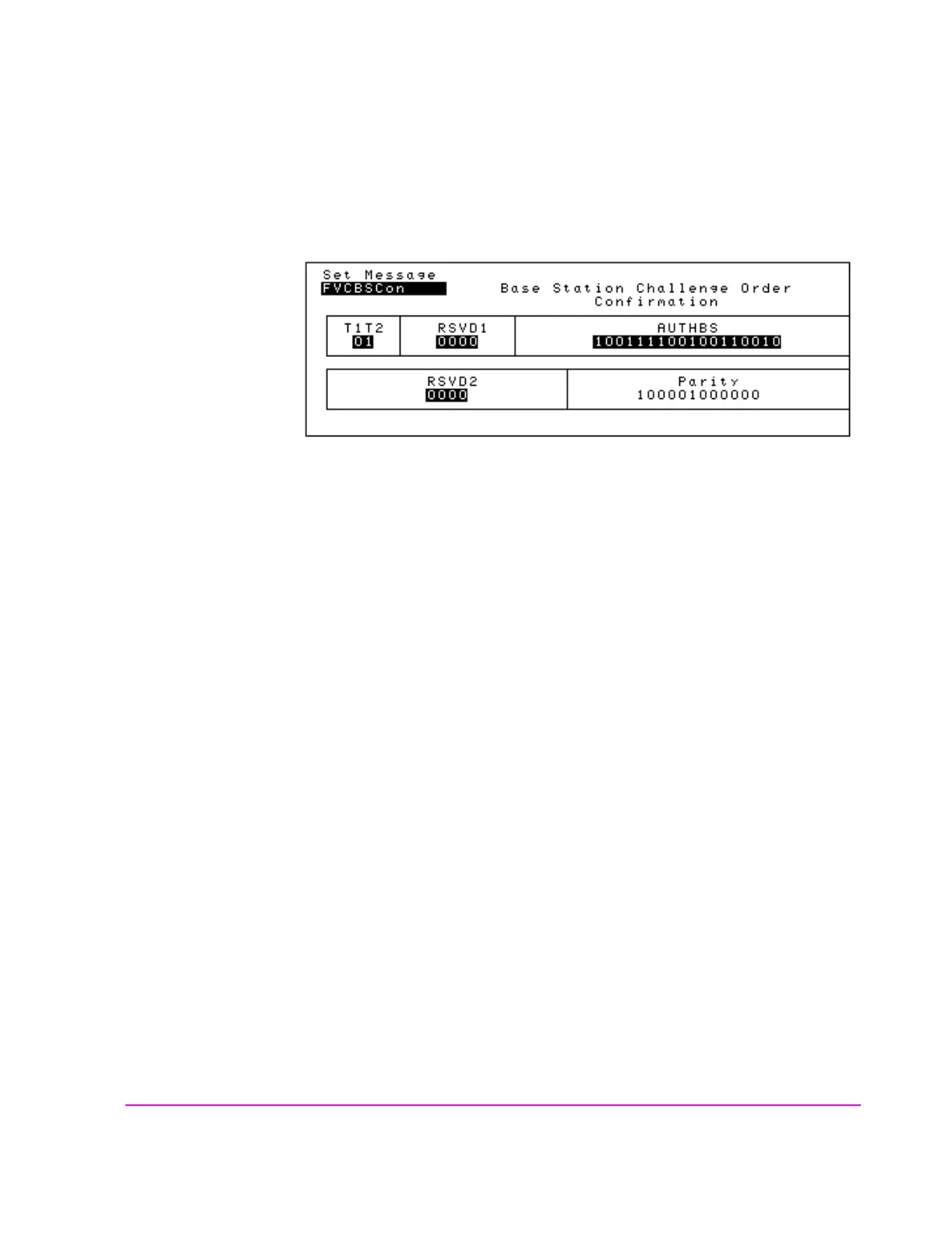

Figure 58 FVCBSCon Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

RSVD1

Reserved for future use.

AUTHBS

Output response of the authentication algorithm initiated by the Base Station

Challenge order.

RSVD2

Reserved for future use.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.
