HP 8920A - FVC O Mes Message Fields

To Next Page

To Previous Page

215

Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

MIN2

Second part of the mobile identification number field.

VMAC

This field displays the voice mobile attenuation code. It shows the mobile

station’s power level associated with the designated voice channel.

CHAN

Channel number field. Indicates the designated voice channel.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.

FVC O Mes Message Fields

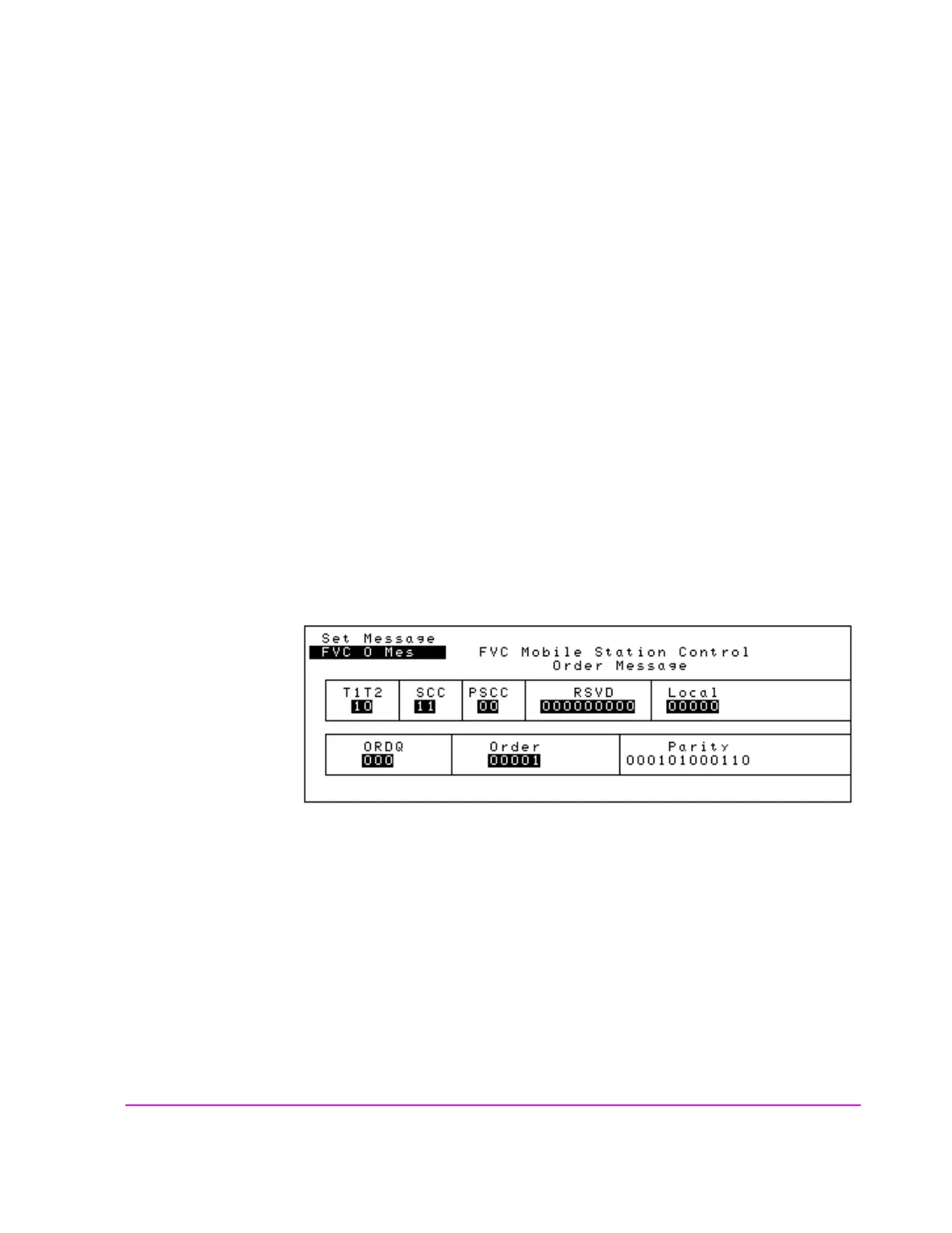

Figure 46 FVC O Mes Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

SCC

SAT color code for new channel.
