HP 8920A - FVC SSD2 Message Fields

To Next Page

To Previous Page

227

Chapter 6, Call Processing Subsystem

CALL BIT Screen Message Field Descriptions

FVC SSD2 Message Fields

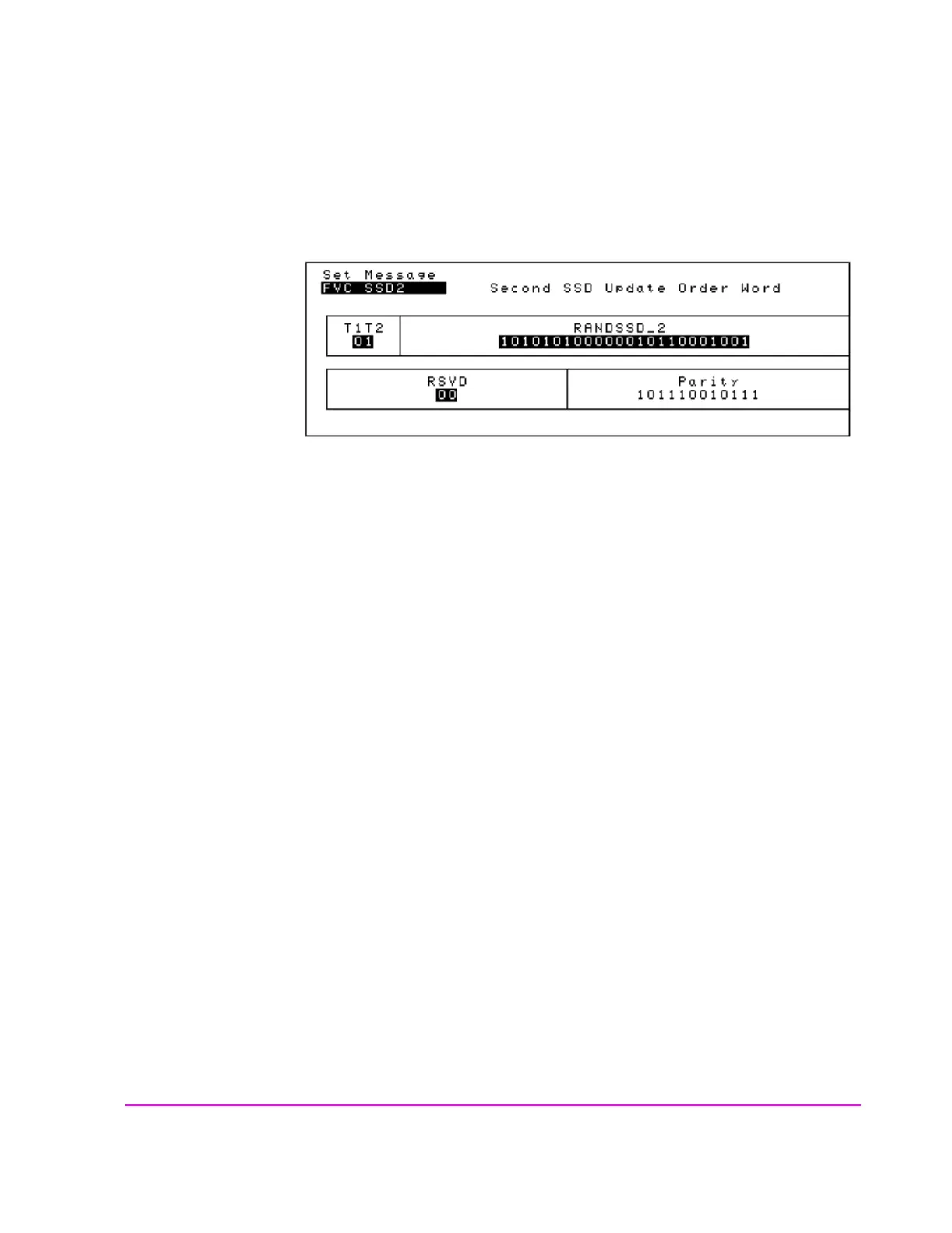

Figure 56 FVC SSD2 Message Fields

T1T2

This field identifies the received message as an order confirmation, an order, or a

called address message.

RANDSSD_2

The subsequent 24-bits (following RANSSSD_1) of the random number issued by

the base station in the SSD Update Order.

RSVD

Reserved for future use.

Parity

Parity field. The contents of the Parity field cannot be set by the user. The Test Set

calculates the parity bits.
